点击放大查看
SN74LVC2G74DCTR
| 制造商 | Texas Instruments Incorporated |
| 描述 | Flip Flop D-Type Pos-Edge 1-Element 8-Pin SSOP T/R IC D-TYPE POS TRG SNGL SM8 Flip Flops Single Pos Edge Trig IC, FLIP-FLOP, D TYPE, SMD, SSOP8 IC: digital; D flip-flop, positive edge trigger; SSOP8 Single Positive-Edge-Triggered D-Type Flip-Flop with Clear and Preset 触发器 IC, 8针 SSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-13273-2 | 产品类别 | Flip Flops |
| 标准包装数量 | Tape & Reel, Cut Tape | 工厂包装数量 | 3000 |
| 标准封装名称 | SSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 输出端 | No | 电压 | 1.8 2.5 3.3 5 |
| 频率 | 200 MHz | 输入类型 | Single-Ended |
| 逻辑类型 | LVC | 输出类型 | Differential |
| 输入信号 | Single-Ended | 输出信号 | Differential |
| 位数 | 1 | 额定电压 | 1.8|2.5|3.3|5 V |
| 时钟频率 | 200MHz | 最大频率 | 200 MHz |
| 输出电流 | :32mA | 输入数量 | 1 |
| 供电电压 | 1.65 V ~ 5.5 V | 输出数量 | 1 |
| 传播延迟 | :4.1ns | 通道数量 | 1 |
| 元件数量 | 1 | 最大额定电流 | Catalog |
| 输出1频率 | 150 | 施密特触发器输入 | Positive-Edge |
| 最小供电电压 | 1.65 V | 传播延迟（最大） | 14.4 |
| 传播延迟时间 | 4.1ns | 静态电流（最大） | 0.01 |
| 输出高/低电流 | 32mA, 32mA | 每元件位数 | 1 |
| 输出数量与类型 | 0 | 输出源/灌电流 | 32/-32 |
| 传播延迟 tpLH / tpHL（最大） | 13.4 7.1 5.9 4.1 | 共模瞬态抗扰度（最小） | Commercial |
机械参数
| 宽度 | 2.9(Max) | 重量 | 0.000825 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SSOP | 冷却的封装 | SSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.15(Max) |
| 包装数量 | SSOP | 位数 | 8 |
| 外壳尺寸-插件 | 1.2(Max) | 开关驱动电平 | Positive-Edge |
产品信息
| SPG | 3000 | 类型 | D-Type |
| 系列 | SN74LVC2G74 | 工艺（或'制程'，根据具体值如CMOS） | CMOS |
| 功能 | D-Type | 极性 | Inverting/Non-Inverting |
| 软件 | SCES203O | 基本单元 | :74 |
| 技术 | CMOS | 触发类型 | Positive Edge |
| 图案编号 | Y | 单元数量 | 1 |
| 复位操作 | Set/Reset | 功能框图 | alt_sces203o.gif |
| 电路数 | 1 | 射频系列/标准 | LVC |
| 使用的IC/零件 | D flip-flop, positive edge trigger | 其他规格 | :D |
| 印刷电路板数量 | 8 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 85 °C |
相关型号
OPA2134PA
texas instruments
OP Amp Dual GP ±18V 8-Pin PDIP Tube IC OPAMP AUDIO 8MHZ 8DIP 6.35mm OPA2134PA, Audio Amplifier 8MHz 86dB +85°C 8-Pin PDIP OP Amp Dual GP �18V 8-Pin PDIP Tube OP AMP, DUAL AUDIO FET I/P, 2134 Operational amplifier; 8MHz; 2.5÷18VDC; Channels:2; DIP8 SoundPlus(TM) High Performance Audio Operational Amplifiers Operational Amplifier Dual 8 MHz DIL-8, OPA2134, OPA2134PA, Texas Instruments Dual audio op-amp, 10mA DIP8 Audio Amplifiers SoundPlus(TM) Hi-Perf Aud Oper Amp
OPA350PA
texas instruments
OP Amp Single GP R-R I/O 5.5V 8-Pin PDIP Tube IC OPAMP GP 38MHZ RRO 8DIP High Speed Operational Amplifiers Hi-Spd Single-Sply Rail-to-Rail OP AMP, HIGHSPEED RRI/O, DIP8, 350 Operational amplifier; 38MHz; 2.5÷5.5VDC; Channels:1; DIP8 High-Speed, Single-Supply, Rail-to-Rail Operational Amplifiers MicroAmplifier(TM) Series Operational Amplifier Single 38 MHz DIL-8, OPA350, OPA350PA, Texas Instruments Texas Instruments 运算放大器, 38MHz CMOS、轨至轨, 3 V 5 V, 8针 PDIP
SN74LVC1G17DBVR
texas instruments
Schmitt Trigger Buffer 1-CH Non-Inverting CMOS 5-Pin SOT-23 T/R IC BUFFER SCHMIT TRIG SOT23-5 Buffers & Line Drivers Single Schmitt-Trgr IC, BUFFER, SCHMITT TRIG, 5SOT23 IC, SCHMITT TRIGGER BUFFER, SOT-23-5, FULL REEL IC: digital; Schmitt trigger, buffer; SOT23-5 Single Schmitt-Trigger Buffer Logic IC SOT-23-5, SN74LVC1G17, SN74LVC1G17DBVR, Texas Instruments Texas Instruments LVC 系列 非反相 施密特触发缓冲器 , 5针 SOT-23封装
SN74AHCT1G125DBVR
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R IC BUS BUFF TRI-ST N-INV SOT23-5 Buffers & Line Drivers Tri-State Single Bus IC, 74AHCT SINGLE GATE, SMD Single Bus Buffer Gate With 3-State Output Logic IC SOT-23-5, SN74AHCT1G125, SN74AHCT1G125DBVR, Texas Instruments HCT 总线缓冲器, 8.5 ns @ 50 pF, 8mA, 4.5 → 5.5 V, 5针 SOT-23封装
MSP430F133IPAG
texas instruments
MCU 16-bit MSP430 RISC 8KB Flash 2.5V/3.3V 64-Pin TQFP Tray 16-bit Microcontrollers - MCU 8kB Flash 256B RAM 12bit ADC + 1 USART IC MCU 16BIT 8KB FLASH 64TQFP MCU 16-bit MSP430 MSP430 RISC 8KB Flash 2.5V/3.3V 64-Pin TQFP Tray IC, MCU, 16BIT, 8K FLASH, 64TQFP 16-Bit Ultra-Low-Power Microcontroller, 8kB Flash, 256B RAM, 12 bit ADC, USART
SN74LVC1G86DBVR
texas instruments
XOR Gate 1-Element 2-IN CMOS 5-Pin SOT-23 T/R IC EX-OR GATE 2-IN SOT-23-5 Logic Gates 2 Input IC, EX-OR, SINGLE 2-INPUT, SMD Single 2-Input Exclusive-OR Gate

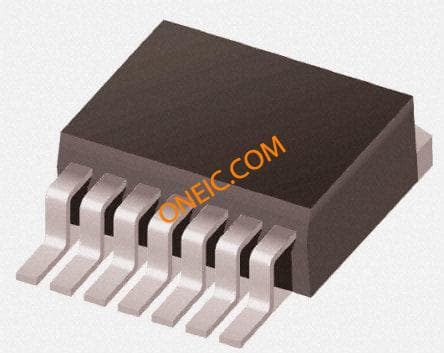

LM2676S-5.0/NOPB
texas instruments
Conv DC-DC Single Step Down 8V to 40V 8-Pin(7+Tab) TO-263 Rail IC REG BUCK 5V 3A TO263-7 LM2676S-5.0/NOPB, Switching Regulator, Buck Controller, 3A, 5V, 260kHz, 7-Pin TO-263 Voltage Regulators - Switching Regulators HIGH EFF 3A STEP- DOWN VLTG REG IC, VOLTAGE REGULATOR, 260KHZ, TO263-7 DC-DC converter; step down; Uin:8÷40V; Uout:5V; 3A; D2PAK-7 SIMPLE SWITCHER® 8V to 40V, 3A Low Component Count Step-Down Regulator Switching Regulator 3 A TO-263-7, LM2676, LM2676S-5.0/NOPB, Texas Instruments Texas Instruments 降压 开关稳压器, 3A, 5 V, 260 kHz, 7针 TO-263封装 Switching Voltage Regulators HIGH EFF 3A STEP- DOWN VLTG REG
SN74LVC1G86DBVT
texas instruments
XOR Gate 1-Element 2-IN CMOS 5-Pin SOT-23 T/R IC SNGL 2IN EXCL-OR GATE SOT23-5 Logic Gates SNGL 2 Input Exclusive OR Gate LOGIC, SNGL 2IN EXCL-OR GATE, 5SOT23 Single 2-Input Exclusive-OR Gate

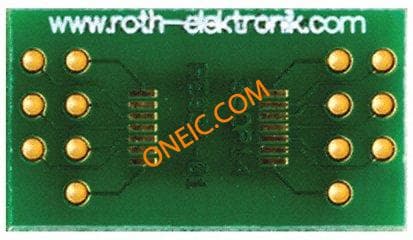

RE931-01
