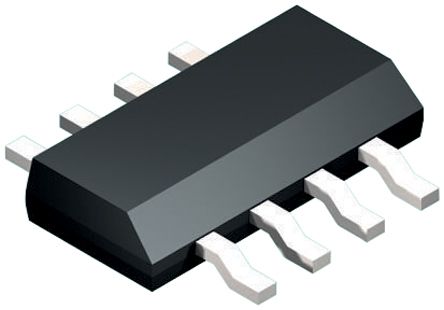

SN74LVC2G157DCTR
| 制造商 | Texas Instruments Incorporated |
| 描述 | Multiplexer 1-Element CMOS 2-IN 8-Pin SSOP T/R IC 2-1LINE DATA SELECT/MUX SM8 Encoders, Decoders, Multiplexers & Demultiplexers Single Line Data IC, DATA SELECTOR/MUX, SMD, SSOP8 DATA SELECTOR/MUX, SINGLE, 2:1, SSOP-8, FULL REEL Single 2-Line to 1-Line Data Selector/Multiplexer Texas Instruments 多路复用器, 单路 2:2 多路复用器, 1.65 → 5.5 V电源电压, 8针 SM封装 |
| 分类 |
商业参数
| 产品 | Selectors / Multiplexers | 其他名称 | 296-13266-2 |
| 产品类别 | Encoders, Decoders, Multiplexers & Demultiplexers | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 3000 | 标准封装名称 | SSOP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电路 | 1 x 2:1 | 电压 | 1.8 2.5 3.3 5 |
| 逻辑类型 | LVC | I/O 数量 | 5 V |
| 位数 | 2 | 额定电压 | 1.65 V |
| 输入数量 | 2 | 供电电压 | 1.65 V ~ 5.5 V |
| 输出数量 | 1 | 通道数量 | :1 |
| 元件数量 | 1 | 最大额定电流 | Catalog |
| 输出1频率 | 150 | 供电电源 | Single Supply |
| 最小供电电压 | 5.5 V | 传播延迟时间 | 4 ns |
| 静态电流（最大） | 0.01 | 输出高/低电流 | 32 mA |
| 输出源/灌电流 | 32/-32 | 最大传播延迟 @ V, 最大CL | 6@3.3V|4@5V ns |
| 传播延迟 tpLH / tpHL（最大） | 14 8 6 4 | ||
机械参数
| 宽度 | 2.9(Max) | 重量 | 0.000825 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SSOP | 冷却的封装 | SSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.15(Max) |
| 包装数量 | SSOP | 位数 | 8 |
| 外壳尺寸-插件 | 1.2(Max) | 供应商器件封装 | SM8 |
产品信息
| 类型 | Multiplexer | 系列 | SN74LVC2G157 |
| 工艺（或'制程'，根据具体值如CMOS） | CMOS | 功能 | Multiplexer |
| 极性 | Inverting/Non-Inverting | 软件 | SCES207M |
| 基本单元 | :74 | 配置 | 1 x 2:1 |
| 图案编号 | Y | 功能框图 | fbd_sces207m.gif |
| 射频系列/标准 | LVC | 使用的IC/零件 | View |
| 独立电路数 | 1 | 印刷电路板数量 | 8 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
| 结工作温度 | 85C | ||
文档与媒体
