SN74LVC1G126DBVT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R IC BUS BUFF TRI-ST N-INV SOT23-5 Buffers & Line Drivers SNGL Bus Buffer Gate IC, BUFFER GATE, SMD, SOT-23-5 Single Bus Buffer Gate With 3-State Outputs Logic IC SOT-23-5, SN74LVC1G126, SN74LVC1G126DBVT, Texas Instruments |
| 分类 |
商业参数
| 其他名称 | 296-32293-1 | 产品类别 | Buffers & Line Drivers |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | SOT-23 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电压 | 1.8 2.5 3.3 5 | 输入类型 | CMOS/TTL |
| 逻辑类型 | LVC | 输出类型 | 3-State |
| 输入信号 | Single-Ended | I/O 数量 | 5 V |
| 位数 | 1 | 额定电压 | 1.65 |
| 输入数量 | 1 | 供电电压 | 1.65 V ~ 5.5 V |
| 输出数量 | 1 | 通道数量 | 1 |
| 元件数量 | 1 | 最大额定电流 | Catalog |
| 输出1频率 | 150 | 施密特触发器输入 | No |
| 最小供电电压 | 1.65 V | 传播延迟（最大） | 9.8 |
| 静态电流 (Iq) | 10 uA | 传播延迟时间 | 4.5 ns at 3.3 V, 4 ns at 5 V |
| 静态电流（最大） | 0.01 | 输出高/低电流 | 32mA, 32mA |
| 每元件位数 | 1 | 输出源/灌电流 | 32/-32 |
| 最大传播延迟 @ V, 最大CL | 4.5@3.3V|4@5V ns | 传播延迟 tpLH / tpHL（最大） | 8 5.5 4.5 4 |
机械参数
| 宽度 | 1.75(Max) | 重量 | 0.000557 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :5 |
| 封装形式 | 5SOT-23 | 冷却的封装 | SOT-23 |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.05(Max) |
| 包装数量 | SOT-23 | 位数 | 5 |
| 外壳尺寸-插件 | 1.3(Max) | 供应商器件封装 | SOT-23-5 |
产品信息
| 系列 | SN74LVC1G126 | 工艺（或'制程'，根据具体值如CMOS） | CMOS |
| 功能 | Buffer/Line Driver | 极性 | Non-Inverting |
| 软件 | SCES224R | 基本单元 | :741G126 |
| 技术 | CMOS | 功能框图 | fbd_sces224r.gif |
| 射频系列/标准 | LVC | 使用的IC/零件 | View |
| 印刷电路板数量 | 5 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
SN74LVC1G08DCKR
texas instruments
AND Gate 1-Element 2-IN CMOS 5-Pin SC-70 T/R SINGLE POSITIVE AND GATE SC-70 Logic Gates Single 2-Input Pos IC, AND GATE, SINGLE 2-INPUT, SMD IC, AND GATE, SC-70-5, FULL REEL Single 2-Input Positive-AND Gate Logic IC SC-70-5, SN74LVC1G08, SN74LVC1G08DCKR, Texas Instruments Texas Instruments 逻辑门, CMOS输出, 32mA, 1.65 至 5.5 V, 5针 SC-70封装
SN74LVC1G125DBVR
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R IC BUS BUFF TRI-ST N-INV SOT23-5 SN74LVC1G125DBVR, Bus Buffer, LVC, 4 @ 5 Vns, 32mA 1.65 to 5.5V 5-Pin SOT-23 IC, BUFFER GATE, BUS, SMD, SOT-23-5 IC, BUFFER, NON-INVERT, SOT-23-5, FULL REEL Single Bus Buffer Gate With 3-State Outputs Logic IC SOT-23-5, SN74LVC1G125, SN74LVC1G125DBVR, Texas Instruments LVC 总线缓冲器, 4 ns @ 5 V, 32mA, 1.65 → 5.5 V, 5针 SOT-23封装 Buffers & Line Drivers SINGLE BUS BUFFER GATE
SN74LVC2G125DCUR
texas instruments
Buffer/Line Driver 2-CH Non-Inverting 3-ST CMOS 8-Pin VSSOP T/R Buffers & Line Drivers Tri-State Dual Bus IC BUS BUFF TRI-ST DL US8 IC, BUFFER GATE, DUAL 3STATE, SMD Dual Bus Buffer Gate with 3-State Outputs LVC 总线缓冲器, 4.2 ns@ 5 V, 1.65 → 5.5 V, 8针 US封装
SN74LVC1G07DCKR
texas instruments
Buffer/Driver 1-CH Non-Inverting Open Drain CMOS 5-Pin SC-70 T/R IC BUFF/DVR NON-INVERT SC705 Buffers & Line Drivers Single w/ OD Single Buffer/Driver With Open-Drain Output Logic IC SC-70-5, SN74LVC1G07, SN74LVC1G07DCKR, Texas Instruments
SN74LVC126ADGVR
texas instruments

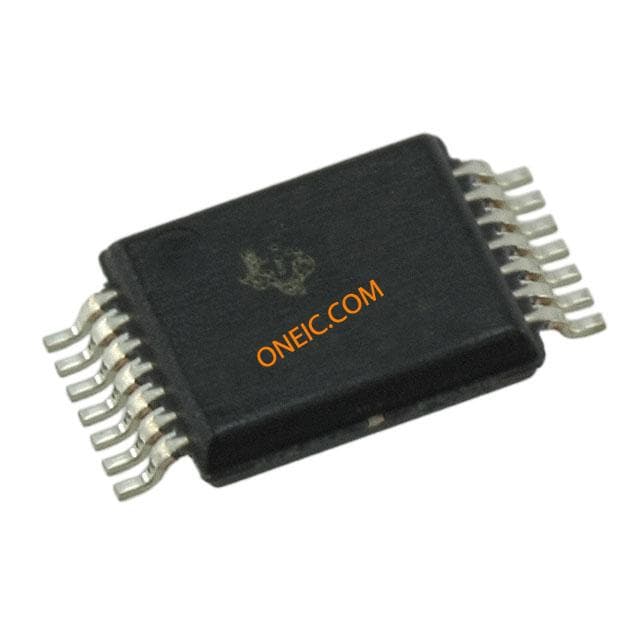

Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TVSOP T/R IC BUS BUFF TRI-ST QD 14TVSOP Buffers & Line Drivers Tri-State Quad Bus IC, QUAD BUS BUFFER GATE, SMD Quadruple Bus Buffer Gate With 3-State Outputs
SN74LVC1G04DBVR
texas instruments
Inverter 1-Element CMOS 5-Pin SOT-23 T/R IC SINGLE INVERTER-GATE SOT-23-5 Inverters Single IC, INVERTER, SINGLE, SMD, SOT-23-5 IC, INVERTER GATE, SOT-23-5, FULL REEL Single Inverter Logic IC SOT-23-5, SN74LVC1G04, SN74LVC1G04DBVR, Texas Instruments CMOS 反相器, CMOS 1.65 → 5.5 V, 5针 SOT-23封装
EV2300
texas instruments
Evaluation Module Interface Board Interface Development Tools USB-Based PC Int Board EVALUATION MOD INTERFACE BOARD EV2300 Module Interface Board EV2300 EVM, INTERFACE BOARD Texas Instruments Gas Guage Interface USB 至 SMBus接口 评估套件
SN74LVC1G126DCKR
texas instruments
Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SC-70 T/R IC BUS BUFF TRI-ST N-INV SC705 Buffers & Line Drivers SINGLE BUS BUFFER GATE IC NON INVERTING BUS BUFFER GATE SC-70-5 LOGIC, 74LVC1G, BUFFER/DRIVER, SC705 Single Bus Buffer Gate With 3-State Outputs Logic IC SC-70-5, SN74LVC1G126, SN74LVC1G126DCKR, Texas Instruments Texas Instruments 74LVC 系列 三态 非反相 缓冲器 SN74LVC1G126DCK, 5针 SC-70封装
74LVC126AD
NXP Semiconductors

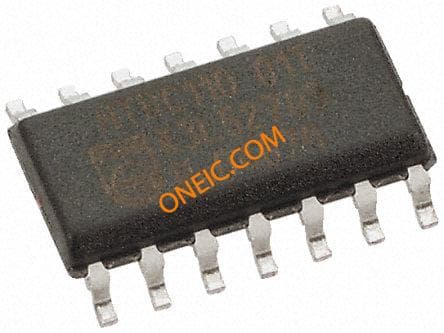

Buffers & Line Drivers 3.3V QUAD 3-S BUS DRIVER 74LVC126AD, Quad Buffer, Line Driver, LVC, 3-State Non-Inverting 1.2 to 3.6V 14-Pin SOIC IC, LOGIC, 74LVC, BUFFER, SO14 I.C.74LVC126AD IC: digital; 3-state, buffer, line driver; Channels:4; SO14
