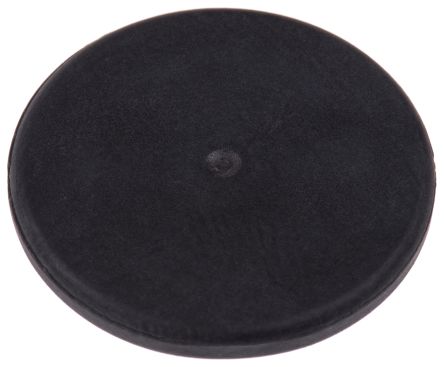

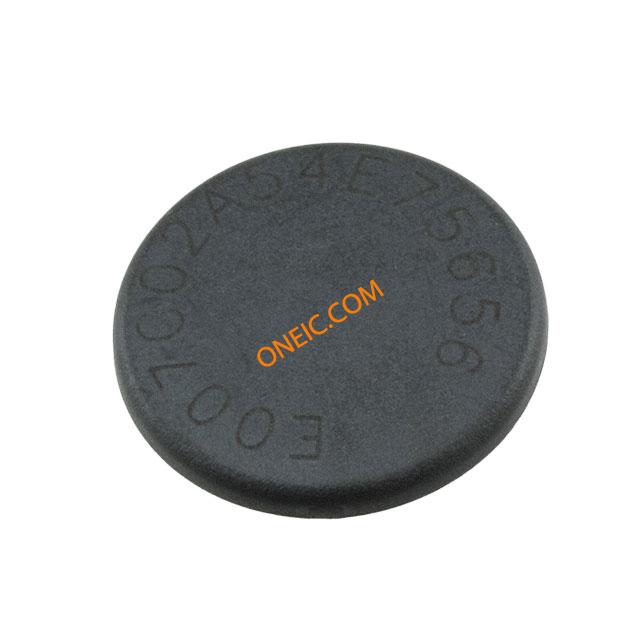

RF-HDT-DVBE-N2
| 制造商 | Texas Instruments Incorporated |
| 描述 | Encapsulated Plus Transponder RFIDP RFID Transponders 13.56MHz Overmolded Transponder 13.56-MHZ ENCAPSULATED STANDARD TRANSPONDER RFID TRNSP ENCAPS 13.56 MHZ RFID Transponder RFID TRANSPONDER, 13.56MHZ, COIN 13.56-MHz Overmolded Transponder based on Tag-it HF-I Standard die Texas Instruments 应答器 , 应答器 |
| 分类 |
商业参数
| 产品类别 | RFID Transponders | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
| 安全特性 | User Memory Lock Factory Memory Lock | ||
电气参数
| 数据速率 | 26 | 频率 | 13.56 MHz |
| 存储器容量 | 256 bit | 传输速率 | ASK FSK |
| 位数 | 64 | 频率范围 | :13.56MHz |
| 供电电压 | ISO 15693 ISO 18000-3 | 共模瞬态抗扰度（最小） | Commercial |
机械参数
| 深度 | 22 mm | 高度 | 3 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 安装样式 | SMD/SMT | 封装形式 | RFIDP-0 |
| 旋转角度 | Yes | 总长度 | 22 mm |
| 包装数量 | RFIDP | 外径 | 22 |
| 面板尺寸 | 22 | 外壳尺寸-插件 | 3 |
| 供应商器件封装 | 0-RFIDP | 推荐工作高度 | Harsh |
产品信息
| 类型 | :Coin / Disk | 系列 | RF-HDT-DVBE |
| 射频类型 | Read / Write | 产品特性 | ISO15693, ISO18000-3, 2048-bits |
| 功能 | Read Only | 软件 | SCBS858C |
| 可编程性 | 256 | 附件类型 | :RFID Transponder |
| 模块/板类型 | :- | 有铅工艺兼容 | :Yes |
环境参数
| 插拔次数 | 100000 | 测试温度 | :Yes |
| 工作温度 | -25 to 90 °C | 存储/冷藏温度 | -25 C to 120C |
