TRF7960RHBT
| 制造商 | Texas Instruments Incorporated |
| 描述 | RFID Analog Front End 32-Pin VQFN EP T/R RFID Transponders Mulit-Standard High Freq RFid Reader IC RFID FRONT END 13.56MHZ 32QFN Texas Instruments RFID Module TRF7960RHBT, Reader IC, RFID TRANSCEIVER, 13.56M, 32QFN IC, RFID READER, 13.56MHZ, QFN-32 TRF7960 Multi-Protocol Fully Integrated 13.56-MHz RFID Reader/Writer IC Texas Instruments RFID 模块 , 阅读器 |
| 分类 |
商业参数
| 其他名称 | 481-1111-6 | 产品类别 | RFID Transponders |
| 标准包装数量 | Cut Tape, Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | QFN | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 频率 | 13.56 MHz | 调制方式 | :ASK, OOK |
| 最大功率 | 200mW | 灵敏度 | :1.2mVPP |
| 输出功率 | :200mW | 额定输出功率 | 100 200 |
| 最大频率 | :13.56MHz | 频率范围 | :13.56MHz |
| 供电电压 | 2.7 → 5.5V | 最大额定电流 | 10 |
| 最小供电电压 | 2.7 V | 可用频率范围（通信协议） | SPI |
机械参数
| 宽度 | 190.5mm | 高度 | 31.8mm |
| 长度 | 212.7mm | 重量 | 0.002533 oz |
| 包装方式 | Reel | 引脚样式 | No Lead |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :32 |
| 封装形式 | 32VQFN EP | 冷却的封装 | 32QFN |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 5.15(Max) |
| 包装数量 | VQFN EP | 尺寸/外形 | 212.7 x 190.5 x 31.8mm |
| 位数 | 32 | 外壳尺寸-插件 | 0.95(Max) |
| 供应商器件封装 | 32-VQFN (5x5) | ||
产品信息
| 类型 | Reader | 系列 | TRF7960 |
| 已删除 | Compliant | 射频类型 | Read Only |
| 产品特性 | ISO14443-A, ISO14443-B, ISO15693, ISO18000-3, Tag-it™ | 功能 | Read Only |
| 软件 | SLOU186F | 基本单元 | :7960 |
| 可编程性 | :- | 射频系列/标准 | TRF7960 |
| 使用的IC/零件 | View | 印刷电路板数量 | 32 |
环境参数
| 测试温度 | -40 to 110 | 工作温度 | -40 to 110 °C |
| 温升功耗 | :120mA | ||
相关型号

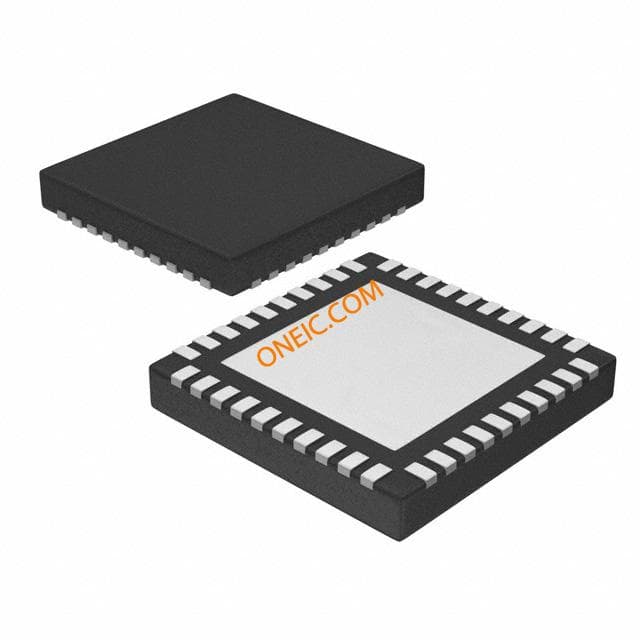

MSP430F2370IRHAT
