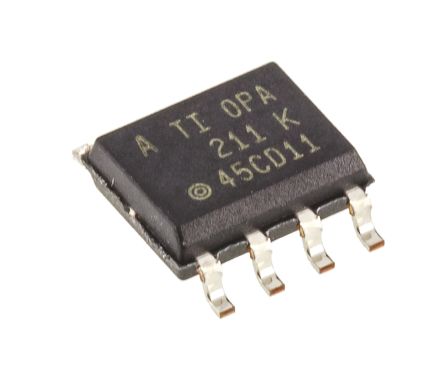

OPA211AID
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP R-R O/P ±18V/36V 8-Pin SOIC Tube IC OPAMP GP 80MHZ RRO 8SOIC Operational Amplifiers - Op Amps 1.1nV/rtHz Noise Lo Pwr Prec Op Amp OP Amp Single GP R-R O/P ?18V/36V 8-Pin SOIC Tube OP AMP, RRO, 80MHZ, 27V/µS, 8SOIC 1.1nV/rtHz Noise, Low Power, Precision Operational Amplifier Texas Instruments 运算放大器, 80MHz 轨至轨, 5 → 28 V, 8针 SOIC Precision Amplifiers 1.1nV/rtHz Noise Lo Pwr Prec Op Amp |
| 分类 |
商业参数
| 产品类别 | Operational Amplifiers - Op Amps | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 114 dB | 电源抑制比 | 140 dB |
| 压摆率 | 27@±18V V/us | 1kHz噪声电压 | 1.1 |
| 输出类型 | Rail to Rail | 失调漂移 | 0.15 |
| 输入功率 | Single/Dual | 晶体管类型 | :Low Power |
| 共模抑制比、电源抑制比（典型） | 110 dB | 输出电流 | 3.6mA |
| 供电电压 | 4.5 V | 供电类型 | Single|Dual |
| 通道数量 | 1 | 元件数量 | 1 |
| 输入偏置电流 | 60nA | 最大额定电流 | Catalog |
| ADC/DAC 数量 | :1 | 最小输入电压 | 30µV |
| 增益带宽积 | 80 MHz | 轨到轨工作 | Rail to Rail Output |
| 静态电流 (Iq) | 4.5 | 输入偏置电流（最大） | 0.175@±18V uA |
| 输出电流/通道 | 30mA | 输入失调电流（最大） | 0.1@±18V |
| 供电电压 (Vcc/Vdd) | 36 | 25°C失调电压 | 0.05 |
| 输入噪声电流密度 | 3.2@±18V pA/rtHz | 输入噪声电压密度 | 2@±18V nV/rtHz |
| 输入失调电压（最大） | 0.125@±15V mV | 电压输出差（典型值）@ 距离 | 114 dB |
机械参数
| 宽度 | 4(Max) | 重量 | 0.002677 oz |
| 带宽 | :45MHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 5(Max) |
| 包装数量 | SOIC | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC |
产品信息
| 类型 | General Purpose Amplifier | 系列 | OPA211 |
| 关断 | No | 软件 | SBOS377G |
| 技术 | SiGe Bipolar | 制造商全称 | Low Power Amplifier |
| 放大器类型 | General Purpose | 图案编号 | Y |
| 功能框图 | alt_sbos377g.gif | 电路数 | 1 |
| 使用的IC/零件 | View | 印刷电路板数量 | 8 |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
文档与媒体
