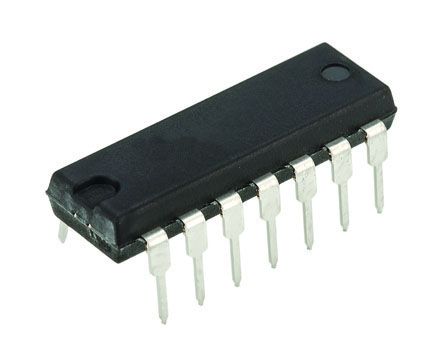

MSP430F2012IN
| 制造商 | Texas Instruments Incorporated |
| 描述 | MCU 16-bit MSP430 RISC 2KB Flash 2.5V/3.3V 14-Pin PDIP 16-bit Microcontrollers - MCU 16-Bit Ultra Low Pwr 1kB Flash 2kB RAM MCU 16-bit MSP430 MSP430 RISC 2KB Flash 2.5V/3.3V 14-Pin PDIP IC MCU 16BIT 2KB FLASH 14DIP MSP430F2012IN, 16 bit Microcontroller MSP430 16MHz 2kb Flash, 128B RAM, I2C SPI 14-Pin PDIP IC, MCU, 16BIT, 2K FLASH 14DIP 16-bit Ultra-Low-Power Microcontroller, 2kB Flash, 128B RAM, 10-Bit SAR A/D, USI for SPI/I2C Texas Instruments MSP430 系列 16 bit MSP430 MCU, 16MHz, 2 kB，256 B ROM 闪存, 128 B RAM, 14针 PDIP封装 |
| 分类 |
商业参数
| 商标名 | MSP430 | 其他名称 | 296-19730-5 |
| 产品类别 | 16-bit Microcontrollers - MCU | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 25 | 标准封装名称 | PDIP |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :MSP430F2012 | 抗辐射加固 | No |
| 认证机构 | No | 安全特性 | N/A |
电气参数
| GPIO | 10 | 转速 | 16 MHz |
| 定时器 | 2 x 16 bit | 存储器 | 0 |
| RAM 大小 | 128 byte | 内核大小 | 16-Bit |
| 核心类型 | MSP430 | 频率 | 16 MHz |
| 接口 | I2C/SPI | 时钟速率 | 16 MHz |
| 比较器数量 | 0 | 延迟时间 | 1 |
| 分辨率 | 16bit | 存储器容量 | 128 B |
| I/O 数量 | 10 | 计数器/定时器 | 1 |
| 位数 | 10 | 额定电压 | 1.8 → 3.6 V |
| 看门狗定时器 | 1 | 时钟频率 | :16MHz |
| 数据转换器 | A/D 8x10b | 最大频率 | 16MHz |
| DAC数量 | 1 | 振荡器类型 | Internal |
| 串行协议 | 0 | 供电电压 | 2.5|3.3 V |
| 分辨率（位） | 10bit | 通道数量 | 8 |
| 模拟输入/输出 | ADC10 - 8ch | 非易失性存储器 | 2 |
| 程序存储器大小 | 2 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 8 | 最小输入电压 | 3.6 |
| 最小供电电压 | 1.8 V | 频率（中心/带宽） | 16bit |
| 平均正向功率 | 0.5 | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 1.8 V ~ 3.6 V | ||
机械参数
| 宽度 | 6.35mm | 高度 | 4.57mm |
| 长度 | 19.3mm | 重量 | 0.032657 oz |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :14 |
| 封装形式 | 14PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 19.69(Max) |
| 包装数量 | PDIP | 尺寸/外形 | 19.3 x 6.35 x 4.57mm |
| 位数 | 14 | 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) |
| 核心数/总线宽度 | 16 Bit | 脉冲宽度失真（最大） | 2 x 16 bit |
产品信息
| SPI | 1 | USB | 0 |
| 系列 | 2 Series | 产品特性 | Watchdog Temp Sensor Brown Out Reset |
| 协议 | 1 | 软件 | SLAS491I |
| 引导加载程序 | UART | 闪存大小 | :2KB |
| 倍率 | N/A | 片内RAM（通道数×位宽） | 8-chx10-bit |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 特殊I/O | N/A |
| 架构 | RISC | 连接性 | I²C, SPI |
| 可编程性 | Yes | 定时器数量 | 1 16-bit (2CCR), 1 Watchdog/Interval |
| 控制器系列 | :MSP430F2xx | 功能框图 | fbd_slas491i.gif |
| 射频系列/标准 | MSP430 | 使用的IC/零件 | View |
| DigiKey可编程 | Yes | 印刷电路板数量 | 14 |
| A/D转换器数量 | :8 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
