LM5576MH/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | Conv DC-DC Single Inv/Step Down 6V to 75V 20-Pin HTSSOP EP Rail IC REG BUCK ADJ 3A 20TSSOP LM5576MH/NOPB, Switching Regulator,, Buck Controller 3A, Adjustable, 500kHz, 20-Pin TSSOP EP Voltage Regulators - Switching Regulators 75V,3A STEP-DOWN SWITCHING REG IC, STEP-DOWN REGULATOR, 20-ETSSOP SIMPLE SWITCHER® 6V to 75V, 3A Step-Down Voltage Regulator with Frequency Synchronization Switching Regulator 3 A TSSOP-20EP, LM5576, LM5576MH/NOPB, Texas Instruments Texas Instruments 降压 ，反相 开关稳压器, 3A, 可调输出, 500 kHz, 20针 TSSOP封装 Switching Voltage Regulators 75V,3A STEP-DOWN SWITCHING REG |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 73 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85359000 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 输出端 | 1 | PWM类型 | Current Mode |
| 占空比 | 95 | 效率 | 90 % |
| 输出类型 | Adjustable | 稳压器类型 | Buck Controller, Inverting |
| 额定电压 | 1.225 to 70 V | 开通延迟时间 | Adjustable |
| 输出电流 | 3 A | 供电电压 | 6 to 75 V |
| 输出数量 | 1 | 稳压器拓扑 | Inverting/Step Down |
| 开关电流 | 4.2 | 开关稳压器 | Yes |
| 最大额定电流 | Catalog | 释放电压 | Adjustable |
| 开关频率 | 50 to 500 kHz | 同步整流 | No |
| 最小输入电压 | 1.23 V ~ 70 V | 静态电流 (Iq) | 1 |
| 直流输入电压（最小） | 6 V | 电压负载调整率 | External |
| 精度 - 电压表；电流表 | 1.5 | ||
机械参数
| 宽度 | 4.4mm | 高度 | 0.9mm |
| 长度 | 6.5mm | 重量 | 0.002 |
| 包装方式 | Rail | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :20 | 封装形式 | 20HTSSOP EP |
| 冷却的封装 | TSSOP EP | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 6.6(Max) | 包装数量 | HTSSOP EP |
| 尺寸/外形 | 6.5 x 4.4 x 0.9mm | 位数 | 20 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 20-HTSSOP |
产品信息
| 类型 | Inverting|Step Down | 系列 | LM5576 |
| 产品特性 | Enable Tracking | 软件 | SNVS447J |
| 拓扑 | Buck | 应用领域 | Industrial |
| 制造商全称 | SIMPLE SWITCHER | 控制方式 | Current Mode |
| 图案编号 | Y | 功能框图 | fbd_snvs447j.gif |
| 使用的IC/零件 | View | 印刷电路板数量 | 20 |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
文档与媒体
相关型号
LM2931CM/NOPB
texas instruments
LDO Regulator Pos 3V to 24V 0.1A 8-Pin SOIC N Rail IC REG LDO ADJ 0.1A 8SOIC LM2931CM/NOPB, Low Dropout Voltage Regulator, Adjustable 0.1A, 3 to 24V, 8-Pin, SOIC LDO Voltage Regulators Series LDO Regs LDO Regulator Pos 3V to 24V 0.1A 8-Pin SOIC Rail IC, ADJ LDO REG, 3V TO 24V, 0.1A, 8-SOIC Voltage stabiliser; adjustable; 3÷24V; 100mA; SMD; SO8 Series Low Dropout Regulators LDO voltage regulator 3...24 V SOIC-8, LM2931, LM2931CM/NOPB, Texas Instruments Texas Instruments , LDO 调节器, 可调整的输出, 100mA, 3 → 24 V输出, 8针 SOIC封装
LM324AM/NOPB
texas instruments
OP Amp Quad GP ±16V/32V 14-Pin SOIC N Rail IC OPAMP GP 1MHZ 14SOIC LM324AM/NOPB, Quad Operational Amplifier 1MHz 5 to 28V, 14-Pin SOIC Operational Amplifiers - Op Amps LOW PWR QUAD OP AMP OP Amp Quad GP ?16V/32V 14-Pin SOIC Rail Operational amplifier; 1MHz; 3÷32VDC; SO14 Low Power Quad Operational Amplifier Operational Amplifier Quad 1 MHz SO-14, LM324, LM324AM/NOPB, Texas Instruments Texas Instruments 四路 运算放大器, 1MHz, 5 → 28 V, 14针 SOIC
TPS54260DRCT
texas instruments
Conv DC-DC Single Step Down 3.5V to 60V 10-Pin VSON EP T/R IC REG BUCK ADJ 2.5A 10SON Voltage Regulators - Switching Regulators 3.5V-60Vin,2.5A,2.5 MHz Step Down SWIFT BUCK, 60VIN, 2.5MHZ, 2.5A, ADJ, 10SON 3.5V to 60V Input, 2.5A Step-Down Converter with Eco-Mode Texas Instruments 降压 开关稳压器, 2.5A, 可调输出, 0.8 → 58 V, 2.5 MHz, 10针 SON封装 Switching Voltage Regulators 3.5V-60Vin,2.5A,2.5 MHz Step Down SWIFT
LM5576BLDT/NOPB
Texas Instruments Incorporated
. LM5576BLDT/NOPB - LM5576 SIMPLE SWITCHER®, WEBENCH® 1 Non-Isolated Output DC/DC, Step Down Evaluation Board from Texas Instruments. from now!
LM2940CT-15/NOPB
texas instruments
LDO Regulator Pos 15V 1A 3-Pin(3+Tab) TO-220 Rail IC REG LDO 15V 1A TO220-3 LM2940CT-15/NOPB, Low Dropout Voltage Regulator, 1A, 15V, 16.75 to 26Vin, 3-Pin TO-220 LDO Voltage Regulators 1A LDO REG IC, LDO VOLT REG, 15V, 1A, TO-220 Voltage stabiliser; LDO, fixed; 15V; 1A; THT; TO220; 0.46÷0.61mm 1A Low Dropout Regulator LDO voltage regulator 15 V TO-220, LM2940, LM2940CT-15/NOPB, Texas Instruments Texas Instruments , LDO 调节器, 1A, 15 V输出, 16.75 → 26 V输入, 3针 TO-220封装
LM5576MH
texas instruments
Conv DC-DC Single Inv/Step Down 6V to 75V 20-Pin HTSSOP EP Rail IC REG BUCK ADJ 3A 20TSSOP Voltage Regulators - Switching Regulators SIMPLE SWITCHER® 6V to 75V, 3A Step-Down Voltage Regulator with Frequency Synchronization Switching Voltage Regulators R 926-LM5576MH/NOPB
LM5576EVAL
texas instruments
Evaluation Board For Simple Switcher 75V, 3A Step-Down Switching Regulator Power Management IC Development Tools LM5576 EVAL BOARD BOARD EVALUATION FOR LM5576 LM5576EVAL, Development Kit, Power Management, Evaluation Board STEP-DOWN SWITCHING REGULATOR EVAL. BOARD
LM2941CT/NOPB
Texas Instruments Incorporated
LDO Regulator Pos 5V to 20V 1A 5-Pin(5+Tab) TO-220 Rail

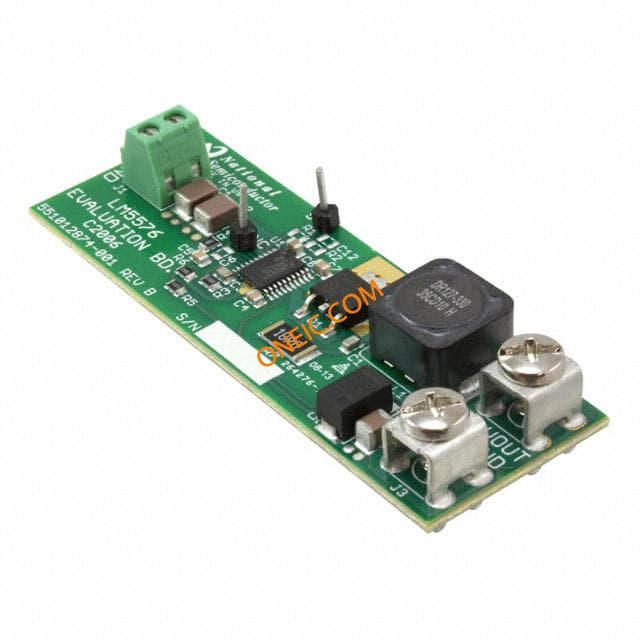

LM5576EVAL/NOPB
