点击放大查看

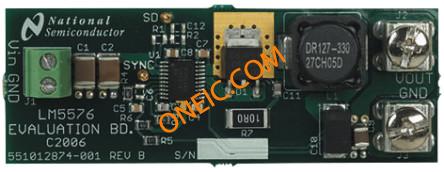

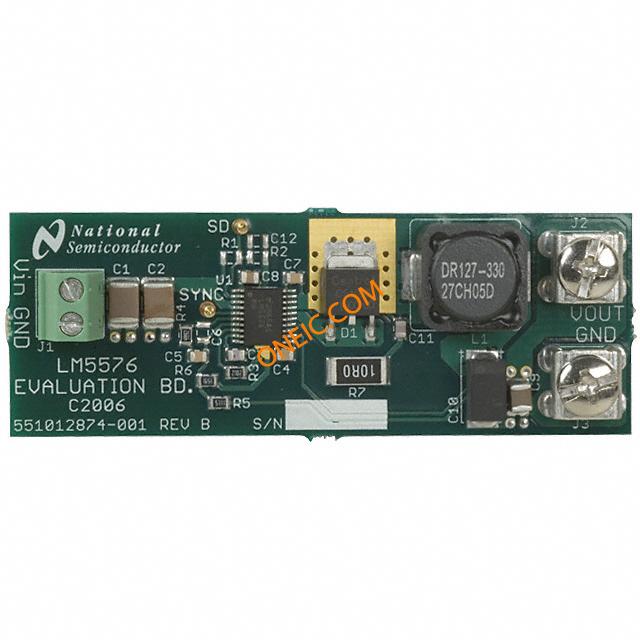

LM5576EVAL
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Board For Simple Switcher 75V, 3A Step-Down Switching Regulator Power Management IC Development Tools LM5576 EVAL BOARD BOARD EVALUATION FOR LM5576 LM5576EVAL, Development Kit, Power Management, Evaluation Board STEP-DOWN SWITCHING REGULATOR EVAL. BOARD |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | No | 欧盟RoHS | RoHS Not Applicable |
| 海关税号 | 85423190 | ||
电气参数
| 额定电压 | 5 V | 输出电流 | 3 A |
| 元件数量 | :LM5576 | 稳压器拓扑 | Buck |
| 开关频率 | 300kHz | 最小输入电压 | 5V |
机械参数
| 重量 | 0 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 套件类型 | :Power Management - Voltage Regulator | 技术 | Power Management |
| 套件内容 | Evaluation Board | 主要用途 | DC/DC, Step Down |
| 卡标准 | Development Kit | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | LM5576 | 射频系列/标准 | LM5576 |
| 使用的IC/零件 | LM5576 | 芯片组制造商 | :National |
| 应用细节 | :Step Down Switching Regulator | ||
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | ||
文档与媒体
相关型号
LM5576MH/NOPB
texas instruments
Conv DC-DC Single Inv/Step Down 6V to 75V 20-Pin HTSSOP EP Rail IC REG BUCK ADJ 3A 20TSSOP LM5576MH/NOPB, Switching Regulator,, Buck Controller 3A, Adjustable, 500kHz, 20-Pin TSSOP EP Voltage Regulators - Switching Regulators 75V,3A STEP-DOWN SWITCHING REG IC, STEP-DOWN REGULATOR, 20-ETSSOP SIMPLE SWITCHER® 6V to 75V, 3A Step-Down Voltage Regulator with Frequency Synchronization Switching Regulator 3 A TSSOP-20EP, LM5576, LM5576MH/NOPB, Texas Instruments Texas Instruments 降压 ，反相 开关稳压器, 3A, 可调输出, 500 kHz, 20针 TSSOP封装 Switching Voltage Regulators 75V,3A STEP-DOWN SWITCHING REG
LM5576QMHX/NOPB
texas instruments
Conv DC-DC Single Inv/Step Down 6V to 75V 20-Pin HTSSOP EP T/R DC/DC Switching Converters IC REG BUCK ADJ 3A 20ETSSOP Voltage Regulators - Switching Regulators SIMPLE SWITCHER® 75V, 3A Step-Down Switching Regulator Switching Voltage Regulators 75V 3A Step-Down Switching Reg
LM5576QMH/NOPB
texas instruments
Conv DC-DC Single Inv/Step Down 6V to 75V 20-Pin HTSSOP EP Rail IC REG BUCK ADJ 3A 20ETSSOP Voltage Regulators - Switching Regulators 75V, 3A Step-Down Switching Reg SIMPLE SWITCHER® 75V, 3A Step-Down Switching Regulator Switching Voltage Regulators 75V, 3A Step-Down Switching Reg
LM5576Q0MH/NOPB
Texas Instruments Incorporated
. LM5576Q0MH/NOPB - Buck Switching Regulator IC Positive Adjustable 1.225V 1 Output 3A 20-PowerTSSOP (0.173", 4.40mm Width) from Texas Instruments. from now!
LM5576Q0MHX/NOPB
Texas Instruments
Voltage Regulators - Switching Regulators Conv DC-DC Single Step Down 6V to 75V 20-Pin TSSOP EP T/R IC REG BUCK ADJ 3A 20ETSSOP SIMPLE SWITCHER® 75V, 3A Step-Down Switching Regulator Switching Voltage Regulators SIMPLE SWITCHER? 75V, 3A Step-Down Switching Regulator 20-HTSSOP
LM5576MH
texas instruments
Conv DC-DC Single Inv/Step Down 6V to 75V 20-Pin HTSSOP EP Rail IC REG BUCK ADJ 3A 20TSSOP Voltage Regulators - Switching Regulators SIMPLE SWITCHER® 6V to 75V, 3A Step-Down Voltage Regulator with Frequency Synchronization Switching Voltage Regulators R 926-LM5576MH/NOPB
LM5576MHX
texas instruments
Conv DC-DC Single Inv/Step Down 6V to 75V 20-Pin HTSSOP EP T/R DC/DC Switching Converters IC REG BUCK ADJ 3A 20TSSOP Voltage Regulators - Switching Regulators SIMPLE SWITCHER® 6V to 75V, 3A Step-Down Voltage Regulator with Frequency Synchronization
LM5576MHX/NOPB
Texas Instruments Incorporated
. LM5576MHX/NOPB - Buck Switching Regulator IC Positive Adjustable 1.225V 1 Output 3A 20-PowerTSSOP (0.173", 4.40mm Width) from Texas Instruments. from now!
