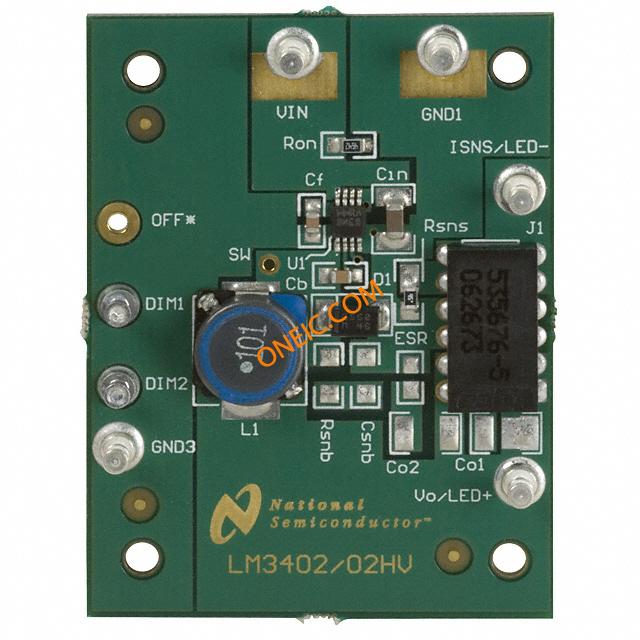

LM3402EVAL

制造商	Texas Instruments Incorporated
描述	BOARD EVALUATION FOR LM3402 LM3402, BUCK REGULATOR, DEMO BOARD
分类	嵌入式系统与开发工具嵌入式开发工具评估与开发套件

对参数有疑问？问 AI 助手

商业参数

其他名称

*LM3402EVAL

标准包装数量

合规参数

SVHC

:No SVHC (20-Jun-2013)

海关税号

85389091

电气参数

调光方式	:PWM	内核大小	:LM3402
额定电压	:6V to 42V	输出电流	:500mA
输出数量	:1	最小输入电压	4V
输出电流/通道	500mA	最大持续工作电压（MCOV）	:42V

机械参数

重量

0.05

产品信息

类型	:LED Driver	内容	Board
产品特性	Dimmable	拓扑	:Buck
套件内容	:Board	输出及类型	1, Non-Isolated
使用的IC/零件	LM3402	支持MCU系列	:LM3402

文档与媒体

在线文档

LM3402EVAL: 1 LED @ 350 mA, 6 ~ 42 V in

压缩文件

LM3402 Gerber, PCB, and SCH Files

在线文档

LM3402/02HV Demo Brd Guide

PDF 文档

LM3402/02HV
