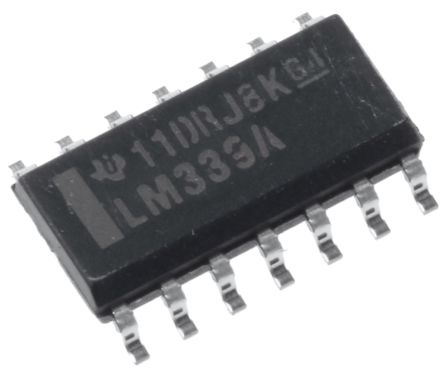

LM339AD
| 制造商 | Texas Instruments Incorporated |
| 描述 | Comparator Quad ±15V/30V 14-Pin SOIC Tube Comparator ICs Quad Differential IC QUAD DIFF COMP 14 -SOIC LM339AD, Quad Comparator Open Collector 1.3μs 4-kanalers 3, 5, 9, 12, 15, 18, 24, 28V 14-Pin SOIC Comparator Quad �15V/30V 14-Pin SOIC Tube COMPARATOR QUAD, SMD, SOIC14, 339 Quad Differential Comparator 4通道 比较器, 开路集电极输出, 1.3μs, 多种电源电压适用, 14引脚 SOIC封装 Analog Comparators Quad Differential |
| 分类 |
商业参数
| 产品 | Analog Comparators | 其他名称 | 296-6604-5 |
| 产品类别 | Comparator ICs | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 50 | 标准封装名称 | SOIC |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | :339 | 抗辐射加固 | No |
电气参数
| 增益 | 106.02 dB | 输出类型 | Open Collector |
| 输入功率 | Single/Dual | 响应时间 | 1.3 us |
| 比较器类型 | Differential | 输出电流 | 2 mA |
| 供电电流 | 0.5 mA | 供电电压 | 2 V |
| 供电类型 | Single|Dual | 通道数量 | 4 |
| 元件数量 | 4 | 阈值电压 | 3 mV |
| 输入偏置电流 | 50 | 最大额定电流 | Catalog |
| 最小输入电压 | 3 mV | 输出电流（典型） | 6 mA |
| 轨到轨工作 | No | 静态电流 (Iq) | 0.5 |
| 静态电流（最大） | 2.5mA | 输入偏置电流（最大） | 0.25µA @ 5V |
| 供电电压 (Vcc/Vdd) | 30 | 25°C失调电压 | 2 |
| 电源电压范围（典型） | �3/�5/�9/�12 V | 输入失调电压（最大） | 3 mV |
| 电压输出差（典型值）@ 距离 | 106.02 dB | ||
机械参数
| 宽度 | 4(Max) | 重量 | 0.004318 oz |
| 最大负载 | 0 | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :14 | 封装形式 | 14SOIC |
| 冷却的封装 | SOIC | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 8.75(Max) | 包装数量 | SOIC |
| 位数 | 14 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 14-SOIC | ||
产品信息
| 类型 | Differential | 系列 | LM339A |
| 已删除 | Compliant | 产品特性 | :Open Collector, Open Drain |
| 软件 | SLCS006T | 基本单元 | :339 |
| 技术 | Bipolar | 制造商全称 | Differential Comparator |
| 功能框图 | fbd_slcs006t.gif | 使用的IC/零件 | :LM339AD |
| 输出配置 | :CMOS, MOS, TTL | 比较器数量 | :4 |
| 印刷电路板数量 | 14 | ||
环境参数
| 开关次数 | 0.3 | 温度范围 | :Commercial |
| 测试温度 | 0 to 70 | 工作温度 | 0 to 70 °C |
文档与媒体
