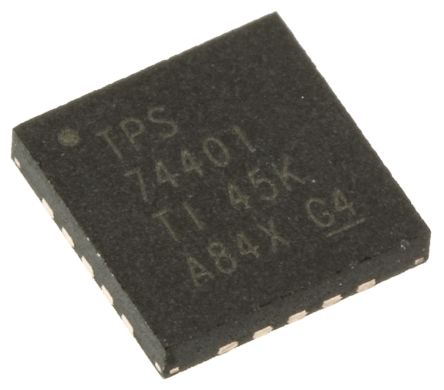

TPS74401RGWT
| 制造商 | Texas Instruments Incorporated |
| 描述 | LDO Regulator Pos 0.796V to 3.6V 3A 20-Pin VQFN EP T/R IC REG LDO ADJ 3A 20VQFN LDO Voltage Regulators 3A LDO w/ Prog Soft-Start LDO, 0.12VDO, 3A, 0.8-3.6V, 20VQFN Single Output LDO, 3.0A, Adj.(0.8 to 3.3V), Fast Transient Response, Programmable Soft Start Logic IC VQFN-20, TPS74401, TPS74401RGWT, Texas Instruments Texas Instruments , LDO 调节器, 可调整的输出, 3A, 0.796 → 3.6 V输出 ±1%, 20针 QFN封装 |
| 分类 |
商业参数
| 其他名称 | 296-19893-2 | 产品类别 | LDO Voltage Regulators |
| 标准包装数量 | Tape & Reel, Cut Tape | 工厂包装数量 | 250 |
| 标准封装名称 | QFN | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电源抑制比 | 50 | 噪声 | 13 |
| 输出端 | 1 | 精度 | ±1 % |
| 输出类型 | Adjustable | 额定功率 | 2740 W |
| 稳压器类型 | Linear | 额定电压 | 0.8 V |
| 电源调整率 | 0.0005(Typ) %/V | 负载调整率 | 0.03(Typ) %/A |
| 输出电流 | 3 A | 供电电压 | 0.115@3A V |
| 输出数量 | 1 | 电压基准 | 0.804 V |
| 稳压器拓扑 | Positive Adjustable | 电容 @ Vr, F | Cap Free Ceramic |
| 最大额定电流 | Catalog | 稳压器数量 | 1 |
| 最小输入电压 | 0.8 V ~ 3.6 V | 输出电压（最大） | :3.6V |
| 输出电压精度 | �1 % | 最大功耗 | 2740 mW |
| 静态电流 (Iq) | 3 | 直流输入电压（最小） | 0.8 V |
| 静态电流（最大） | 3.8A | 电压负载调整率 | 1 % |
| 输入偏置电流（最大） | 2 mA | 输出电压（最小/固定） | :800mV |
| 最大持续工作电压（MCOV） | :5.5V | ||
机械参数
| 宽度 | 5.15(Max) | 重量 | 0.002469 oz |
| 包装方式 | Tape and Reel | 引脚样式 | No Lead |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :20 |
| 封装形式 | 20VQFN EP | 冷却的封装 | VQFN EP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 5.15(Max) |
| 包装数量 | VQFN EP | 位数 | 20 |
| 外壳尺寸-插件 | 0.95(Max) | 供应商器件封装 | 20-VQFN (5x5) |
产品信息
| 类型 | LDO | 系列 | TPS74401 |
| 产品特性 | Current Limit|Thermal Protection | 极性 | Positive |
| 软件 | SBVS066Q | 拓扑 | LDO |
| 图案编号 | Y | 输出及类型 | Adjustable Output |
| 功能框图 | alt_sbvs066q.gif | 使用的IC/零件 | View |
| 其他规格 | :800mV to 3.6V | 印刷电路板数量 | 20 |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
