点击放大查看

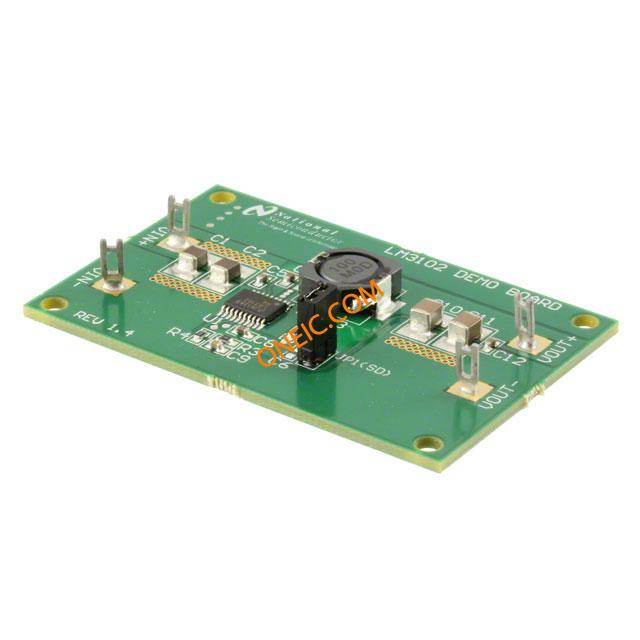

LM3102EVAL/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | LM3102 EVAL BOARD Power Management IC Development Tools LM3102 EVAL BOARD EVAL BOARD FOR LM3102 EVAL BOARD, LM3102 3.3V, 2.5A SYNC STEP-DOWN REG |
| 分类 |
商业参数
| 产品 | Demonstration Boards | 其他名称 | LM3102EVALNOPB |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85423990 |
电气参数
| 额定电压 | 8 V to 42 V | 输出电流 | 2.5 A |
| 元件数量 | :LM3102 | 稳压器拓扑 | Buck |
| 开关频率 | 500kHz | 最小输入电压 | 3.3V |
机械参数
| 重量 | 0 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | DC/DC Converters, Regulators & Controllers | 内容 | Board |
| 产品特性 | :Constant On-Time (COT) step-down regulator | 功能 | The LM3102 Step Down Switching Regulator features all required functions to implement a cost effective, efficient buck power converter capable of supplying 2.5A to loads. |
| 套件类型 | :Power Management | 套件内容 | :Evaluation Board for LM3102 |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | LM3102 | 使用的IC/零件 | LM3102 |
环境参数
| 机械寿命 | New At Mouser | ||
文档与媒体
相关型号

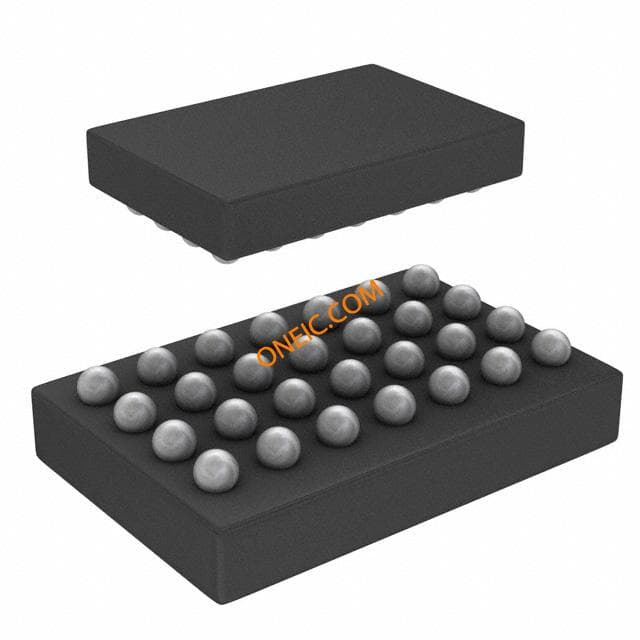

LM3102TLX-1/NOPB
texas instruments
Conv DC-DC Single Step Down 4.5V to 42V 28-Pin uSMD T/R IC REG BUCK SYNC ADJ 2.5A 28VFA Voltage Regulators - Switching Regulators SIMPLE SWITCHER® Synchronous 1MHz 2.5A Step-Down Voltage Regulator Switching Voltage Regulators SIMPLE SWITCHER? Synchronous 1MHz 2.5A Step-Down Voltage Regulator 28-DSBGA
LM3102TL-1/NOPB
texas instruments
Conv DC-DC Single Step Down 4.5V to 42V 28-Pin uSMD T/R IC REG BUCK SYNC ADJ 2.5A 28USMD Voltage Regulators - Switching Regulators SIMPLE SWITCHER® Synchronous 1MHz 2.5A Step-Down Voltage Regulator Switching Voltage Regulators SIMPLE SWITCHER Sync 1MHz 2.5A SD Vtg Reg
LM3102MH/NOPB
texas instruments
Conv DC-DC Single Step Down 4.5V to 42V 20-Pin TSSOP EP Rail IC REG BUCK SYNC ADJ 20TSSOP LM3102MH/NOPB, Switching Regulator, Buck Controller, 2.5A, Adjustable, 5 to 7.2V, 1000kHz, 20-Pin TSSOP EP Voltage Regulators - Switching Regulators SYNC 1MHZ 2.5A STEP- DOWN VLTG REG IC, SYNC STEP-DOWN REGULATOR, 20-ETSSOP SIMPLE SWITCHER® Synchronous 1MHz 2.5A Step-Down Voltage Regulator Switching Regulator 2.5 A HTSSOP-20, LM3102, LM3102MH/NOPB, Texas Instruments Texas Instruments 降压 开关稳压器, 2.5A, 可调输出, 5 → 7.2 V, 1000 kHz, 20针 TSSOP封装 Switching Voltage Regulators SYNC 1MHZ 2.5A STEP- DOWN VLTG REG
LM3102MHX/NOPB
texas instruments
Conv DC-DC Single Step Down 4.5V to 42V 20-Pin TSSOP EP T/R IC REG BUCK SYNC ADJ 20-TSSOP Voltage Regulators - Switching Regulators SIMPLE SWITCHER® Synchronous 1MHz 2.5A Step-Down Voltage Regulator Switching Voltage Regulators SYNC 1MHZ 2.5A STEP- DOWN VLTG REG
LM3102QMHX/NOPB
Texas Instruments
IC REG BUCK SYNC ADJ 20TSSOP Voltage Regulators - Switching Regulators SIMPLE SWITCHER Sync 1MHz 2.5A SD Vtg Reg SIMPLE SWITCHER® Synchronous 1MHz 2.5A Step-Down Voltage Regulator Switching Voltage Regulators SIMPLE SWITCHER Sync 1MHz 2.5A SD Vtg Reg
LM3102QMH/NOPB
Texas Instruments
IC REG BUCK SYNC ADJ 20TSSOP Voltage Regulators - Switching Regulators SIMPLE SWITCHER Sync 1MHz 2.5A SD Vtg Reg SIMPLE SWITCHER® Synchronous 1MHz 2.5A Step-Down Voltage Regulator
