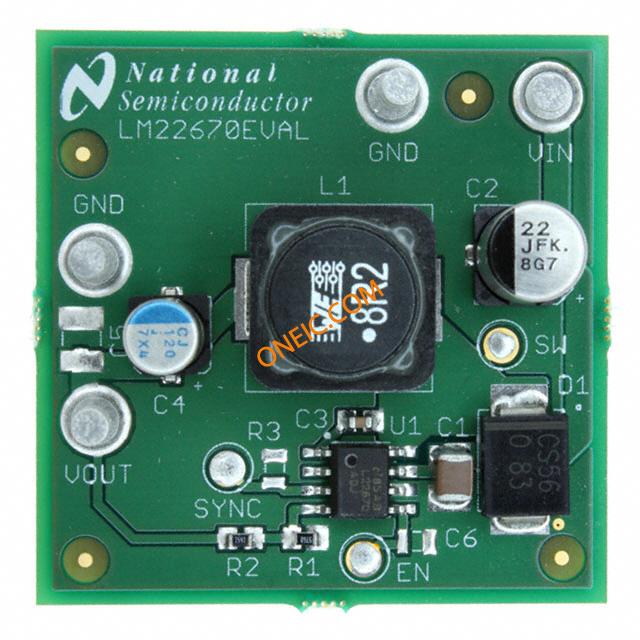

LM22670EVAL
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Kit For 3A Simple Switcher Step-Down Voltage Regulator With Synchronization Or Adjustable Switching Frequency Power Management IC Development Tools LM22670 EVAL BOARD BOARD EVALUATION FOR LM22670 STEP-DOWN SWITCHING REGULATOR EVAL. BOARD |
| 分类 |
商业参数
| 产品 | Power Management Development Tools | 其他名称 | *LM22670EVAL |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | 海关税号 | 85423190 |
电气参数
| 额定电压 | 3.3 V | 输出电流 | 3 A |
| 元件数量 | :LM22670 and LM22676 | 稳压器拓扑 | Buck |
| 开关频率 | 500kHz | 最小输入电压 | 3.3V |
机械参数
| 重量 | 0 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 套件类型 | :Power Management - Voltage Regulator | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | LM22670 |
| 射频系列/标准 | LM22670 | 使用的IC/零件 | LM22670 |
| 芯片组制造商 | :National | 应用细节 | :Switch Regulator |
环境参数
| 机械寿命 | Obsolete | ||
文档与媒体
相关型号

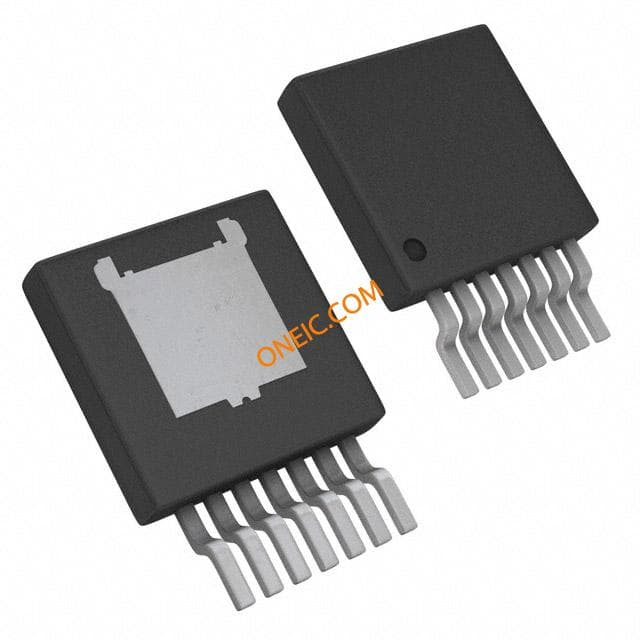

LM22670TJ-5.0/NOPB
