点击放大查看

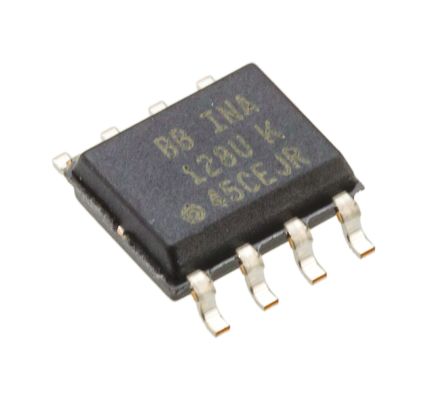

INA128U
| 制造商 | Texas Instruments Incorporated |
| 描述 | SP Amp INSTR Amp Single ±18V 8-Pin SOIC Tube IC OPAMP INSTR 1.3MHZ 8SOIC INA128U, Instrumention Amplifier, 80dB CMRR, 8-Pin SOIC Instrumentation Amplifiers Precision Low Power Instrumentation Amp SP Amp INSTR Amp Single �18V 8-Pin SOIC Tube IC, AMP INSTRUMENTATION, SOIC8, 128 Precision, Low Power Instrumentation Amplifiers Instrumentation Amplifier SO-8, INA128, INA128U, Texas Instruments Texas Instruments 仪表放大器, 50μV偏置, 1.3MHz, 80dB CMRR 8针 SOIC封装 |
| 分类 |
商业参数
| 产品类别 | Instrumentation Amplifiers | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423300 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | 高可靠性 | Y |
电气参数
| 增益 | 80 dB | 输出端 | :Single Ended |
| 压摆率 | 4 V/µs | 输出类型 | No |
| 失调漂移 | 20/G | 输入功率 | Dual |
| 共模抑制比、电源抑制比（典型） | 80dB | 输出电流 | 700µA |
| 供电电压 | ±2.25 V | 供电类型 | Dual |
| 通道数量 | 1 | 元件数量 | 3 |
| 输入电阻 | 100GΩ | 非易失性存储器 | 0.012 |
| 输入偏置电流 | 2nA | 最大额定电流 | Military |
| 噪声（10Hz至10kHz） | 8 | ADC/DAC 数量 | :1 |
| 最小输入电压 | 10µV | 增益带宽积 | 1.3 MHz |
| 轨到轨工作 | No | 静态电流 (Iq) | 0.7 |
| 输出电流/通道 | 15mA | 主IC供电电流 | 0.005@±15V |
| 供电电压 (Vcc/Vdd) | 36 | 供电电压跨度（最大） | ±18 |
| 电源电压范围（典型） | �15 V | 输入失调电压（最大） | 250 |
| 初始电阻（最小） | 100000(Typ)@±15V | ||
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 4.9mm | 重量 | 0.002677 oz |
| 带宽 | :1.3MHz | 包装方式 | Tube |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| -3dB带宽 | 1.3MHz | 导体类型 | Gull-wing |
| 安装样式 | SMD/SMT | 引脚数 | 8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 5(Max) |
| 包装数量 | 75 | TUBE | 尺寸/外形 | 4.9 x 3.91 x 1.58mm |
| 包含封装 | SOIC | 最小弯曲半径 | 80 |
| 位数 | 8 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 8-SOIC | ||
产品信息
| 类型 | Instrumentation Amplifier | 系列 | INA128 |
| 功能 | No | 软件 | SBOS051B |
| 放大器类型 | Instrumentation | 图案编号 | Y |
| 每IC通道数 | 1 | 电路数 | 1 |
| 使用的IC/零件 | View | 其他规格 | :0.5µV/°C |
| 印刷电路板数量 | 8 | 装配配置 | Surface Mount |
环境参数
| 工作温度 | -40 to 85 °C | ||
