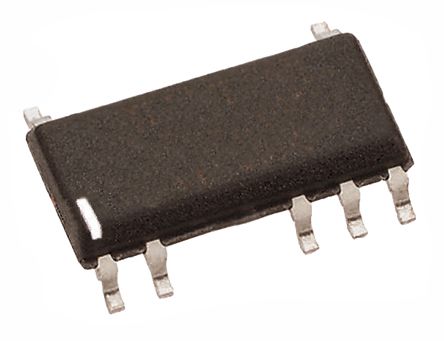

DCV010512DP-U
| 制造商 | Texas Instruments Incorporated |
| 描述 | Conv DC-DC Dual Step Up 4.5V to 5.5V 7-Pin SOP T/R IC REG ISO FIX/ADJ 41MA DL 7SOP DCV010512DP-U, Dual DC-DC Converter, -12, 12V, Step Up, 0.4MHz, 7-Pin SOP DC/DC Converters Mini 1W 1500Vrms Isolate DC/DC Cnvrtr IC, 1W ISO MINI DC/DC 7-SOP Miniature, 1W, 1500Vrms Isolated Unregulated DC/DC Converters Texas Instruments , 双 直流-直流转换器, 升压, 41mA, 4.5 → 5.5 V输入, -12 V, 12 V输出, 0.4 MHz, 7针 SOP封装 |
| 分类 |
商业参数
| 产品 | Isolated | 其他名称 | DCV010512DPU |
| 产品类别 | DC/DC Converters | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 25 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 输出端 | 2 | 精度 | :1% |
| 频率 | :800kHz | 效率 | 82(Typ) % |
| 输出类型 | Fixed | 最大功率 | 0.97(Typ) W |
| 输出功率 | 1 W | 转换器类型 | Step Up |
| 稳压器类型 | :Isolated Unregulated | 额定电压 | 12|-12 V |
| 输出电流 | 0.041|0.04 A | 供电电压 | :5.5V |
| 输出数量 | 2 | 输出电流2 | 0.04 |
| 稳压器拓扑 | Step Up | 输出电压4 | 12 |
| 最大功率（瓦特） | 1W | 开关稳压器 | Yes |
| 隔离电压 | 1.5kV (1500V) | 开关频率 | 400(Typ) kHz |
| 最小输入电压 | 12V | 输出电压（最大） | :12V |
| 静态电流 (Iq) | 40 | 直流输入电压（最小） | 4.5 V |
| 输出电流/通道 | 40 mA | 最大持续工作电压（MCOV） | :5.5V |
机械参数
| 宽度 | 6.61mm | 高度 | 3.94mm |
| 长度 | 19.18mm | 重量 | 0.0002 |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :7 |
| 封装形式 | 7SOP | 冷却的封装 | SOP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 19.18 |
| 包装数量 | SOP | 尺寸/外形 | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) |
| 位数 | 7 | 外壳尺寸-插件 | 3.94 |
产品信息
| 类型 | Step Up | 系列 | DCV010512D |
| 产品特性 | OTP, SCP | 软件 | SBVS014A |
| 基本单元 | :010512 | 使用的IC/零件 | View |
| 印刷电路板数量 | 7 | ||
环境参数
| 工作温度 | -40 to 85 °C | ||
相关型号

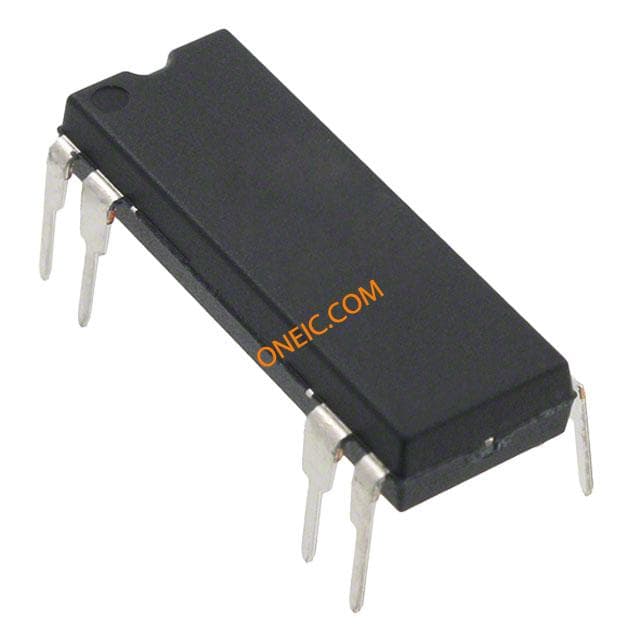

ISO122JPE4
texas instruments
SP Amp ISOL Amp Single ±18V 8-Pin PDIP Tube IC OPAMP ISOLATION 50KHZ 16DIP Isolation Amplifiers Precision Low Cost Isolation Amp SP Amp ISOL Amp Single �18V 8-Pin PDIP Tube AMP PRECISION ISOLATION, DIP8, 122 Precision Lowest Cost Isolation Amplifier
ISO124U
texas instruments
SP Amp ISOL Amp Single ±18V 8-Pin SOP Tube IC OPAMP ISOLATION 50KHZ 8SOIC ISO124U, Isolation Amplifier, 8-Pin SOP SP Amp ISOL Amp Single �18V 8-Pin SOP Tube IC, ISOLATION AMP, 50KHZ, 2V/ uS, SOIC-8 Operational amplifier; 4.5÷18VDC; Channels:1; SO8 Precision Lowest Cost Isolation Amplifier Isolation Amplifier SO-28, ISO124, ISO124U, Texas Instruments Texas Instruments 隔离放大器, 8引脚 SOP封装 Isolation Amplifiers Precision Low Cost Isolation Amp
ISO122PE4
texas instruments
SP Amp ISOL Amp Single ±18V 8-Pin PDIP Tube IC OPAMP ISOLATION 50KHZ 16DIP Isolation Amplifiers Precision Low Cost Isolation Amp SP Amp ISOL Amp Single �18V 8-Pin PDIP Tube AMP PRECISION ISOLATION, DIP8, 122 Precision Lowest Cost Isolation Amplifier

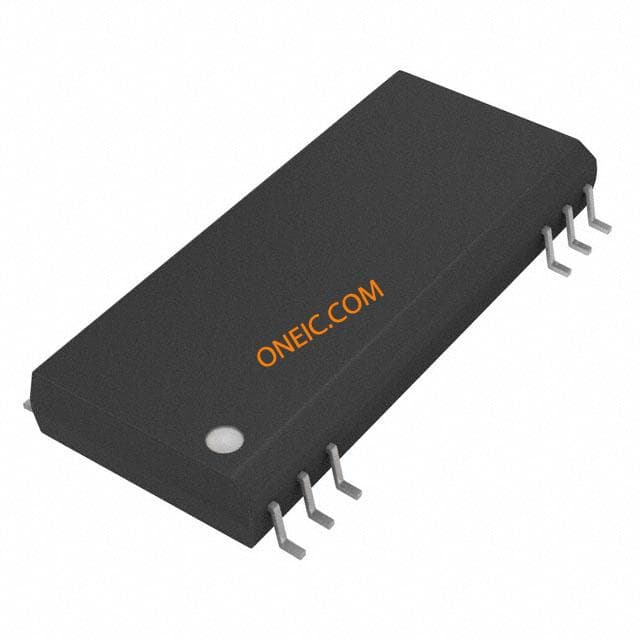

ISO150AUG4
