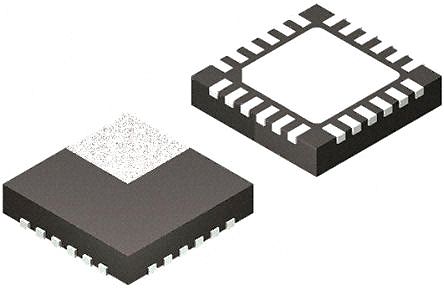

点击放大查看
DAC8881SRGET
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 1-CH R-2R 16-bit 24-Pin VQFN EP T/R Digital to Analog Converters - DAC Lo Noise Lo Drift 16B DAC IC DAC 16BIT 1CH V-OUT 24-QFN IC, DAC 16BIT 1CH V-OUT 24-QFN Single Channel 16-Bit, Low Noise, Voltage Output Digital-to-Analog Converter Texas Instruments , 16 位 DAC, SPI, Microwire接口, 24针 VQFN封装 |
| 分类 |
商业参数
| 其他名称 | 296-22741-2 | 产品类别 | Digital to Analog Converters - DAC |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | QFN | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 接口 | Serial (3-Wire, SPI, QSPI, Microwire) | 满量程 | ±8 LSB |
| 输入类型 | :Serial | 分辨率 | 16 Bit |
| 输出类型 | Voltage | 输出范围 | 0 |
| INL/DNL（LSB） | ±1 LSB | 输入功率 | Analog and Digital |
| 建立时间 | 5(Typ) us | 转换器类型 | General Purpose |
| 数据接口 | Serial | 位数 | 16 |
| 基准类型 | Ext | DAC数量 | 1 |
| 输出电流 | :1.5mA | 供电电压 | 5.5 V |
| 失真额定值（如THD） | +/- 1 LSB | 输出数量 | 1 |
| 供电类型 | Analog and Digital | 分辨率（位） | :16bit |
| 电压基准 | External | 通道数量 | 1 |
| 最大额定电流 | Catalog | 供电电源 | Single Supply |
| 增益带宽积 | 0.01 | 平均正向功率 | 6 |
| 数字供电电压 | :1.7V to 5.5V, 2.7V to 5.5V | 输出数量与类型 | 1 Voltage, Unipolar; 1 Voltage, Bipolar |
| 采样率（每秒） | * | 电源电压范围（典型） | Not Required V |
机械参数
| 宽度 | 4.15(Max) | 重量 | 0.001524 oz |
| 包装方式 | Reel | 引脚样式 | No Lead |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :24 |
| 封装形式 | 24VQFN EP | 冷却的封装 | VQFN EP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 4.15(Max) |
| 包装数量 | VQFN EP | 位数 | 24 |
| 外壳尺寸-插件 | 0.95(Max) | 供应商器件封装 | 24-VQFN (4x4) |
产品信息
| 系列 | DAC8881 | 软件 | SBAS422A |
| 基本单元 | :8881 | 架构 | R-2R |
| 功能框图 | fbd_sbas422a.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 24 | A/D转换器数量 | 1 |
环境参数
| 测试温度 | -40 to 105 | 工作温度 | -40 to 105 °C |
| 结工作温度 | 105C | ||
