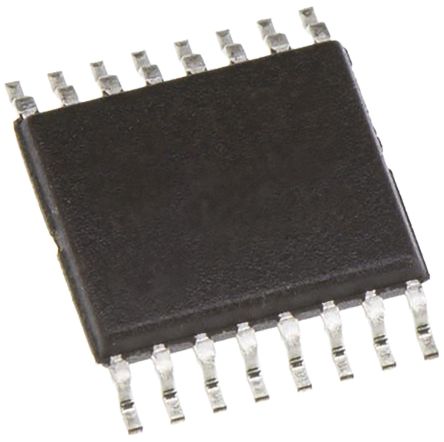

DAC8568ICPW
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 8-CH Resistor-String 16-bit 16-Pin TSSOP Tube Digital to Analog Converters - DAC 16B,Oct Ch,Ultra-Lo Glitch,Vltg Out DAC IC DAC 16BIT OCTAL CH 16-TSSOP DAC8568ICPW, 16-Bit 16 Bit DAC 8-channel SPI, Microwire, 16-Pin TSSOP IC, 16BIT DAC, OCTAL CH, 16TSSOP 16-Bit, Octal Channel, Ultra-Low Glitch, Voltage Output DAC with 2.5V, 2ppm/°C Internal Reference Texas Instruments , 8通道 16 位 DAC, Serial (SPI/QSPI/Microwire)接口, 16针 TSSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-24446-5 | 产品类别 | Digital to Analog Converters - DAC |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 90 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 接口 | Serial (3-Wire, SPI, QSPI, Microwire) | 信噪比 | 83(Typ) dB |
| 满量程 | ±0.2 %FSR | 输入类型 | :Serial |
| 分辨率 | 16 Bit | 输出类型 | Voltage |
| 输出范围 | 0 | INL/DNL（LSB） | ±12 LSB |
| 输入功率 | Single | 建立时间 | 10 us |
| 转换器类型 | General Purpose | 数据接口 | Serial |
| 位数 | 16 | 基准类型 | Ext Int |
| DAC数量 | 8 | 输出电流 | 1 uA |
| 供电电压 | 5.5 V | 输出数量 | 8 |
| 供电类型 | Single | 分辨率（位） | :16bit |
| 电压基准 | Internal or External | 通道数量 | 8 |
| 采样频率 | :225kSPS | 最大额定电流 | Catalog |
| 供电电源 | Single Supply | 增益带宽积 | 0.15 |
| 平均正向功率 | 2.2 | 最大功耗 | 6.8 mW |
| 输出数量与类型 | 8 Voltage, Unipolar; 8 Voltage, Bipolar | 采样率（每秒） | * |
| 电源电压范围（典型） | Not Required V | ||
机械参数
| 宽度 | 4.5(Max) | 重量 | 0.0001 |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :16 |
| 封装形式 | 16TSSOP | 冷却的封装 | TSSOP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 5.1(Max) |
| 包装数量 | TSSOP | 位数 | 16 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 16-TSSOP |
产品信息
| 系列 | DAC8568 | 已删除 | Compliant |
| 软件 | SBAS430E | 基本单元 | :8568 |
| 架构 | Resistor-String | 功能框图 | fbd_sbas430e.gif |
| 使用的IC/零件 | View | 印刷电路板数量 | 16 |
| A/D转换器数量 | 8 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
| 结工作温度 | 125C | ||
