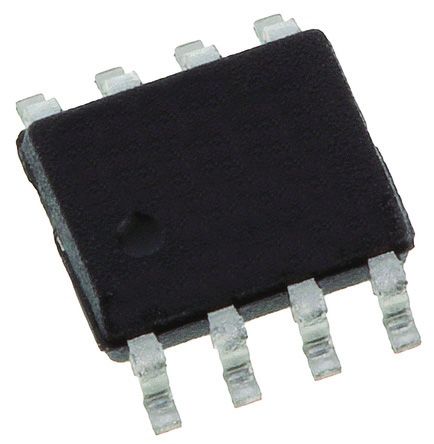

DAC7611U
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 1-CH R-2R 12-bit 8-Pin SOIC Tube Digital to Analog Converters - DAC 12-Bit Serial Input IC 12-BIT SERIAL G.P. D/A 8-SOIC DAC7611U, 12-Bit 12 Bit DAC 132ksps, SPI, 8-Pin SOIC IC, 12BIT DAC, SMD, 7611, SOIC8 IC, DAC, 12BIT, 132KSPS, SOIC-8 TI(TI) 其他特殊功能模块 D/A converter; 12bit; 132ksps; Channels:1; 4.75÷5.25VDC; SO8 12-Bit Serial Input Digital-To-Analog Converter D/A converter IC 12 Bit SO-8, DAC7611U, Texas Instruments Texas Instruments , 12 位 DAC, 132ksps, SPI接口, 8针 SOIC封装 |
| 分类 |
商业参数
| 产品类别 | Digital to Analog Converters - DAC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | 标准封装名称 | SOIC |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :7611 | 抗辐射加固 | No |
电气参数
| 精度 | 1LSB | 接口 | Serial (3-Wire) |
| 线性度 | :0.5% | 输入类型 | :Serial |
| 分辨率 | 12 Bit | 输出类型 | Voltage |
| 输出范围 | 0 | INL/DNL（LSB） | ±2 LSB |
| 输入功率 | Single | 建立时间 | 7(Typ) us |
| 转换器类型 | General Purpose | 数据接口 | Serial |
| 位数 | 12 | 基准类型 | Int |
| 数据速率（最大） | 132 Ksps | DAC数量 | 1 |
| 输出电流 | :500µA | 供电电压 | 5.25 V |
| 失真额定值（如THD） | +/- 2 LSB | 输出数量 | 1 |
| 供电类型 | Single | 分辨率（位） | :12bit |
| 电压基准 | Internal | 通道数量 | 1 |
| 采样频率 | :132kSPS | 最大额定电流 | Catalog |
| 供电电源 | Single Supply | 上升/下降时间（典型） | :7µs |
| 平均正向功率 | 5 | 最大功耗 | :325mW |
| 输出数量与类型 | 1 Voltage, Unipolar | 采样率（每秒） | 132k |
| 电源电压范围（典型） | Not Required V | 共模瞬态抗扰度（最小） | Industrial |
机械参数
| 宽度 | 4(Max) | 重量 | 0.002677 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 5(Max) |
| 包装数量 | SOIC | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC |
产品信息
| SPG | 25 | 类型 | D/A converter |
| 系列 | DAC7611 | 产品特性 | low power |
| 软件 | SBAS075 | 基本单元 | :7611 |
| 架构 | R-2R | 单元数量 | 1 |
| 功能框图 | fbd_sbas075.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | A/D转换器数量 | 1 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
