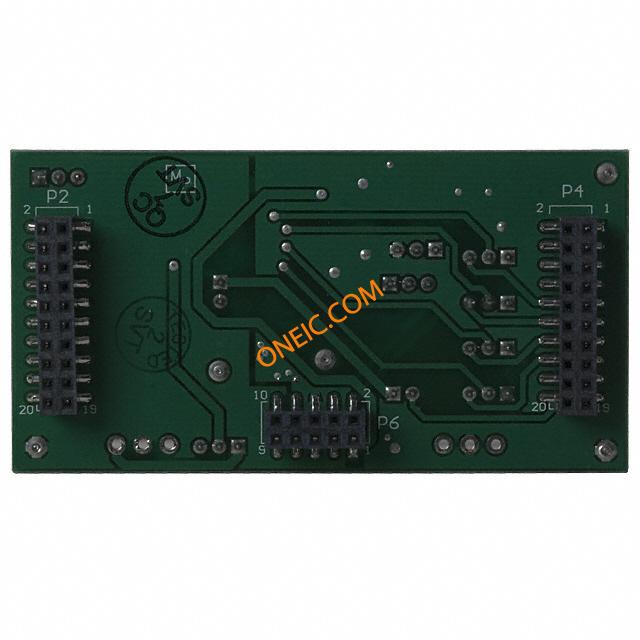

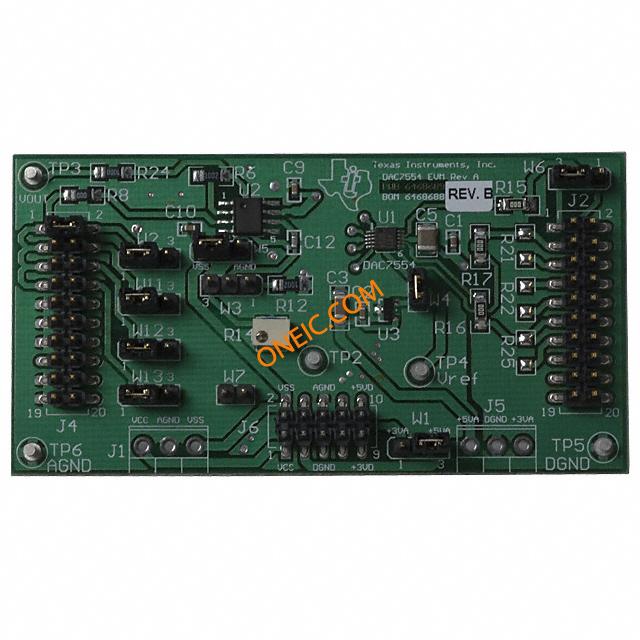

DAC7554EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Module For DAC7554 Data Conversion IC Development Tools DAC7554EVM Eval Module EVALUATION MODULE FOR DAC7554 DAC7554, DAC, EVALUATION MODULE |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | 296-17893 |
| 产品类别 | Data Conversion IC Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | 海关税号 | 84733020 |
电气参数
| DAC类型 | Voltage | 建立时间 | 8µs |
| 数据接口 | Serial | 位数 | 12 |
| DAC数量 | 4 | 供电电压 | 3.3 V to 5 V |
| 元件数量 | :- | 采样率（每秒） | 50M |
机械参数
| 重量 | 0 | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 套件类型 | :Data Converter | 工具类型/特性 | DAC7554 |
| 射频系列/标准 | DAC7554 | 使用的IC/零件 | DAC7554 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :DAC |
环境参数
| 工作温度 | -40°C ~ 105°C | ||
文档与媒体
相关型号
DAC7554IDGS
texas instruments
DAC 4-CH Resistor-String 12-bit 10-Pin VSSOP Tube Digital to Analog Converters - DAC Low-Power Low-Glitch 12-Bit DAC IC DAC 12BIT QUAD W/SPI 10-MSOP DAC7554IDGS, 12-Bit 12 Bit DAC Quad SPI, Microwire, 10-Pin MSOP, VSSOP IC, 12BIT DAC, 1MSPS, SMD, MSOP10 Low-Power, Low-Glitch, 12-Bit DAC Texas Instruments 四 12 位 DAC, Serial (SPI/QSPI/Microwire)接口, 10针 MSOP封装
DAC7554IDGSRG4
texas instruments
DAC 4-CH Resistor-String 12-bit 10-Pin VSSOP T/R IC DAC 12BIT QUAD W/SPI 10-MSOP Digital to Analog Converters - DAC Low-Power Low-Glitch 12-Bit DAC Low-Power, Low-Glitch, 12-Bit DAC
DAC7554IDGSG4
texas instruments
DAC 4-CH Resistor-String 12-bit 10-Pin VSSOP Tube Digital to Analog Converters - DAC Low-Power Low-Glitch 12-Bit DAC IC DAC 12BIT QUAD W/SPI 10-MSOP Low-Power, Low-Glitch, 12-Bit DAC
DAC7554IDGSR
Texas Instruments Incorporated
DAC 4-CH Resistor-String 12-bit 10-Pin VSSOP T/R
