点击放大查看

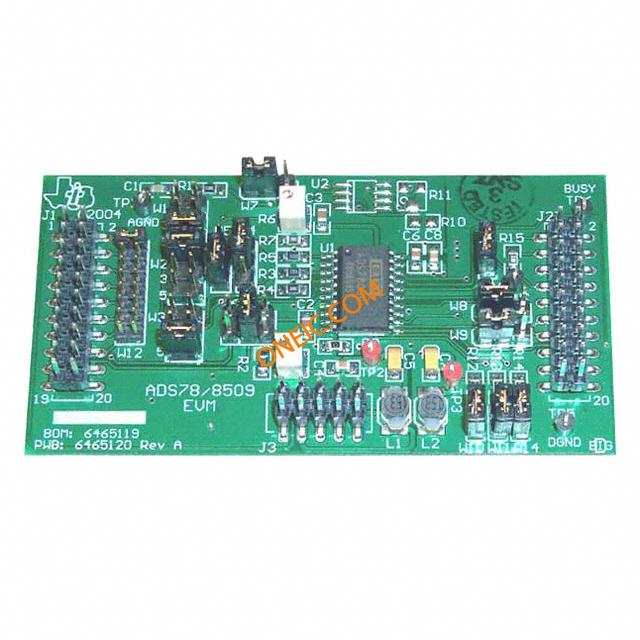

ADS8509EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Board For 16-Bit 250-KSPS Serial CMOS Sampling Analog-To-Digital Converter Data Conversion IC Development Tools ADS8509 Eval Mod EVALUATION MODULE FOR ADS8509 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | 296-20818 |
| 产品类别 | Data Conversion IC Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | ||
电气参数
| 输入范围 | ±10 V | 数据接口 | Serial |
| 位数 | 16 | 供电电压 | 3.3 V to 10 V |
| ADC/DAC 数量 | 1 | 典型功耗（条件） | 70mW @ 250kSPS |
| 采样率（每秒） | 250k | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 工具类型/特性 | ADS8509 | 射频系列/标准 | ADS8509 |
| 使用的IC/零件 | ADS8509 | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | -40°C ~ 85°C |
