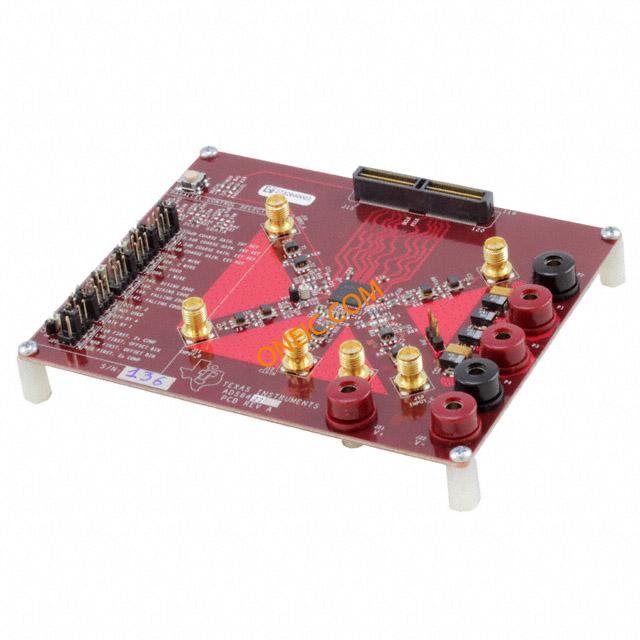

点击放大查看
ADS6422EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | ADS6422 Evaluation Module Data Conversion IC Development Tools ADS6422 Eval Module EVAL MODULE FOR ADS6422 ADS6422EVM EVALUATION MODULE |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Data Conversion IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 84733020 | ||
电气参数
| 接口 | SMA | 输入范围 | 2 Vpp |
| 数据接口 | LVDS, Parallel, Serial | 位数 | 12 |
| 供电电压 | 3.3 V to 5 V | ADC/DAC 数量 | 4 |
| 典型功耗（条件） | 265mW @ 65MSPS | 采样率（每秒） | 65M |
机械参数
| 重量 | 1 | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 工具类型/特性 | ADS6422 | 使用的IC/零件 | ADS6422 |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
