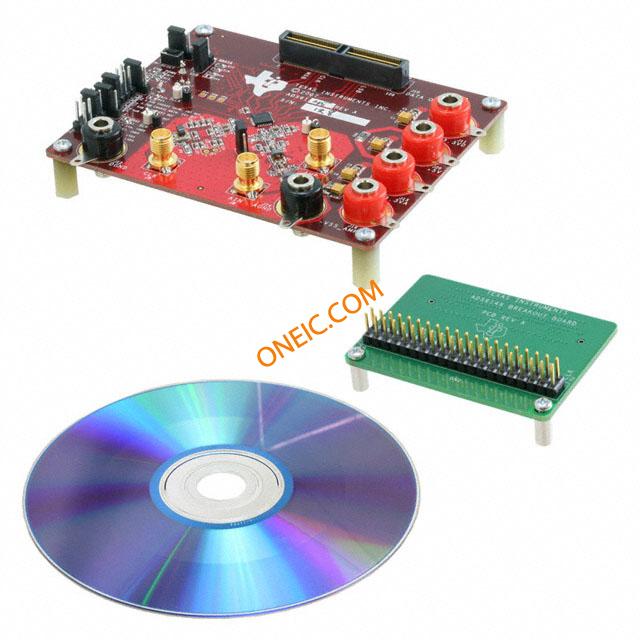

ADS6145EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Board For ADS6145 Data Conversion IC Development Tools ADS6145 Eval Mod EVAL MOUDLE FOR ADS6145 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Data Conversion IC Development Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | No | 欧盟RoHS | RoHS Not Applicable |
电气参数
| 接口 | SMA | 输入范围 | 2 Vpp |
| 功率（瓦） | 417mW @ 125MSPS | 数据接口 | Serial, Parallel |
| 位数 | 14 | 采样保持与ADC比率（如1:2） | 1 |
| 供电电压 | 3.3 V to 5 V | ADC/DAC 数量 | 1 |
| 典型功耗（条件） | 417mW @ 125MSPS | 采样率（每秒） | 125M |
机械参数
| 连接器类型 | Serial, Parallel | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | http://www.ti.com/lit/ds/symlink/ads6145.pdf | 技术 | ADC |
| 工具类型/特性 | ADS6145 | 射频系列/标准 | ADS6145 |
| 使用的IC/零件 | ADS6145 | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号
ADS6145IRHBT
texas instruments
ADC Single Pipelined 125Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R Single ADC Pipelined 125Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R IC ADC 14BIT 125MSPS 32-VQFN IC ADC 14BIT 125MSPS 32-QFN Analog to Digital Converters - ADC Lo Pwr 14B 125MSPS Low Power 14-bit 125MSPS ADC with selectable parallel CMOS or LVDS outputs
ADS6145IRHBRG4
texas instruments
ADC Single Pipelined 125Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R Single ADC Pipelined 125Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R IC ADC 14BIT SER/PAR 125M 32VQFN Analog to Digital Converters - ADC Lo Pwr 14B 125MSPS
TSW1200EVM
texas instruments
High Speed LVDS Deserializer And Analysis System Data Conversion IC Development Tools TSW1200 High Speed ADC LVDS Eval System EVAL SYSTEM ADC LVDS
ADS6145IRHBTG4
texas instruments
ADC Single Pipelined 125Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R Analog to Digital Converters - ADC Lo Pwr 14B 125MSPS Single ADC Pipelined 125Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R IC ADC 14BIT SER/PAR 125M 32VQFN
ADS6145IRHBR
texas instruments
ADC Single Pipelined 125Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R IC ADC 14BIT SER/PAR 125M 32VQFN Analog to Digital Converters - ADC Lo Pwr 14B 125MSPS Single ADC Pipelined 125Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R
