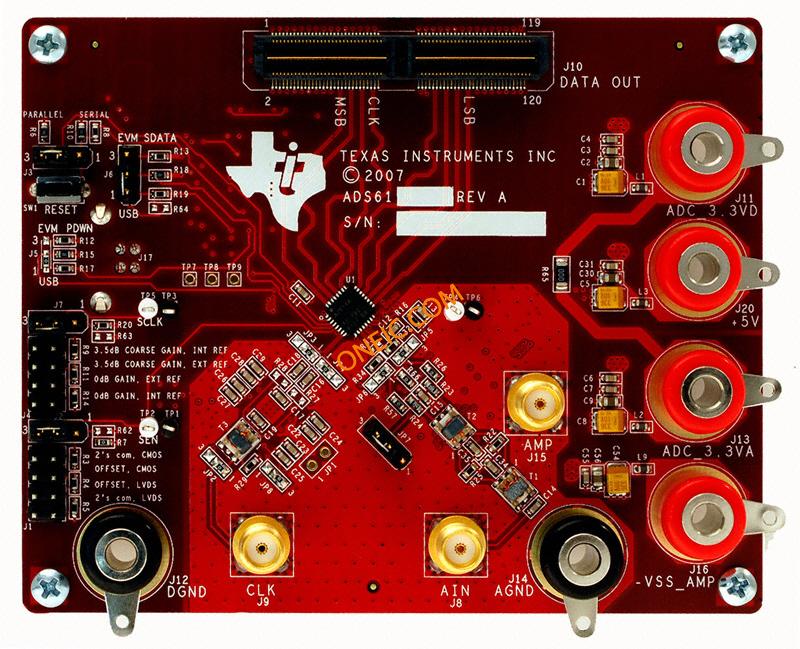

ADS6144EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Board For 14-Bits, 125/105/80/65 MSPS ADC With DDR LVDS/CMOS Outputs Data Conversion IC Development Tools ADS6144 Eval Mod ADS6144EVM |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Data Conversion IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | ||
电气参数
| 接口 | SMA | 输入范围 | 2 Vpp |
| 数据接口 | Serial, Parallel | 位数 | 14 |
| 供电电压 | 3.3 V to 5 V | ADC/DAC 数量 | 1 |
| 典型功耗（条件） | 374mW @ 105MSPS | 采样率（每秒） | 105M |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 工具类型/特性 | ADS6144 | 射频系列/标准 | ADS6144 |
| 使用的IC/零件 | ADS6144 | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
