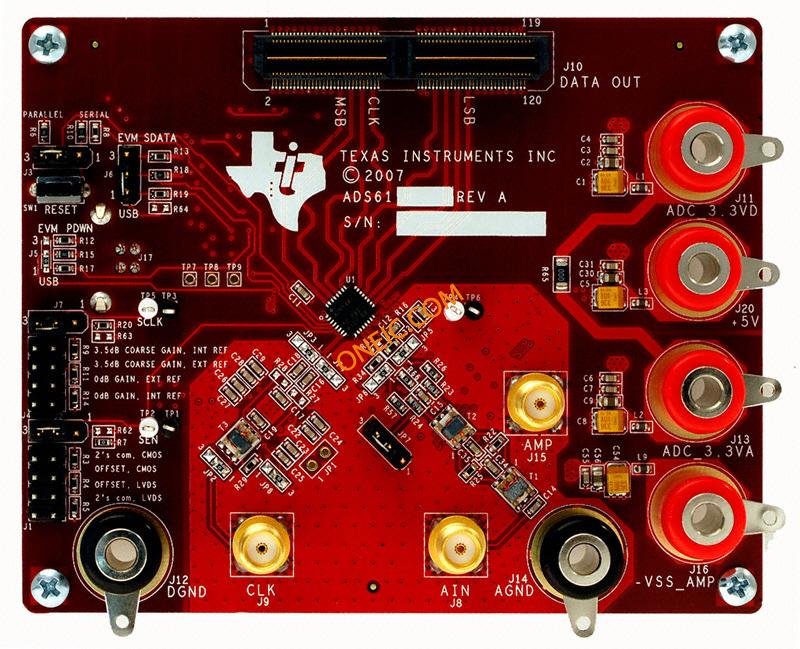

ADS6143EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Board For 14-Bits, 125/105/80/65 MSPS ADC With DDR LVDS/CMOS Outputs Data Conversion IC Development Tools ADS6143 Eval Mod ADS6143EVM |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Data Conversion IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | ||
电气参数
| 接口 | SMA | 输入范围 | 2 Vpp |
| 数据接口 | Serial, Parallel | 位数 | 14 |
| 供电电压 | 3.3 V to 5 V | ADC/DAC 数量 | 1 |
| 典型功耗（条件） | 318mW @ 80MSPS | 采样率（每秒） | 80M |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 工具类型/特性 | ADS6143 | 射频系列/标准 | ADS6143 |
| 使用的IC/零件 | ADS6143 | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号
ADS6143IRHBR
texas instruments
ADC Single Pipelined 80Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R Analog to Digital Converters - ADC Lo Pwr 14B 80MSPS Single ADC Pipelined 80Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R IC ADC 14BIT SER/PAR 80M 32VQFN
TSW1200EVM
texas instruments
High Speed LVDS Deserializer And Analysis System Data Conversion IC Development Tools TSW1200 High Speed ADC LVDS Eval System EVAL SYSTEM ADC LVDS
ADS6143IRHBT
texas instruments
ADC Single Pipelined 80Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R Single ADC Pipelined 80Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R IC ADC 14BIT 80MSPS 32-VQFN IC ADC 14BIT 80MSPS 32-QFN Analog to Digital Converters - ADC Lo Pwr 14B 80MSPS Low Power 14-bit 80MSPS ADC with selectable parallel CMOS or LVDS outputs
ADS6143IRHBTG4
texas instruments
ADC Single Pipelined 80Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R Single ADC Pipelined 80Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R IC ADC 14BIT SER/PAR 80M 32VQFN Analog to Digital Converters - ADC Lo Pwr 14B 80MSPS
ADS6143IRHBRG4
texas instruments
ADC Single Pipelined 80Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R Single ADC Pipelined 80Msps 14-bit Serial (3-Wire)/LVDS 32-Pin VQFN EP T/R IC ADC 14BIT SER/PAR 80M 32VQFN Analog to Digital Converters - ADC Lo Pwr 14B 80MSPS
