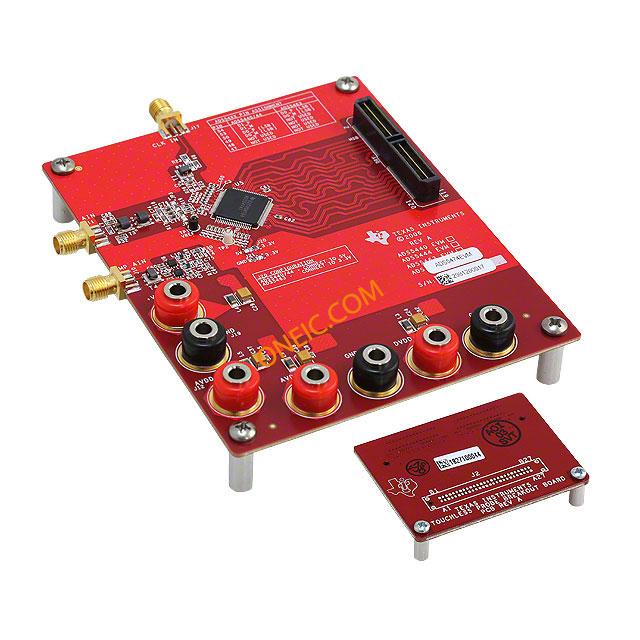

ADS5474EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Module For ADS5474 Data Conversion IC Development Tools ADS5474 Eval Mod EVAL MODULE FOR ADS5474 EVAL MODULE, ADS5474, 14BIT ADC |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Data Conversion IC Development Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 接口 | SMA | 输入范围 | 2.2 Vpp |
| 数据接口 | Serial | 位数 | 14 |
| 供电电压 | 3.3 V to 5 V | 元件数量 | :ADS5474 |
| ADC/DAC 数量 | 1 | 典型功耗（条件） | 2.5W @ 400MSPS |
| 采样率（每秒） | 400M | ||
机械参数
| 重量 | 0.2 | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :Evaluation Module for ADS5474 ADC Devices | 套件类型 | :Data Converter |
| 套件内容 | :- | 工具类型/特性 | ADS5474 |
| 射频系列/标准 | ADS5440 | 使用的IC/零件 | ADS5474 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :ADC |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
