ADS1625IPAPT

制造商	Texas Instruments Incorporated
描述	ADC Single Delta-Sigma 1.25Msps 18-bit Parallel 64-Pin HTQFP EP T/R Single ADC Delta-Sigma 1.25Msps 18-bit Parallel 64-Pin HTQFP EP T/R IC 18BIT 1.25MSPS ADC 64-HTQFP Analog to Digital Converters - ADC 18-Bit 1.25MSPS 1-Ch Delta-Sigma Single 18 Bit, 1.25MSPS Single Channel Delta-Sigma ADC Single
分类	集成电路数据转换器模数转换器

对参数有疑问？问 AI 助手

商业参数

产品	Analog to Digital Converters	其他名称	296-15209-2
产品类别	Analog to Digital Converters - ADC	标准包装数量	Tape & Reel
工厂包装数量	250	标准封装名称	QFP

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
零件状态	ACTIVE

电气参数

接口	Parallel	信噪比	93(Typ) dB
输入类型	Voltage	分辨率	18 Bit
输入信号	Differential	INL/DNL（LSB）	3.5LSB(Typ)
转换器类型	General Purpose	数据接口	Parallel
输入极性	Bipolar	位数	18
基准类型	Ext Int	额定电压	±4.4V
数据速率（最大）	1250 KSPs	输入数量	1
供电电压	2.7 V to 3.3 V, 4.75 V to 5.25 V	电压基准	Internal\|External
通道数量	1 Channel	采样频率	1.25 Msps
模拟输入/输出	5.25	最大额定电流	Catalog
ADC/DAC 数量	1	供电电源	Analog and Digital
平均正向功率	520	最大功耗	645 mW
模拟供电电压	4.75 V to 5.25 V	差分非线性	±0.5LSB(Typ)
数字供电电压	5.25	采样率（每秒）	1.25M
差分 - 输入:输出	Yes	信噪比，ADC/DAC（dB）典型值	93 dB

机械参数

宽度	10.2(Max)	高度	1 mm
长度	10 mm	重量	0.009108 oz
包装方式	Tape and Reel	引脚样式	Gull-wing
安装类型	Surface Mount	安装样式	SMD/SMT
封装形式	64HTQFP EP	总长度	10.2(Max)
包装数量	HTQFP EP	位数	64
外壳尺寸-插件	1.05(Max)	供应商器件封装	64-HTQFP (10x10)

产品信息

系列	ADS1625	产品特性	Internal Reference
软件	SBAS280E	架构	Delta-Sigma
制造商全称	Texas Instruments	开发套件	ADS1625EVM
功能框图	fbd_sbas280e.gif	使用的IC/零件	View
印刷电路板数量	64	A/D转换器数量	1
输入数量及类型	1 Differential, Bipolar

环境参数

测试温度

-40 to 85

工作温度

-40°C ~ 85°C

文档与媒体

PDF 文档

ADS1625/26

PDF 文档

1775272.pdf

相关型号

THS4130ID

texas instruments

SP Amp DIFF AMP Single ±16.5V/33V 8-Pin SOIC Tube Differential Amplifiers Ln Diff. In/Out IC OPAMP DIFF 225MHZ 8SOIC THS4130ID, Differential Amplifier 5V 225MHz 8-Pin SOIC SP Amp DIFF AMP Single ?16.5V/33V 8-Pin SOIC Tube IC, AMP DIFF, SMD, 4130, SOIC8 Fully Differential Input/Output Low Noise Amplifier With Shutdown 差分放大器, 5 V, 225MHz, 8引脚 SOIC封装

¥27.1800

详情

THS4130CD

texas instruments

SP Amp DIFF AMP Single ±16.5V/33V 8-Pin SOIC Tube IC OPAMP DIFF 225MHZ 8SOIC Differential Amplifiers Full Diff I/O Low N SP Amp DIFF AMP Single ?16.5V/33V 8-Pin SOIC Tube IC, AMP DIFF, LOW NOISE, SMD, SOIC8 Fully Differential Input/Output Low Noise Amplifier With Shutdown 差分放大器, 5 V, 225MHz, 8引脚 SOIC封装

¥27.1800

详情

THS4131ID

texas instruments

SP Amp DIFF AMP Single ±16.5V/33V 8-Pin SOIC Tube IC OPAMP DIFF 225MHZ 8SOIC THS4131ID, Differential Amplifier 5V 225MHz 8-Pin SOIC Differential Amplifiers 150MHz SP Amp DIFF AMP Single ?16.5V/33V 8-Pin SOIC Tube IC, I/O AMP, 150MHZ, 51V/US, SOIC-8 Fully Differential Input/Output Low Noise Amplifier 差分放大器, 5 V, 225MHz, 8引脚 SOIC封装

¥27.1800

详情

THS4131CDG4

texas instruments

SP Amp DIFF AMP Single ±16.5V/33V 8-Pin SOIC Tube IC OPAMP DIFF 225MHZ 8SOIC THS4131CDG4, Differential Amplifier 5V 225MHz 8-Pin SOIC Differential Amplifiers Fully Differential I/O Low Noise Amp SP Amp DIFF AMP Single ?16.5V/33V 8-Pin SOIC Tube IC, AMP DIFF, SMD, 4131, SOIC8 Fully Differential Input/Output Low Noise Amplifier

¥27.1800

详情

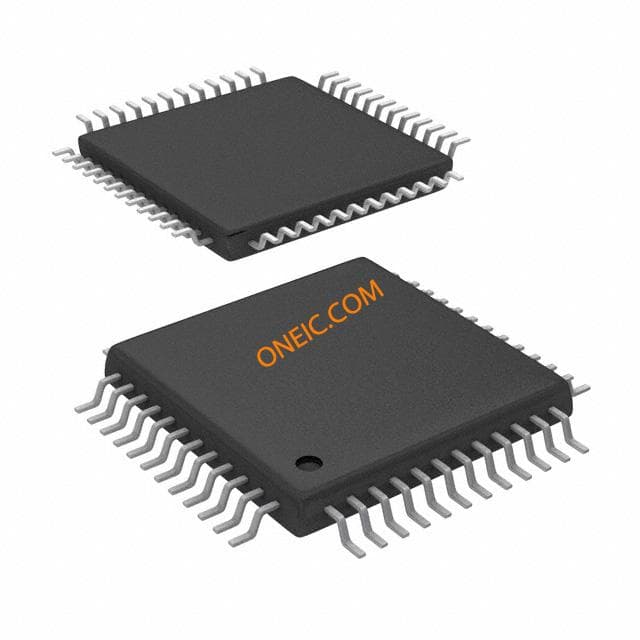

ADS1601IPFBT
