点击放大查看

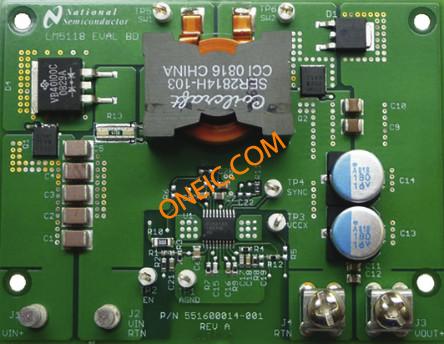

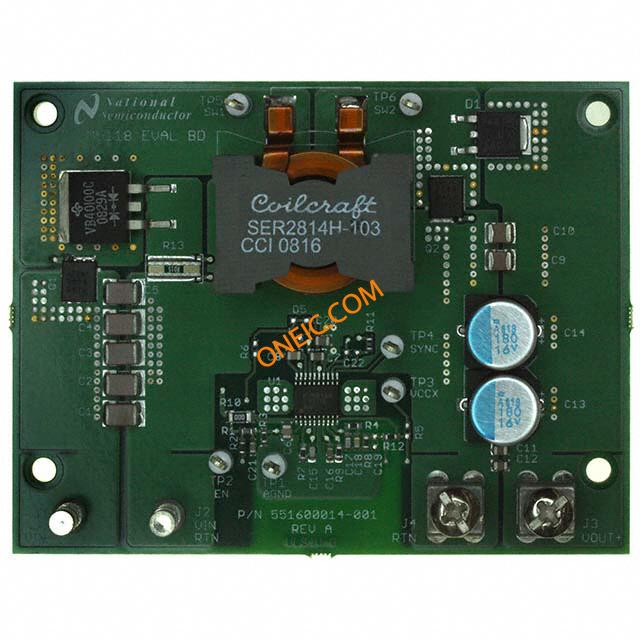

LM5118EVAL/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | . LM5118EVAL/NOPB - LM5118 - 1 Non-Isolated Output DC/DC, Step Up or Down Evaluation Board from Texas Instruments. from now! |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 84733020 | ||
电气参数
| 额定电压 | 5 V to 75 V | 输出电流 | 3 A |
| 元件数量 | :LM5118 | 稳压器拓扑 | Buck-Boost |
| 开关频率 | 300kHz | 最小输入电压 | 12V |
机械参数
| 重量 | 0.25 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :(Not Applicable) | 功能 | The LM5118 evaluation board is designed to provide the design engineer with a fully functional, Emulated Current Mode Control, buck-boost power converter to evaluate the LM5118 controller IC |
| 套件类型 | :Power Management | 技术 | Power Management |
| 套件内容 | Evaluation Board for LM5118 | 主要用途 | DC/DC, Step Up or Down |
| 卡标准 | Development Kit | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | LM5118 | 射频系列/标准 | LM5118 |
| 使用的IC/零件 | LM5118 | 芯片组制造商 | :Texas Instruments |
| 应用细节 | :Buck/Boost Controller | ||
环境参数
| 机械寿命 | New At Mouser | ||
