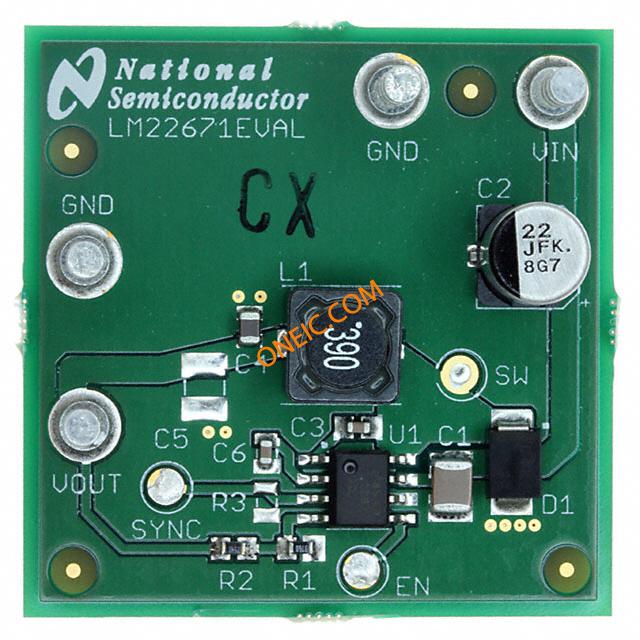

LM22671EVAL/NOPB
| 制造商 | |
| 描述 | . LM22671EVAL/NOPB - LM22671 SIMPLE SWITCHER® 1 Non-Isolated Output DC/DC, Step Down Evaluation Board from Texas Instruments. from now! |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85423990 |
电气参数
| 额定电压 | 4.5 V to 42 V | 输出电流 | 500 mA |
| 元件数量 | :LM22671 | 稳压器拓扑 | Buck |
| 开关频率 | 500kHz | 最小输入电压 | 3.3V |
机械参数
| 重量 | 0 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 1.5 in x 1.5 in | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 功能 | The LM22671 evaluation board is configured to provide an output voltage of 3.3V up to 500 mA load current with an input voltage range of 4.5V to 42V | 套件类型 | :Power Management |
| 套件内容 | :Evaluation Board for LM22671 Simple Switcher | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | LM22671 |
| 射频系列/标准 | LM22671 | 使用的IC/零件 | LM22671 |
| 适用产品/相关产品 | LM22671, LM22671-Q1, LM22674, LM22674-Q1 | ||
环境参数
| 机械寿命 | New At Mouser | 工作温度 | + 50 C |
