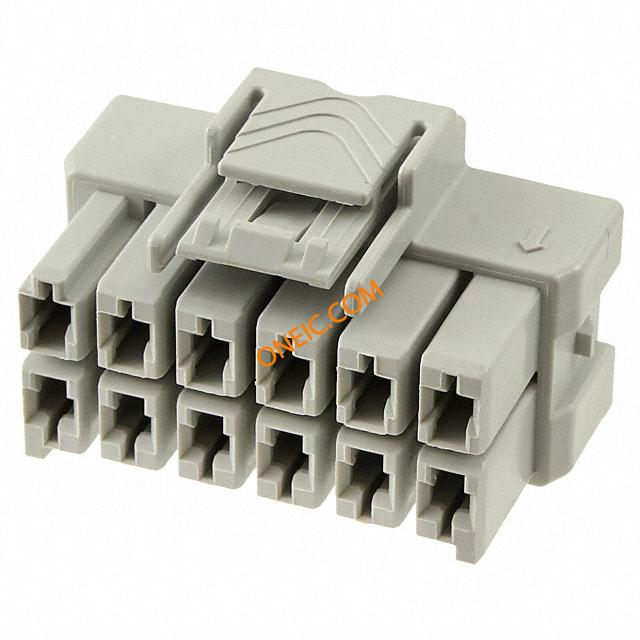

5-1971776-6
| 制造商 | |
| 描述 | Headers & Wire Housings 2x6 plug housing lgr Key A CONN PLUG HOUSING 12POS 6MM PTL 2X6 PLUG HSG HIGH TEMP KEY A LGR |
| 分类 |
商业参数
| 其他名称 | A118812 | 标准包装数量 | 1,000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 VAC, 600 VDC | 供电电压 | 600 |
| 中心频率 | 带有 | 连接器阻抗 | 压接 |
| 最大额定电流 | 20 A | ||
机械参数
| 颜色 | Natural | 间距 | 6 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 灰色 | 排间距 | 8.1 mm |
| 触头类型 | Female Blade Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug | 接触镀层 | Tin |
| 紧固类型 | Latch Holder | 安装样式 | Panel |
| 引脚数 | 12 | 排数 | 2 |
| 封装形式 | Plug | 触头材料 | Copper Alloy |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 面板安装类型 | 不带 |
| 端接样式 | 母端 | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
| 兼容外壳尺寸（如TM-700等） | CPA, 母端外壳, 母端（插座）端子, 端子锁定片 | 典型触点布局 | 矩阵 |
产品信息
| 备注 | Contacts Not Provided | 系列 | Power Triple Lock |
| 钥匙类型 | A | 产品子类型 | Wire Housings |
| 输出配置 | 直式 | 应用细节 | Wire-to-Board |
环境参数
| 测试温度 | 高温部件 - 非灼热丝 | 工作温度 | - 55 C to + 150 C |
