4-1394462-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | ソーラーコネクタ/光起電コネクタ Plus Fem Keyed 12AWG CONN FEMALE PLUS COUPLER 12AWG CONNECTOR,PHOTOVOLTAIC,SOLARLOK,CABLE Solar Connectors / Photovoltaic Connectors Plus Fem Keyed 12AWG Conn Female Cable Coupler 12AWG Conn Female Cable Coupler 12AWG Search Keywords:IEC 61215, 61646, Protection Class II, Photovoltaic Interconnection System, high voltage, high current, photovoltaic, solar, ground clip, solar panels, solar panel, ground PV panels, photovoltaics, solar cable, solar cable coupler, Photovoltaic Interconnection System, Decentralized junction box, residential combiner box, 5-string Combiner Box CONNECTOR,PHOTOVOLTAIC,SOLARLOK,CABLECOUPLER,1P,PLUSFEMALE,12AWG,4.5MMTO6MM Solarlok 12 AWG Plus Keying Female PV Installer Cable Connector PHOTOVOLT CONNEC.1P |
| 分类 |
商业参数
| 产品 | Cable Couplers | 交货时间 | 66 Days |
| 子类别 | Connector Photovoltaic | 产品类别 | Solar Connectors / Photovoltaic Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 25 A | ||
机械参数
| 间距 | Not Required mm | 壳体颜色 | 黑色 |
| 导线线规 | 12 | 端接方式 | Solder |
| 安装类型 | Straight | 连接器类型 | 电缆耦合器 |
| 安装样式 | Wire | 插入件材料 | 铜锌合金 |
| 壳体材料 | 聚苯醚 (PPO) | 包装数量 | 100 |
| 主要材料 | Photovoltaic | 端接样式 | Quick Connect |
| 触点数 | 1 | 绝缘直径 | 4.5 – 6 mm [ .177 – .237 in ] |
| 接触件表面处理 - 配合 | 银 | ||
产品信息
| 类型 | Female Coupler | 连接器性别 | Female |
| 系列 | SOLARLOK | 产品特性 | 12 AWG |
| 功能 | Plus Female, Keyed | 钥匙类型 | 加号 |
| 极性 | Positive | 编码、键控 | Plus |
| 制造商全称 | SOLARLOK | 产品子类型 | 连接器 |
环境参数
| 密封等级 | IP67 | ||
相关型号
1394461-3
te connectivity / amp
Conn Power Coupler M 1 POS ST Cable Mount 1 Terminal 1 Port SOLARLOK Connector System CONN MALE PLUS COUPLER 12AWG Cable Mount Solar Connector Power Coupler,Rated At 25A Solar Connectors / Photovoltaic Connectors CABLE COUPLER MALE PLUS KEYED 4.0 Conn Male Cable Coupler 12AWG Conn Male Cable Coupler 12AWG Product Highlights:ConnectorConnector Type = Cable CouplerMaleKeyedKeying = PlusSearch Keywords:IEC 61215, 61646, Protection Class II, Photovoltaic Interconnection System, high voltage, high current, photovoltaic, solar, ground clip, solar panels, solar panel, ground PV panels, photovoltaics, solar cable, solar cable coupler, Photovoltaic Interconnection System, Decentralized junction box, residential combiner box, 5-string Combiner Box PLUG, SOLARLOK, 4MM, POS CONNECTOR,PHOTOVOLTAIC,SOLARLOK,CABLECOUPLER,1POS.,MALE,PLUS,12AWG Connector: DC mains; Features: "+" marking; male; 4mm2 TE Connectivity 电缆安装 功率耦合器 太阳能面板接头 , 额定25A PHOTOVOLT CONN PIN PLUS 4 sq mm 12AWG
6-1394461-2
te connectivity / amp
Conn Power Coupler M 1 POS ST Cable Mount 1 Terminal 1 Port SOLARLOK Connector System CONN MALE COUPLER UNKEYED 12AWG Solar Connectors / Photovoltaic Connectors CABLE COUPLER MALE NOT KEYED 4.0 Conn Male Cable Coupler 12AWG Conn Male Cable Coupler 12AWG Product Highlights:ConnectorConnector Type = Cable CouplerMaleNot KeyedWire Size = 4.0² [12] mm² [AWG]Search Keywords:IEC 61215, 61646, Protection Class II, Photovoltaic Interconnection System, high voltage, high current, photovoltaic, solar, ground clip, solar panels, solar panel, ground PV panels, photovoltaics, solar cable, solar cable coupler, Photovoltaic Interconnection System, Decentralized junction box, residential combiner box, 5-string Combiner Box PLUG, SOLARLOK, 4MM, NEUTRAL CONNECTOR,PHOTOVOLTAIC,SOLARLOK,CABLECOUPLER,1POS.,MALE,12AWG Solarlok 12 AWG Neutral Keyed Male Cable Coupler Connector PHOTOVOLT CONN PIN NEUTRAL 4 s
1740210-3
te connectivity / amp
Connector Accessories Photovoltaic Connectors PNL MT RCPT 4MMsq PLASTIC NUT PLUS CONN MALE 12AWG INVERTED CONVER Solar Connectors / Photovoltaic Connectors PNL MT RCPT 4MMsq PLASTIC NUT PLUS PLUG & SOCKET CONNECTOR, PLUG, 1POS DCCONVERTERRECEPTACLE,W/FLATSEALANDPLASTICNUT,12AWG,4.0MM2,KEYING=PL

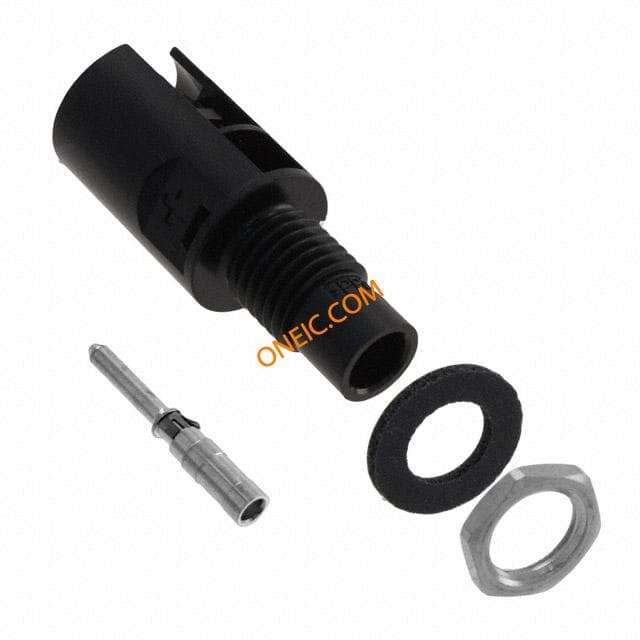

2120382-3
