点击放大查看

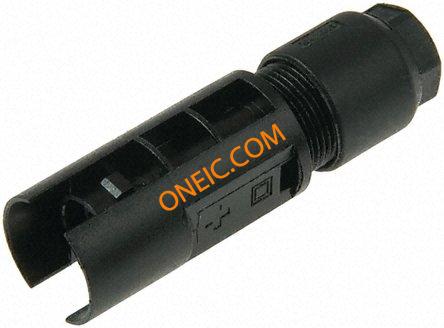

1394461-3

制造商	TE Connectivity Ltd.
描述	Conn Power Coupler M 1 POS ST Cable Mount 1 Terminal 1 Port SOLARLOK Connector System CONN MALE PLUS COUPLER 12AWG Cable Mount Solar Connector Power Coupler,Rated At 25A Solar Connectors / Photovoltaic Connectors CABLE COUPLER MALE PLUS KEYED 4.0 Conn Male Cable Coupler 12AWG Conn Male Cable Coupler 12AWG Product Highlights:ConnectorConnector Type = Cable CouplerMaleKeyedKeying = PlusSearch Keywords:IEC 61215, 61646, Protection Class II, Photovoltaic Interconnection System, high voltage, high current, photovoltaic, solar, ground clip, solar panels, solar panel, ground PV panels, photovoltaics, solar cable, solar cable coupler, Photovoltaic Interconnection System, Decentralized junction box, residential combiner box, 5-string Combiner Box PLUG, SOLARLOK, 4MM, POS CONNECTOR,PHOTOVOLTAIC,SOLARLOK,CABLECOUPLER,1POS.,MALE,PLUS,12AWG Connector: DC mains; Features: "+" marking; male; 4mm2 TE Connectivity 电缆安装功率耦合器太阳能面板接头 , 额定25A PHOTOVOLT CONN PIN PLUS 4 sq mm 12AWG
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

产品	Cable Couplers	交货时间	59 Days
子类别	Connector Photovoltaic	产品类别	Solar Connectors / Photovoltaic Connectors
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85366910
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant

电气参数

最大额定电流

25A

连接器类型 - 电压输入

"+" marking

机械参数

深度	18 mm	间距	Not Required mm
重量	0.02	涂层	Plus Keyed
材料（通用）	:PPO	包装方式	Bulk
导线线规	12	端接方式	Press-Fit
外壳颜色	Black	安装类型	Cable Mount
连接器类型	Cable Coupler	接触镀层	Silver Plate
安装样式	Wire	触头材料	Copper Zinc
壳体材料	PPO	包装数量	100
主要材料	Photovoltaic	端接样式	Quick Connect
连接器颜色	:Black	触点数	1 POS
接触件端接	:Crimp	线规或范围 - mm²	4.0Â² [12]
第一连接器安装类型	:Cable

产品信息

SPG	3	类型	Power Coupler
连接器性别	M	系列	:SOLARLOK
产品特性	12 AWG	功能	Solarlok connector
钥匙类型	Plus	极性	Positive
编码、键控	Yes	制造商全称	SOLARLOK
产品子类型	Connector	端口数	1 Port
单元数量	1	应用细节	for photovoltaic modules

环境参数

密封等级	IP67	工作温度	+105°C
结工作温度	105C
