点击放大查看

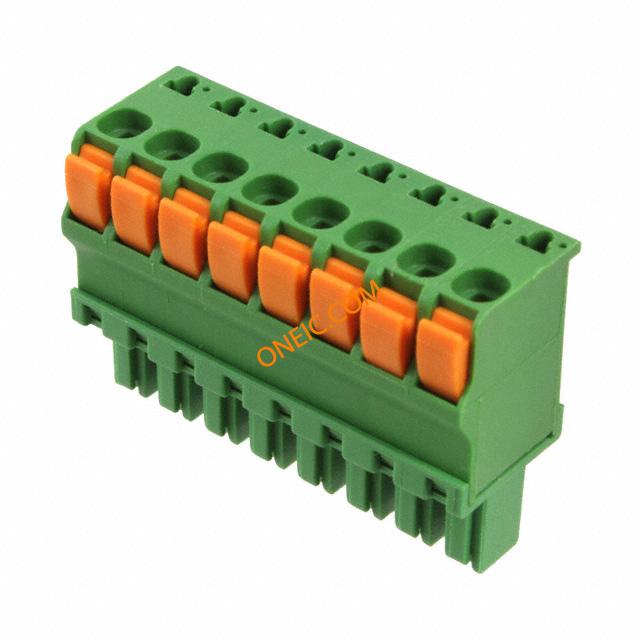

1986720-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | プラグ着脱可能ターミナルブロック 3.81MM R/HAND 8 POS STR SPRING PLG TERM BLOCK PLUG 8POS STR 3.81MM Pluggable Terminal Blocks 3.81MM R/HAND 8 POS STR SPRING PLG STR PLUG SPRING TYPE RH 8P, 3.81mm STR PLUG SPRING TYPE RH 8P, 3.81mm Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, PLUG, 8POS, 30-14AWG |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 标准包装规格 | 100 |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 电流 | 9A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 11 A |
机械参数
| 颜色 | Green | 间距 | 0.150" (3.81mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 引脚样式 | Top | 导线线规 | 14-30 AWG |
| 端接方式 | Screwless - Cage/Tension Clamp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | :Pluggable Terminal Block | 接触镀层 | Tin |
| 插头进线方向 | 180° | 壳体材料 | Polyamide (PA) |
| 端接样式 | Push-In | 触点数 | 8 |
| 位数 | 8 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 30-14 | 线规或范围 - mm² | 30 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Plug, Right Hand | 系列 | :- |
| 产品特性 | Side Stacking | 层数 | 1 |
| 每层位数 | 8 | ||
