点击放大查看

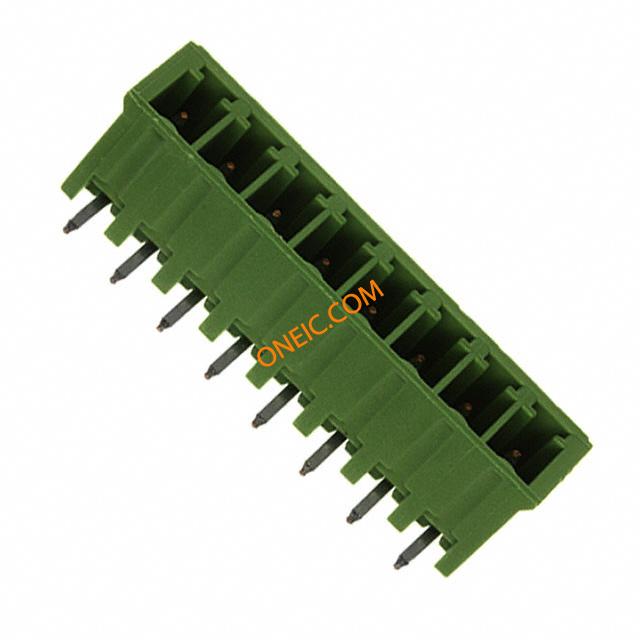

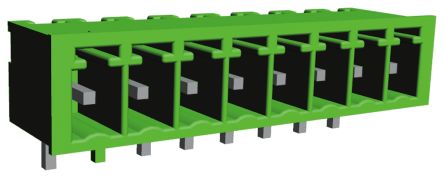

284513-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 8 POS 3.81mm Solder RA Thru-Hole Pluggable Terminal Blocks HDR 08P R/A GRN C/E Terminal Block Connectors TERM BLOCK HDR 8POS R/A 3.81MM Conn Shrouded Header HDR 8 POS 3.81mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 3.81mm 节距 8 路 公 绿色 直 PCB 管座, 印刷电路板安装, 螺钉端接 8 POS TERMI-BLOK HDR 900 POL. |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 11A | 电压 | 300V |
| 额定电压 | 300 VAC | 额定交流电压 | 300 |
| 最大额定电流 | 11 A | 最小供电电压 | 300VAC |
机械参数
| 颜色 | Green | 深度 | 9.2 mm |
| 间距 | 3.81 mm | 宽度 | 9.2mm |
| 高度 | 7.3 mm | 长度 | 32.77mm |
| 材料（通用） | 尼龙 | 端部样式 | 带有 |
| 包装方式 | Bulk | 壳体颜色 | 绿色 |
| 引脚样式 | Right angle | 方向 | 直 |
| 端接方式 | Solder | 引脚长度（针脚） | 3.4 mm [ .134 in ] |
| 第二连接器 | 否 | 外壳颜色 | Green |
| 安装类型 | Right | 连接器类型 | 公插 |
| 接触镀层 | Tin | 法兰特征 | 是 |
| 安装样式 | Through Hole | 排数 | 1 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 32.77 mm |
| 包装数量 | 100 | 端接排数 | 螺钉 |
| 端接样式 | Screw | 排针方向 | 90°, Right Angle |
| 触点数 | 8 | 位数 | 8 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | 螺纹/螺钉/孔尺寸 | 不带 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | Buchanan | 层数 | 1 |
| 互连系统 | 不带 | 每层位数 | 8 |
| 并排堆叠 | 否 | ||
相关型号
284509-8
te connectivity / amp
Conn Terminal Block F 8 POS 3.81mm Screw RA Cable Mount 11A/Contact Pluggable Terminal Blocks 8P TERMI-BLOK PLUG STACK 3,8 Terminal Block Connectors TERM BLOCK PLUG 8POS STR 3.81MM 8P TERMI-BLOK PLUG STACK 3,8 8P TERMI-BLOK PLUG STACK 3,8 Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end

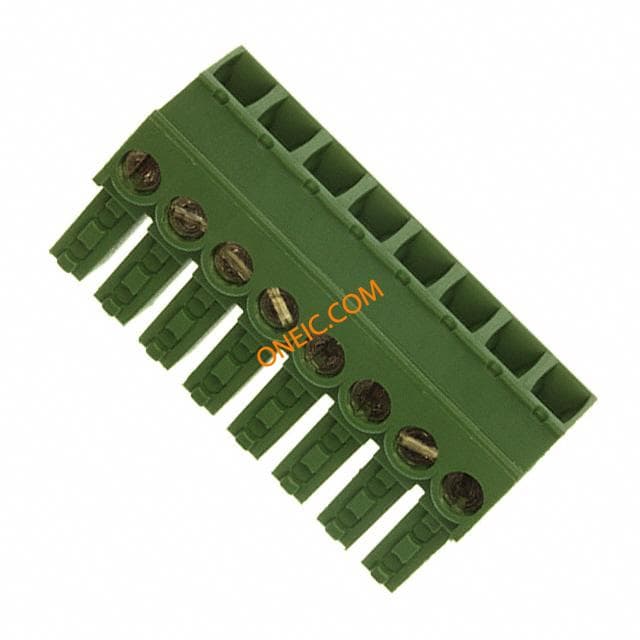

284507-8
te connectivity / amp
Conn Terminal Block PL 8 POS 3.81mm Solder RA Thru-Hole 11A/Contact Terminal Block Connectors TERM BLOCK PLUG 8POS STR 3.81MM Pluggable Terminal Blocks 8 POS TERMI-BLOK PLU Conn Terminal Blocks PL 8 POS 3.81mm Solder RA Thru-Hole 11A/Contact Conn Terminal Block PL 8 POS 3.81mm Solder RA Thru-Hole 11A/Contact Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 3.81mm 节距 8 路 公 绿色 直 插头, 电缆安装, 螺钉夹端接 8 POS TERMI-BLOK PLUG STAC 3,8

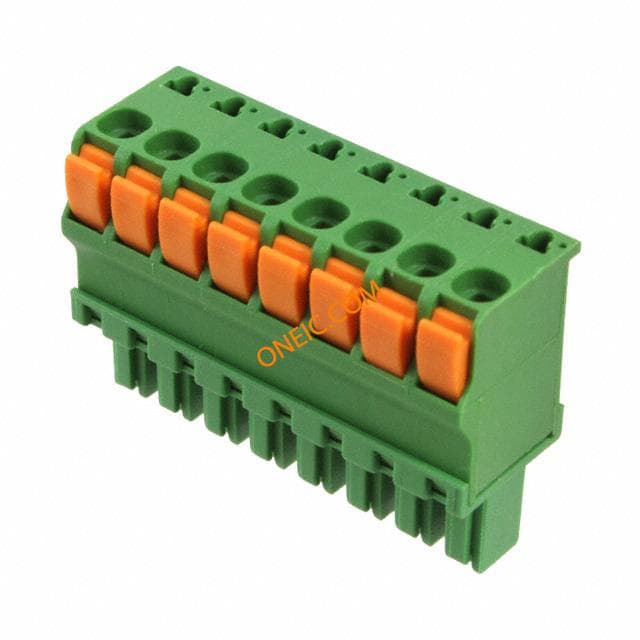

1986720-8
TE Connectivity
プラグ着脱可能ターミナルブロック 3.81MM R/HAND 8 POS STR SPRING PLG TERM BLOCK PLUG 8POS STR 3.81MM Pluggable Terminal Blocks 3.81MM R/HAND 8 POS STR SPRING PLG STR PLUG SPRING TYPE RH 8P, 3.81mm STR PLUG SPRING TYPE RH 8P, 3.81mm Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, PLUG, 8POS, 30-14AWG

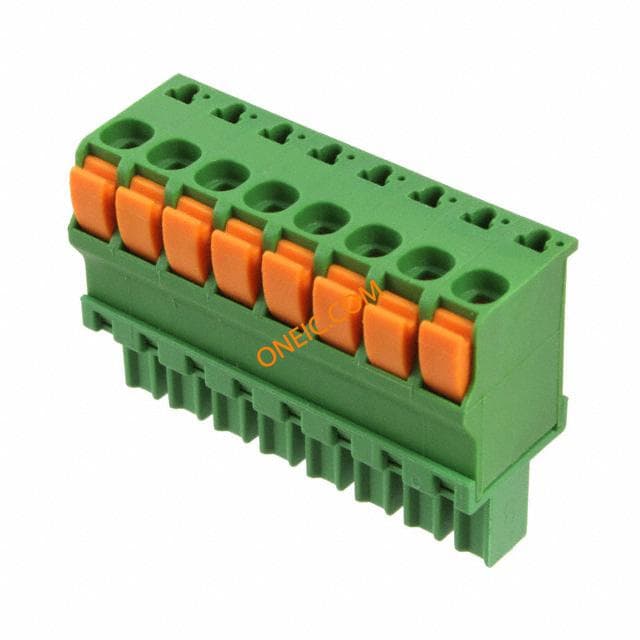

1986722-8
