点击放大查看

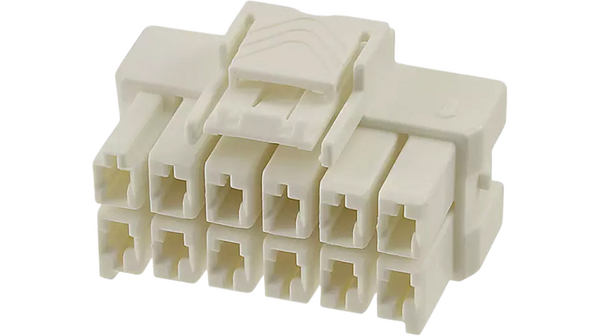

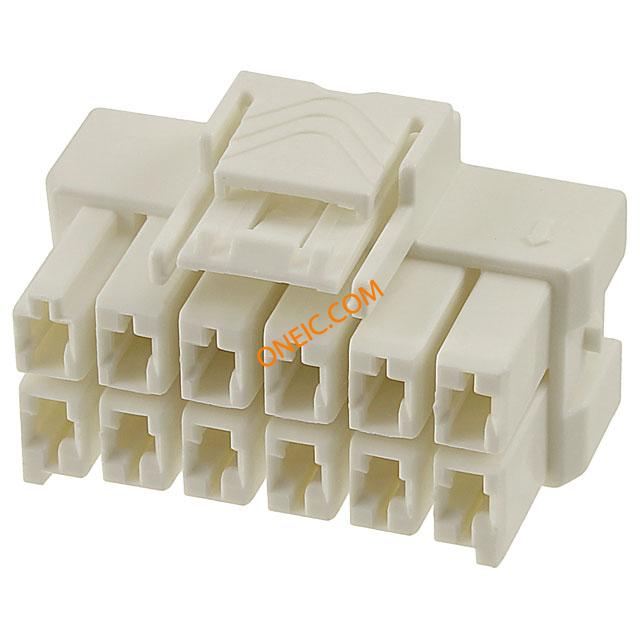

1-1971776-6
| 制造商 | |
| 描述 | Headers & Wire Housings 2x6 plug housing Key A nat 2X6 PLUG HOUSING KEY A NAT Male Housing Pitch6 mm Poles 2 x 6 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971776-6, TE Connectivity PTL 2X6 PLUG HSG STD TEMP KEY A NAT |
| 分类 |
商业参数
| 其他名称 | A117183 | 标准包装数量 | 1,000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 VAC, 600 VDC | 极数 | 2 x 6 |
| 供电电压 | 600 | 中心频率 | 带有 |
| 连接器阻抗 | 压接 | 最大额定电流 | <20 A |
| 连接器类型 - 电压输入 | Receptacle | ||
机械参数
| 颜色 | Natural | 间距 | 6 mm |
| 包装方式 | Bulk | 壳体颜色 | Natural |
| 排间距 | 8.1 mm | 触头类型 | Female Blade Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Latch Holder |
| 安装样式 | Panel | 引脚数 | 12 |
| 排数 | 2 | 封装形式 | Plug |
| 外壳材料（壳体） | 插头 | 连接器样式 | Multi row |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 面板安装类型 | 不带 |
| 端接样式 | 母端 | 连接器颜色 | natural |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 兼容外壳尺寸（如TM-700等） | CPA, 母端外壳, 母端（插座）端子, 端子锁定片 |
| 典型触点布局 | 矩阵 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Cap Housing |
| 系列 | Power Triple Lock | 钥匙类型 | A |
| 产品子类型 | Wire Housings | 连接方式 | Wire-Wire |
| 输出配置 | 直式 | 应用细节 | Wire-to-Board |
环境参数
| 工作范围 | 不密封 | 测试温度 | 标准件 - 非灼热丝 |
| 工作温度 | - 55 C to + 105 C | ||
文档与媒体
相关型号
1971785-1
TE Connectivity
CONN CONT RCPT 22AWG Headers & Wire Housings 22 AWG PhosBr Rcpt Contact Terminal 1971785-1 Contact SKT Crimp ST Cable Mount CONTACT, SOCKET, 22AWG, CRIMP CONTACT, SOCKET, 22 AWG, CRIMP Contact;Socket;Crimp;22AWG;PowerTripleLock;TinoverCopperAlloy Crimp contact, 5 A, 22 AWG, 1971785-1, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接触点, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG
1971785-2
TE Connectivity/AMP Brand
Receptacle contact, 22 Awg Headers & Wire Housings 22 Awg Receptacle contact RECEPTACLE CONTACT 22 AWG Power Triple Lock Tin Plated 20 - 22 AWG Crimp Socket Receptacle Crimp contact, 5 A, 22 AWG, 1971785-2, TE Connectivity TE Connectivity Power Triple Lock 系列 母 压接接线端子, 压接, 镀锡触点 PTL RECEPTACLE CONTACT, 20 - 22 AWG
1971789-1
TE Connectivity/AMP Brand
CPA ConnectorPositionAssurance(CPA);PowerTripleLockAccessory;600VAC/600VDC; Connector locking, 7.6 mm, red, 1971789-1, TE Connectivity

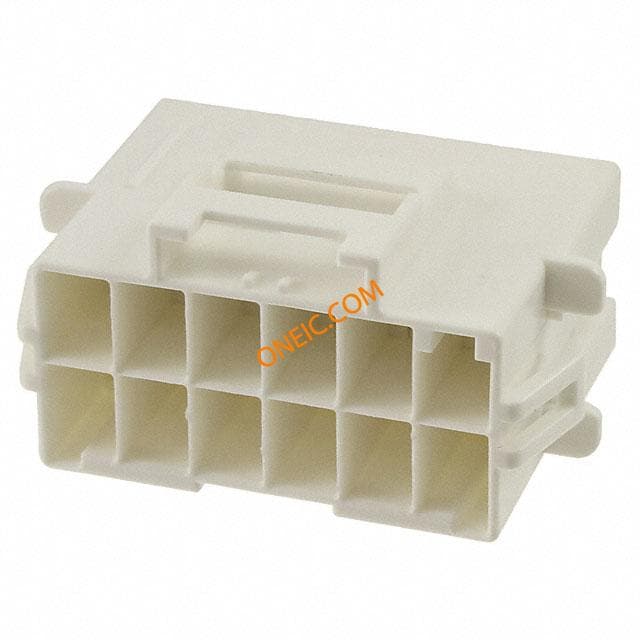

1-1971775-6
TE Connectivity
Headers & Wire Housings 2x6 cap housing panel mt Key A nat 2X6 CAP HOUSING PANEL MOUNT KEY Female Housing Pitch6 mm Poles 2 x 6 Multi row / for panel mount Power Triple Lock, 1-1971775-6, TE Connectivity PTL 2X6 CAP PANEL MT STD TEMP KEY A NAT

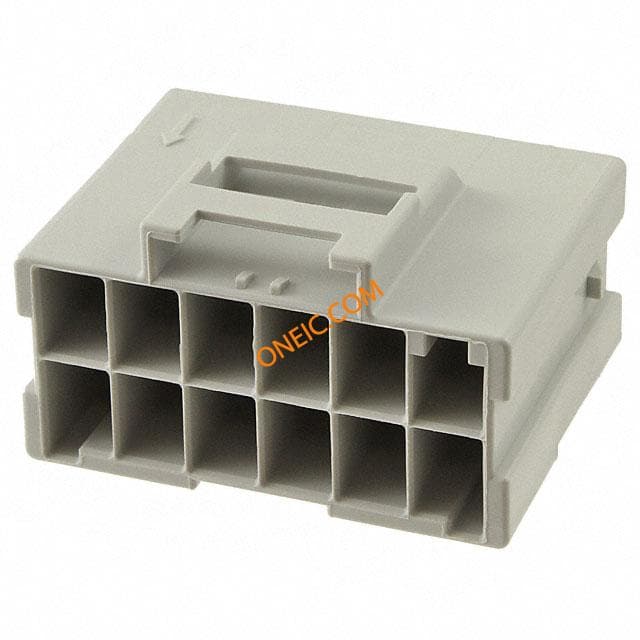

5-1971774-6
TE Connectivity
Headers & Wire Housings 2x6 cap housing lgr free hanging Key A CONN RCPT HOUSING 12POS 6MM PTL 2X6 CAP FREE HANG HITEMP KEY A LGR

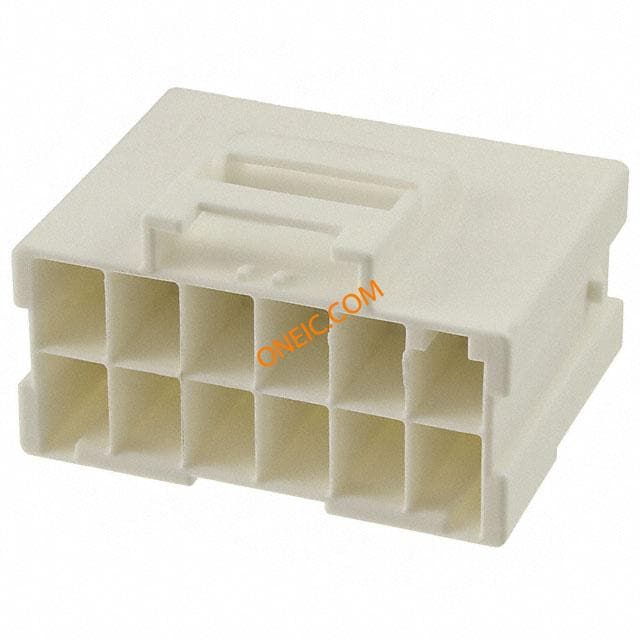

1-1971774-6
TE Connectivity
Headers & Wire Housings 2x6 cap housing Key A free hang nat 2X6 CAP HOUSING FREE HANGING KEY Female Housing Pitch6 mm Poles 2 x 6 Multi row / Free hanging/cable mount Power Triple Lock, 1-1971774-6, TE Connectivity PTL 2X6 CAP FREE HANG STD TEMP KEY A NAT

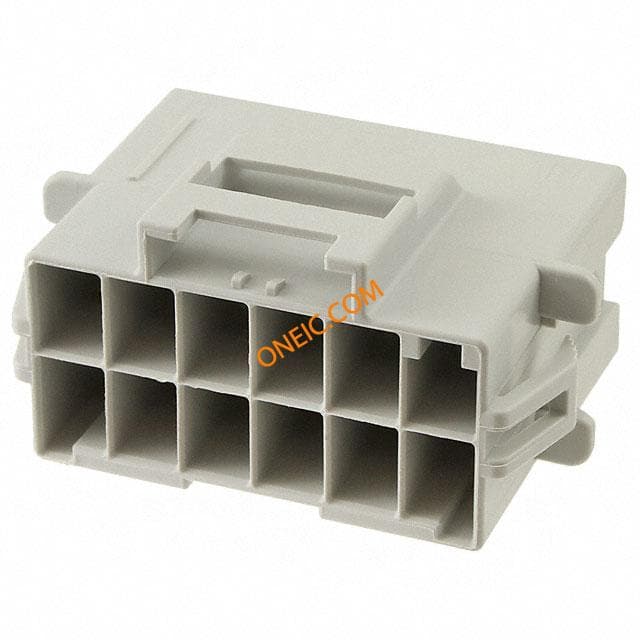

5-1971775-6
