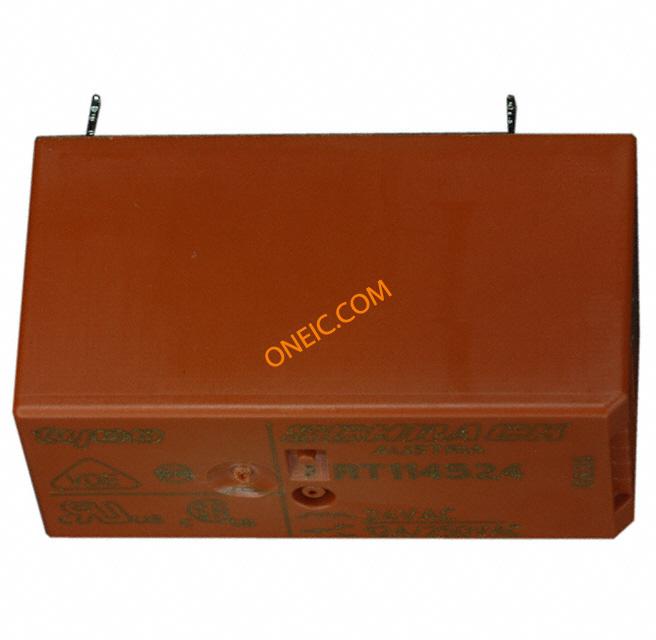

RT114524
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays SPDT 12Amps 24VAC RELAY GEN PURPOSE SPDT 12A 24V SPDT PCB relay, 3.5mm pin, 12A 24Vac Electromechanical Relay SPDT 12A 24VAC 350Ohm Through Hole Electromechanical Relay SPDT 12A 24VAC 350Ohm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemInput Voltage = 24 VAC RELAY, PCB, SPCO, 24VAC SPDTRELAY,12A24VAC TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 24V RT114524 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 零件号别名 | 1-1393239-7 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364900 |
| 认证机构 | :BEAB, CSA, KEMA-KEUR, VDE | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 0.76 VA |
| 量程（°/s） | :TE - Power PCB Relay RT1 Series | 释放时间 | 6ms |
| 额定电压 | :250VAC | 线圈电阻 | 350 Ohms |
| 极数 | :1 | 输出电流 | :12A |
| 供电电压 | 24 VAC | 开关电压 | 400VAC - Max |
| Vgs(th)（最大）@ Id | 3.6 VAC | 击穿电压 | :5000V |
| 最大额定电流 | :12A | 输出浪涌功率 | 3 kVA |
| 触点电压（最大） | :250V | 最大触点电流 | :12A |
| 平均正向功率 | 0.75 VA | 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VAC |
| 触点额定电流 | 12A | 额定交流电压（相对地/中性线） | :250V |
机械参数
| 深度 | 12.7mm | 宽度 | 12.7 mm |
| 高度 | 15.7 mm | 长度 | 29 mm |
| 重量 | 0.03 | 包装方式 | Tube |
| 触点形式 | 1 Form C (SPDT-BM) | 高度（最大） | :15.7mm |
| 引脚间距 | :3.5mm | 柱间距 | :7.5mm |
| 安装类型 | Through Hole | 端子类型 | Through Hole |
| 安装样式 | PCB | 引脚数 | :5 |
| 触头材料 | Silver Nickel | 端接样式 | PC Pin |
| 接触件端接 | Terminals | 典型触点布局 | SPDT |
产品信息
| 类型 | Power Relay | 系列 | RT1 |
| 产品特性 | Insulation - Class F, Sealed - Flux Protection | 继电器类型 | General Purpose |
| 应用细节 | Power | ||
环境参数
| 动作时间 | 8ms | 工作温度 | -40°C ~ 70°C |
文档与媒体
PDF 文档
