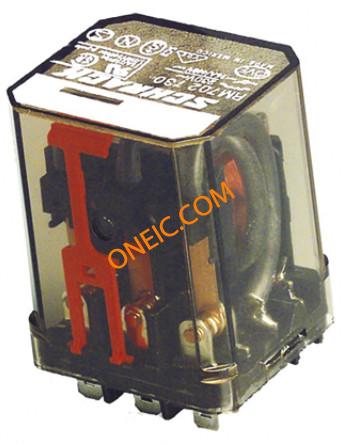

RM702024
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays Relay 3PDT 16A RELAY GEN PURPOSE 3PDT 16A 24V Relay,E-Mech,Power,3PDT,Cur-Rtg16A Electromechanical Relay 3PDT 40A 24VDC 345Ohm Plug-In Electromechanical Relay 3PDT 40A 24VDC 345Ohm Plug-In Product Highlights:RM2/3/7 SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 16 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, 3PDT, 24VDC, 16A, PLUG IN Relay;E-Mech;Power;3PDT;Cur-Rtg16A;Ctrl-V24DC;Vol-Rtg400AC;SocketMnt RM702024 |
| 分类 |
商业参数
| 零件号别名 | 8-1393146-5 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | cULus,VDE,RoHS |
| 海关税号 | 85364900 | 零件状态 | 8-1393146-5 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1.7 W |
| 量程（°/s） | :TE - RM7 Series | 线圈电流 | 70.8mA |
| 释放时间 | 10ms | 额定电压 | 400VAC |
| 线圈电阻 | 345 Ohms | 承载电流 | :16A |
| 输出电流 | :16A | 供电电压 | 380 VAC, 440 VAC |
| 开关电压 | 440VAC - Max | Vgs(th)（最大）@ Id | 2.4 VDC |
| 最大额定电流 | 16A | 触点电压（最大） | :400V |
| 平均正向功率 | 1600 mW | 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC |
| 触点额定电流 | 16A | 驱动电压（最大Rds On，最小Rds On） | 24VDC |
机械参数
| 深度 | 1.406in | 宽度 | 38.5 mm |
| 高度 | 48.5 mm | 长度 | 35.5 mm |
| 重量 | 0.091 | 包装方式 | Bulk |
| 端接方式 | QuickConnect | 触点形式 | 3 Form C (3PDT-BM) |
| 安装类型 | Socketable | 端子类型 | Quick Connect |
| 安装样式 | Quick Connect | 触头材料 | Silver Cadmium Oxide |
| 尺寸/外形 | 1.532in.Lx1.406in.Wx1.907in.H | 端接样式 | Quick Connect |
| 接触件端接 | Terminals | 典型触点布局 | 3PDT |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | RM2/3/7 |
| 产品特性 | Mechanical Indicator | 功能 | Power |
| 继电器类型 | General Purpose | 制造商全称 | RM7Series |
| 应用细节 | Power | ||
环境参数
| 动作时间 | 15ms | 工作温度 | -45°C ~ 60°C |
