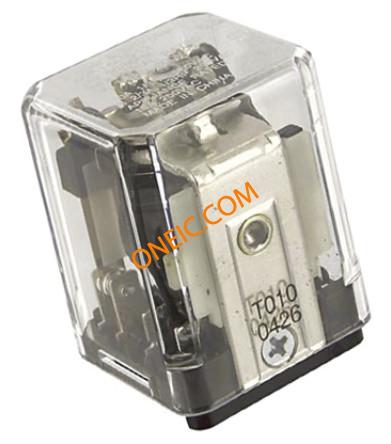

KUP-14D35-24
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 3PDT W/ LAMP 24VDC RELAY GEN PURPOSE 3PDT 10A 24V Relay,E-Mech,GenPurp,3PDT,Cur-Rtg10A Electromechanical Relay 3PDT 10A 24VDC 472Ohm Socket Electromechanical Relay 3PDT 10A 24VDC 472Ohm Socket Product Highlights:KUP SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, 3PDT, 24VDC, 10A, PLUG IN Relay;E-Mech;GenPurp;3PDT;Cur-Rtg10A;Ctrl-V24DC;Vol-Rtg120/28AC/DC;11Pin KUP-14D35-24=KU |
| 分类 |
商业参数
| 交货时间 | 45 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 2-1393118-7 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | No | 标准 | UL,CSA,RoHS |
| 海关税号 | 85364900 | 零件状态 | 2-1393118-7 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1.25 W |
| 量程（°/s） | :TE - KUP Series | 线圈电流 | 51 mA |
| 释放时间 | 10ms | 额定电压 | 240VAC |
| 线圈电阻 | 472 Ohms | 承载电流 | :10A |
| 输出电流 | :10A | 供电电压 | 24 V |
| 开关电压 | 240VAC - Max | 最大额定电流 | 10A |
| 触点电压（最大） | :240V | 平均正向功率 | 1.2 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC | 触点额定电流 | 10A |
| 数字供电电压 | :32V | 驱动电压（最大Rds On，最小Rds On） | 24VDC |
机械参数
| 深度 | 1.406in | 宽度 | 35.7 mm |
| 高度 | 48.4 mm | 长度 | 38.9 mm |
| 重量 | 0.086 | 包装方式 | Tray | Box |
| 端接方式 | QuickConnect | 触点形式 | 3 Form C (3PDT-BM) |
| 安装类型 | Socketable | 端子类型 | Quick Connect |
| 安装样式 | Panel | 引脚数 | 9 |
| 触头材料 | Silver Cadmium Oxide | 尺寸/外形 | 1.532in.Lx1.406in.Wx1.907in.H |
| 端接样式 | Plug In, QC - 0.187" (4.7mm) | 接触件端接 | Quick Connect |
| 典型触点布局 | 3PDT | ||
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KUP |
| 产品特性 | Incandescent Indicator | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | KUPSeries |
| 行业别名 | 2-1393118-7, KUP-14D35-24 | 应用细节 | General Purpose |
环境参数
| 动作时间 | 15ms | 工作温度 | -45°C ~ 70°C |
