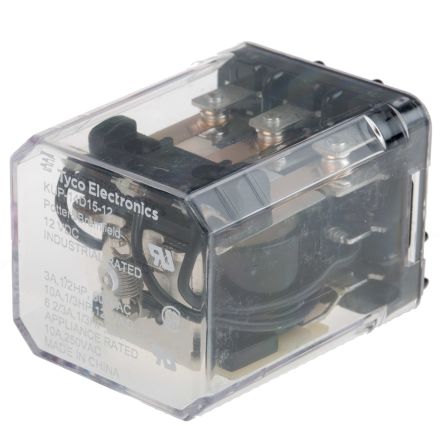

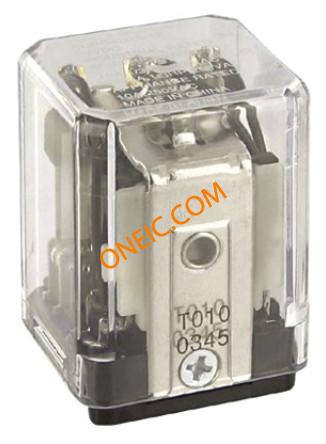

KUP-14D15-12

点击放大查看

KUP-14D15-12

制造商
TE Connectivity Ltd.
描述General Purpose Relays 3PDT PLAIN 12VDC RELAY GEN PURPOSE 3PDT 10A 12V Relay,E-Mech,GenPurp,3PDT,Cur-Rtg10A Electromechanical Relay 3PDT 10A 12VDC 120Ohm Socket Electromechanical Relay 3PDT 10A 12VDC 120Ohm Socket Product Highlights:KUP SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode Relay;E-Mech;GenPurp;3PDT;Cur-Rtg10A;Ctrl-V12DC;Vol-Rtg120/28AC/DC;11Pin TE Connectivity 3 刀双掷 DIN Rail 非闭锁继电器, 12V dc KUP-14D15-12=KU
分类
电容器薄膜电容器金属化聚丙烯薄膜电容器
对参数有疑问？问 AI 助手

商业参数

交货时间94 Days子类别Electromechanical Relay
零件号别名1-1393118-3产品类别General Purpose Relays
标准包装数量25工厂包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
零件状态1-1393118-3

电气参数

线圈类型Monostable线圈功率1.2 W
线圈电流100 mA释放时间10ms
输入功率1200核心电压1500 – 2500
额定电压240VAC线圈电阻120 Ohms
浪涌电流10供电电压12 V
开关电压240VAC - Max连接器阻抗3 Form C (CO)
跳闸电流10最大额定电流10A
输出1频率单稳态、直流额定电流（安培）5 – 10, 16
绝缘电阻2200平均正向功率1.2 W
集电极-发射极饱和电压（最大）@ Vge, Ic9 VDC触点额定电流10A
输出源/灌电流300mA @ 12V初始电阻（最小）100
放电电流（最大）（8/20µs）10驱动电压（最大Rds On，最小Rds On）12VDC

机械参数

深度1.406in宽度35.7 mm
高度48.4 mm长度38.9 mm
重量85 g [ 2.988 oz ]包装方式Tray | Box
端接方式QuickConnect触点形式3 Form C (3PDT-BM)
高度（最大）40 – 50致动器类型DC
安装类型Socketable端子类型Quick Connect
安装样式Panel引脚数11
触头材料Silver Cadmium Oxide尺寸/外形1.532in.Lx1.406in.Wx1.907in.H
端接样式Plug In, QC - 0.187" (4.7mm)触点数3
初级绕组UL 线圈绝缘类 B接触件端接Quick Connect
介电材料1200宽度/横截面30 – 40
典型触点布局3PDT第一连接器安装类型插座

产品信息

类型Ice Cube Style Relay系列KUP
产品特性Insulation - Class B功能GeneralPurpose
继电器类型General Purpose应用领域通用
制造商全称KUPSeries行业别名1-1393118-3, KUP-14D15-12
应用细节General Purpose

环境参数

动作时间15ms防护等级RTI
工作温度-45°C ~ 70°C初始介电强度1200

文档与媒体

在线文档
KUP-14D15-12?RQPN=KUP-14D15-12

相关型号

2-1419106-5

2-1419106-5

te connectivity / p&b

Conn Relay Socket SKT 11 POS Screw ST Panel Mount 27E893 SOCKET RELAY DIN RAIL MNT KU Conn Relay Socket SKT 11 POS Screw ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = ScrewWithout Grounding ProvisionSearch Keywords:relay connectors

详情
1-1437683-7

1-1437683-7

te connectivity / amp

Interface Module 11 POS Terminal Block Interface Modules 608BS=ASSEMBLY Custom Terminal Blocks CONN INTERFACE MOD 11PS 14-22AWG Square Socket Interface Module SKT 11 POS Square Socket Interface Module SKT 11 POS Product Highlights:Interface Module - Terminal BlockModule Type = Square Socket11 PositionsUsed With 3PDT RelaySNAPTRACK Channel Series TK [2D]Search Keywords:DIN rail, ready-to-wire, field wiring, panel mount,

¥265.5264
详情
27E305

27E305

te connectivity / p&b

Conn Relay Socket SKT 11 POS Solder ST Thru-Hole Relay Sockets & Hardware SOCKET NYL FOR KU SER PCB SOCKET NYL FOR KU SER PCB Conn Relay Socket SKT 11 POS Solder ST Thru-Hole Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = PCTerminal Length = 4.67 mm 27E305=SOCKET,KU,11,PC,NYL,N

¥13.0560
详情
27E121

27E121

TE Connectivity / P&B

Relay Sockets & Hardware SCRW TERM KUP SOCKET RELAY SCREW TERM KU Conn Relay Socket SKT 3 POS Screw ST Panel Mount Conn Relay Socket SKT 3 POS Screw ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = ScrewWithout Grounding Provision RELAY SOCKET Socket,Relay;ScrewTerm;1-3Pole;RoHSCompliant,ELVCompliant 27E121=SOCKET,KUP,11,SCW,PLE

¥39.1680
详情
27E067

27E067

TE Connectivity / P&B

Relay Sockets & Hardware 11P QC SOCKET SOCKET SP-3P KU SERIES Conn Relay Socket SKT 3 POS Solder ST Panel Mount Conn Relay Socket SKT 3 POS Solder ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = 4.75 [.187] Quick-ConnectWithout Grounding Provision Socket,Relay;QuickConnect;1to3;PotterandBrumfieldBrand 27E067=SOCKET,KU,11,QC.187,NY

¥18.5640
详情
27E396

27E396

TE Connectivity / P&B

Relay Sockets & Hardware 1-3 POLE QC SOCKET SOCKET RELAY 1-3 POLES QC Socket,Relay,QuickConnect,1to3 Conn Relay Socket SKT 3 POS Screw ST Panel Mount Conn Relay Socket SKT 3 POS Screw ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = 4.75 [.187] Quick-ConnectWithout Grounding Provision RELAY SOCKET Socket,Relay;QuickConnect;1to3;PotterandBrumfieldBrand 27E396=SOCKETS

¥16.3880
详情
27E043

27E043

te connectivity / p&b

Conn Relay Socket SKT 3 POS Solder ST Panel Mount Relay Sockets & Hardware 11P PCB SOCKET SOCKET SOLDER FOR KU RELAYS Conn Relay Socket SKT 3 POS Solder ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = SolderWithout Grounding Provision RELAY SOCKET Socket,Relay;Solder;1to3;PotterandBrumfieldBrand 27E043=SOCKET,KU,11,SLG,NYL,N

¥9.1800
详情
27E046

27E046

te connectivity / p&b

Conn Relay Socket SKT 11 POS 11.1mm Solder ST Thru-Hole Relay Sockets & Hardware HARD MOUNT SOCKET PCB SOCKET PCB TERMINAL KU SERIES Conn Relay Socket SKT 11 POS 11.1mm Solder ST Thru-Hole Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = PCTerminal Length = 3.66 mm RELAY SOCKET Socket,Relay;PC;1to3;PotterandBrumfield;RoHSCompliant,ELVCompliant 27E046=SOCKET,KU,11,PC,NYL,NAT

¥10.2680
详情
27E867

27E867

te connectivity / p&b

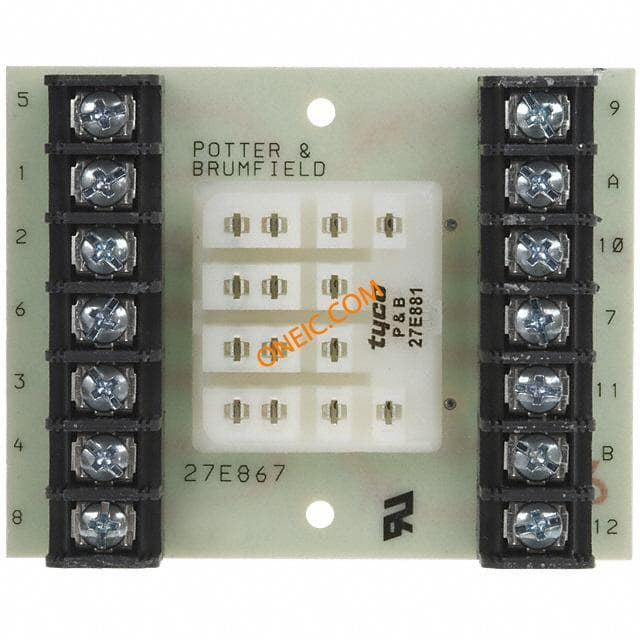

Conn Relay Socket SKT 4 POS Screw ST Panel Mount Relay Sockets & Hardware 4 POLE SCRW TRM SCKT SOCKET TERM 4P FOR KU RELAYS Conn Relay Socket SKT 4 POS Screw ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 4Terminal Type = ScrewWithout Grounding Provision RELAY SOCKET Socket,Relay;Screw;4;PotterandBrumfield;RoHSCompliant,ELVCompliant 27E867=SOCKET,KU,,ASSY,4 POLE,
