KUP-11D15-110

点击放大查看

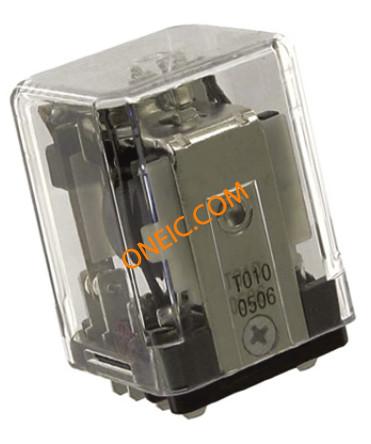

KUP-11D15-110

制造商
TE Connectivity Ltd.
描述General Purpose Relays DP PLN QC/SLDR 110DC RELAY GEN PURPOSE DPDT 10A 110V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg10A Electromechanical Relay DPDT 10A 110VDC 10KOhm Socket Electromechanical Relay DPDT 10A 110VDC 10KOhm Socket Product Highlights:KUP SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 110VDC, 10A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg10A;Ctrl-V110DC;Vol-Rtg240/28AC/DC;9Pin KUP-11D15-110=KU
分类
工业电源组件和继电器功率继电器，2安培以上专用继电器
对参数有疑问？问 AI 助手

商业参数

交货时间94 Days子类别Electromechanical Relay
零件号别名4-1393117-3产品类别General Purpose Relays
标准包装数量25工厂包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
海关税号85364900零件状态4-1393117-3

电气参数

线圈类型Monostable线圈功率1.25 W
量程（°/s）:TE - KUP Series线圈电流11 mA
释放时间10ms额定电压300VAC
线圈电阻10000 Ohms极数:2
输出电流:10A供电电压110 V
开关电压240VAC - Max最大额定电流10A
触点电压（最大）:240V平均正向功率1.2 W
集电极-发射极饱和电压（最大）@ Vge, Ic82.5 VDC触点额定电流10 A
数字供电电压:32V驱动电压（最大Rds On，最小Rds On）110VDC

机械参数

深度1.406in宽度35.7 mm
高度48.4 mm长度38.9 mm
重量0.073包装方式Tray | Box
端接方式QuickConnect触点形式2 Form C (DPDT-BM)
安装类型Socketable端子类型Quick Connect
安装样式Panel引脚数9
触头材料Silver Cadmium Oxide尺寸/外形1.532in.Lx1.406in.Wx1.907in.H
端接样式Plug In, QC - 0.187" (4.7mm)接触件端接Quick Connect
典型触点布局DPDT

产品信息

类型Ice Cube Style Relay系列KUP
产品特性Insulation - Class B功能GeneralPurpose
继电器类型General Purpose制造商全称KUPSeries
行业别名4-1393117-3, KUP-11D15-110应用细节General Purpose

环境参数

动作时间15ms工作温度-45°C ~ 70°C

文档与媒体

在线文档
KUP-11D15-110?RQPN=KUP-11D15-110
