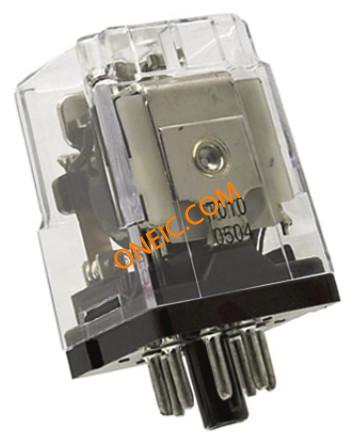

KRPA-11AG-12
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays DPDT 10A 12VAC RELAY GEN PURPOSE DPDT 10A 12V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg10A Relay;E-Mech;Gen Purp;DPDT;Cur-Rtg 10A;Ctrl-V 12AC;Vol-Rtg 120/28AC/DC;Plug-In Electromechanical Relay DPDT 10A 12VAC 24Ohm Socket Electromechanical Relay DPDT 10A 12VAC 24Ohm Socket Product Highlights:KRPA SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemInput Voltage = 12 VAC POWER RELAY, DPDT, 12VAC, 10A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg10A;Ctrl-V12AC;Vol-Rtg120/28AC/DC;Plug-In KRPA-11AG-12=KRPA |
| 分类 |
商业参数
| 交货时间 | 91 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 2-1393104-4 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL,CSA,RoHS |
| 海关税号 | 00000000 | 零件状态 | 2-1393104-4 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 2.02 VA |
| 量程（°/s） | :TE - KRPA Series | 线圈电流 | 168 mA |
| 额定电压 | 240VAC | 线圈电阻 | 24 Ohms |
| 承载电流 | :10A | 输出电流 | :10A |
| 供电电压 | 12 V | 开关电压 | 240VAC - Max |
| 最大额定电流 | 10A | 触点电压（最大） | :240V |
| 平均正向功率 | 2 VA | 集电极-发射极饱和电压（最大）@ Vge, Ic | 10.2 VAC |
| 触点额定电流 | 10A | 驱动电压（最大Rds On，最小Rds On） | 12VAC |
机械参数
| 深度 | 1.469in | 宽度 | 37.3 mm |
| 高度 | 34.9 mm | 长度 | 48.8 mm |
| 重量 | 0.077 | 包装方式 | Bulk |
| 端接方式 | Plug-In | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Socketable | 端子类型 | Plug In |
| 安装样式 | Socket | 引脚数 | 8 |
| 触头材料 | Silver Cadmium Oxide | 尺寸/外形 | 1.922in.Lx1.469in.Wx1.375in.H |
| 端接样式 | Plug In, 8 Pin (Octal) | 接触件端接 | Plug In |
| 典型触点布局 | DPDT | ||
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KRPA |
| 产品特性 | Insulation - Class B | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | KRPASeries |
| 行业别名 | 2-1393104-4, KRPA-11AG-12 | 应用细节 | General Purpose |
环境参数
| 工作温度 | -45°C ~ 55°C | ||
相关型号
2-1437683-1
te connectivity / buchanan-rdi
Individual Socket Interface Module SKT 8 POS Custom Terminal Blocks SOCKET RELAY PCB 8POS Interface Modules 8R-SOCKET=8R SOCKET 8 PIN OCTAL SCKT Individual Socket Interface Module SKT 8 POS Product Highlights:Interface Module - Terminal BlockModule Type = Individual Socket8 PositionsUsed With 8 Pin Octal RelaySearch Keywords:DIN rail, ready-to-wire, field wiring, panel mount,
2-1437683-8
TE Connectivity / AMP
Terminal Block Tools & Accessories SM8=SM8 ASSEMBLY OCTAL SCKT 8 POS Custom Terminal Blocks TERM BLOCK 8POS 22-12AWG 6-32 Octal Socket Interface Module SKT 8 POS ST Octal Socket Interface Module SKT 8 POS ST Product Highlights:Interface ModuleModule Type = Octal SocketNumber of Positions = 8SNAPTRACK Channel Series 2TK2Search Keywords:DIN rail, ready-to-wire, field wiring, panel mount, 8 Position AWG 22 - 12 Din Rail Octal Socket Assembly Surface Mount
