27E891
| 制造商 | TE Connectivity Ltd. |
| 描述 | Relay Sockets & Hardware 8P DIN RL SNP MT SKT SOCKET RELAY 8 OCTAL DIN RAIL Socket; Relay; Screw Term; DIN/Snap-Mount; 1-3 Pole; RoHS Compliant Conn Relay Socket SKT 8 POS Screw ST Panel Mount Conn Relay Socket SKT 8 POS Screw ST Panel Mount Product Highlights:SocketKRP Series, KRPA SeriesNumber of Poles = 1 through 3Terminal Type = Screw, DIN Rail Snap-MountWithout Grounding Provision RELAY BASE, PLUG-IN, 8 PIN Socket,Relay;ScrewTerm;DIN/Snap-Mount;1-3Pole;RoHSCompliant;8-PinOctal 27E891=SOCKET,KRPA,8,OCTAL,POL |
| 分类 |
商业参数
| 交货时间 | 52 Days | 子类别 | Connector Socket |
| 零件号别名 | 2-1419106-3 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 10 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85366930 | 零件状态 | 2-1419106-3 |
电气参数
| 额定电压 | :300VAC | 极数 | 1, 2, 3 |
| 最大额定电流 | :10A | ||
机械参数
| 重量 | 0.01 | 端接方式 | Screw |
| 安装类型 | DIN Rail | 端子类型 | :Screw |
| 连接器类型 | :Screw | 引脚数 | :8 |
| 端接样式 | Screw, DIN Rail | 触点数 | 8 |
| 位数 | 8 | 接线端子类型 | Screw,DINRailSnap-Mount |
产品信息
| 类型 | Socket | 系列 | KRP, KRPA |
| 制造商全称 | PotterandBrumfieldBrand | 附件类型 | Socket |
| 行业别名 | 2-1419106-3, 27E891 | 应用细节 | Indicator lamp and push-to-test options available on certain models |
| 适用产品/相关产品 | KRPA Series | ||
相关型号
2-1437463-1
te connectivity / amp
Electromechanical Relay DPDT 5A 125VDC 120VAC Socket TE Connectivity RELAY DELAY DPDT 120VAC/125VDC Electromechanical Relay DPDT 5A 125VDC 120VAC Socket Product Highlights:SCE Specification Grade True Off-Delay Timing SeriesTime Delay RelayInput Voltage = 120 VACInput Voltage = 125 VDCContact Arrangement = 2 Form C, DPDT, 2 C/OSearch Keywords:internal timer, electromechanical, solid state output, Timing modules, control, load switching, single-function timers, field-programmable
CHB-38-70021
TE Connectivity / Agastat
Time Delay & Timing Relays DPDT 120VAC 10A 1-10sec. DELAY RELAY RELAY TIME DELAY 1-10SEC 120VAC Electromechanical Relay DPDT 10A 120VAC Socket Electromechanical Relay DPDT 10A 120VAC Socket Product Highlights:CH SeriesTime Delay RelayInput Voltage = 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VAC CHB-38-70021=TIME DELAY REL
KRPA-11DY-24
TE Connectivity / P&B
General Purpose Relays DPDT 5A 24VDC RELAY GEN PURPOSE DPDT 5A 24V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg5A,Ctrl Relay;E-Mech;Gen Purp;DPDT;Cur-Rtg 5A;Ctrl-V 24DC;Vol-Rtg 120/28AC/DC;Socket Mnt Electromechanical Relay DPDT 5A 24VDC 472Ohm Socket Electromechanical Relay DPDT 5A 24VDC 472Ohm Socket Product Highlights:KRPA SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 5 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 24VDC, 5A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg5A;Ctrl-V24DC;Vol-Rtg120/28AC/DC;SocketMnt KRPA-11DY-24=KRPA
KRPA-11AY-24
TE Connectivity / P&B
General Purpose Relays DPDT 5A 24VAC RELAY GEN PURPOSE DPDT 5A 24V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg5A,Ctrl Electromechanical Relay DPDT 5A 24VAC 85Ohm Socket Electromechanical Relay DPDT 5A 24VAC 85Ohm Socket Product Highlights:KRPA SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 5 Amps.Monostable Coil Magnetic SystemInput Voltage = 24 VAC POWER RELAY, DPDT, 24VAC, 5A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg5A;Ctrl-V24AC;Vol-Rtg120/28AC/DC;SocketMnt KRPA-11AY-24=KRPA
CDD-38-30004
TE Connectivity
Time Delay & Timing Relays DPDT 10A 24VAC 0.6- 60sec.TIME DLY RELAY RELAY TIME DELAY DPDT 24 VDC 8 Electromechanical Relay DPDT 10A 24VDC Socket Electromechanical Relay DPDT 10A 24VDC Socket Product Highlights:CD SeriesTime Delay RelayInput Voltage = 24 VDCContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VAC CDD-38-30004=TIME DELAY REL
CDB-38-70003
TE Connectivity / Agastat
Time Delay & Timing Relays DLY ON 0.1-10S 120AC RELAY TIME DELAY .1-10SEC 120VAC Relay,E-Mech,Timing,OnDelay,DPDT,10A Relay;SSR;Timing;Multi-Function;DPDT;Cur-Rtg 10A;Ctrl-V 120AC;8 Pin;0.1-10 sec Electromechanical Relay DPDT 10A 120VAC Socket Electromechanical Relay DPDT 10A 120VAC Socket Product Highlights:CD SeriesTime Delay RelayInput Voltage = 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VAC TIME DELAY RELAY, DPDT, 10SEC, 120VAC Relay;E-Mech;Timing;OnDelay;DPDT;10A;Ctrl-V120AC;277VAC/30VDC;Octal;0.1-10sec CDB-38-70003=TIME DELAY REL
CHB-38-70001
TE Connectivity / Agastat
Time Delay & Timing Relays DPDT 10A 120VAC 1-10sec.DELAY RELAY RELAY TIME DELAY 1-10SEC 120VAC Relay,SSR,Timing,Multi-Function,DPDT Relay;SSR;Timing;Multi-Function;DPDT;Cur-Rtg 10A;Ctrl-V 120AC;8 Pin;1-10 sec Electromechanical Relay DPDT 10A 120VAC Socket Electromechanical Relay DPDT 10A 120VAC Socket Product Highlights:CH SeriesInput Voltage = 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VACMounting Options = Socket TIME DELAY RELAY, DPDT, 10SEC, 120VAC Relay;SSR;Timing;Multi-Function;DPDT;Cur-Rtg10A;Ctrl-V120AC;8Pin;1-10sec CHB-38-70001=TIME DELAY REL
CB-1028D-30
TE Connectivity / Agastat
Time Delay & Timing Relays CMOS 24VDC 0.1-10Sec RELAY TIME DELAY .1-10SEC 24VDC Electromechanical Relay DPDT 10A 24VDC Socket Electromechanical Relay DPDT 10A 24VDC Socket Product Highlights:CB SeriesInput Voltage = 24 VDCContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VACMounting Options = Socket TIME DELAY RELAY, DPDT, 10SEC, 24VDC CB-1028D-30=TIME DELAY REL
CB-1006B-70
TE Connectivity / Agastat
Time Delay & Timing Relays CMOS 120VAC 1-10Min RELAY TIME DELAY 1-10MIN 120VAC Electromechanical Relay DPDT 10A 120VAC Socket Electromechanical Relay DPDT 10A 120VAC Socket Product Highlights:CB SeriesTime Delay RelayInput Voltage = 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VAC TIME DELAY RELAY, DPDT, 10MIN, 120VAC CB-1006B-70=TIME DELAY REL
CHB-38-70002
TE Connectivity / P&B
Time Delay & Timing Relays DPDT 120VAC 10A 1-60sec. DELAY RELAY RELAY TIME DELAY 1-60SEC 120VAC Electromechanical Relay DPDT 10A 120VAC Socket Electromechanical Relay DPDT 10A 120VAC Socket Product Highlights:CH SeriesTime Delay RelayInput Voltage = 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VAC TIME DELAY RELAY, DPDT, 60SEC, 120VAC RELAY,TIMEDELAY,120VAC,10A,DPDT,1TO60SECONDS,8-PINOCTAL CHB-38-70002=TIME DELAY REL
CB-1011B-79
TE Connectivity / Agastat
Time Delay & Timing Relays RELAY TIME DELAY DPDT 120 VAC 8 RELAY TIME DELAY DPDT 120 VAC 8 CB-1011B-79=TIME DELAY REL
CB-1034D-39
TE Connectivity / Agastat
Time Delay & Timing Relays DPDT 10A 24VDC 0.1-5sec.DELAY RELAY RELAY TIME DELAY DPDT 24 VDC 8 Electromechanical Relay DPDT 10A 24VDC Socket Electromechanical Relay DPDT 10A 24VDC Socket Product Highlights:CB SeriesTime Delay RelayInput Voltage = 24 VDCContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VAC CB-1034D-39=TIME DELAY REL
CKB-38-70060
TE Connectivity
Time Delay & Timing Relays RELAY TIME DELAY DPDT 120 VAC 8 RELAY TIME DELAY DPDT 120 VAC 8 Electromechanical Relay DPDT 10A 120VAC 1Ohm Socket Electromechanical Relay DPDT 10A 120VAC 1Ohm Socket Product Highlights:CK SeriesInput Voltage = 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VACMounting Options = Socket CKB-38-70060=TIME DELAY REL
CHB-38-70023
TE Connectivity / Agastat
Time Delay & Timing Relays DPDT 120VAC 10A 1 180sec.TIME DLY RLY RELAY TIME DELAY DPDT 120 VAC 8 Electromechanical Relay DPDT 10A 120VAC Socket Electromechanical Relay DPDT 10A 120VAC Socket Product Highlights:CH SeriesInput Voltage = 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VACMounting Options = Socket CHB-38-70023=TIME DELAY REL
CHD-38-30001
te connectivity / p&b
Electromechanical Relay DPDT 10A 24VDC Socket Time Delay & Timing Relays 24VDC 1 - 10SEC 10AMP RELAY TIME DELAY 1-10SEC 24VDC Relay,SSR,Timing,Multi-Function,DPDT Electromechanical Relay DPDT 10A 24VDC Socket Product Highlights:CH SeriesTime Delay RelayInput Voltage = 24 VDCContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VAC TIME DELAY RELAY, DPDT, 10SEC, 24VDC Relay;SSR;Timing;Multi-Function;DPDT;Cur-Rtg10A;Ctrl-V24DC;Vol-Rtg277/30AC/DC CHD-38-30001=TIME DELAY REL

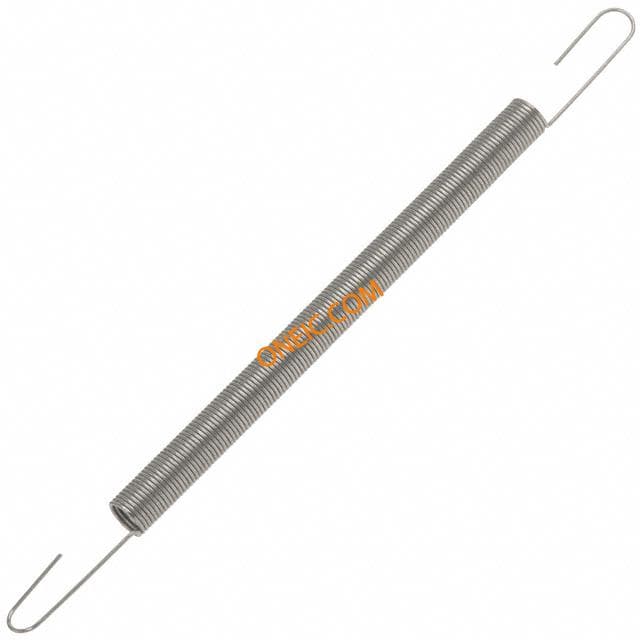

20C419
te connectivity / p&b
20C419=SPRING,HOLD-DOWN,,.025 Relay Sockets & Hardware HOLD-DOWN SPRING SPRING RELAY HOLD-DOWN RELAY SOCKET HOLD-DOWN CLIP

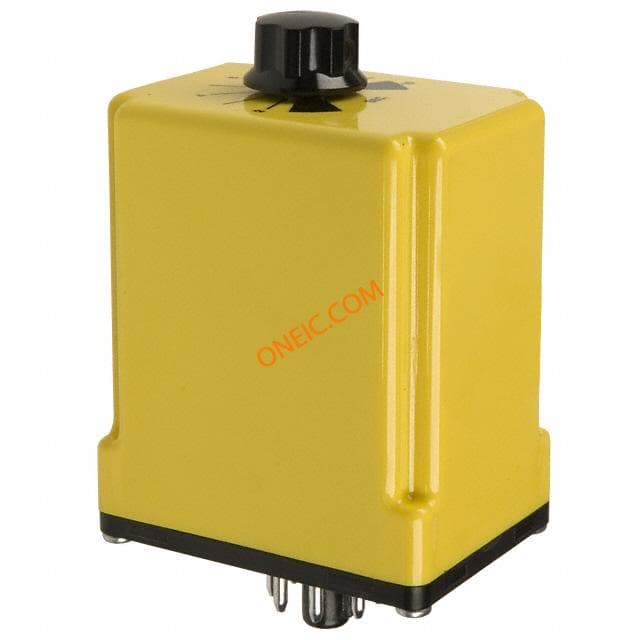

4-1393136-5
te connectivity / p&b
Electromechanical Relay DPDT 10A 120VAC Socket GPR Time Delay Relays RELAY TIME DELAY DPDT 120 VAC 8 Electromechanical Relay DPDT 10A 120VAC Socket Search Keywords:internal timer, electromechanical, solid state output, Timing modules, control, load switching, single-function timers, field-programmable
1393105-7
te connectivity / p&b
Electromechanical Relay SPDT 5A 24VDC 472Ohm Socket GPR Panel Plug-In Relays RELAY GEN PURPOSE SPDT 5A 24V Electromechanical Relay SPDT 5A 24VDC 472Ohm Socket Product Highlights:Relay Type = General PurposeRelay Style = GeneralKRPA SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 5 A

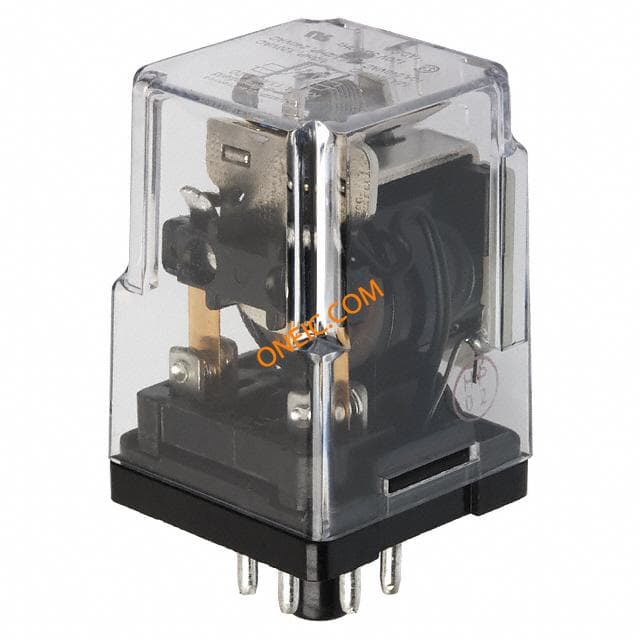

4-1393104-4
