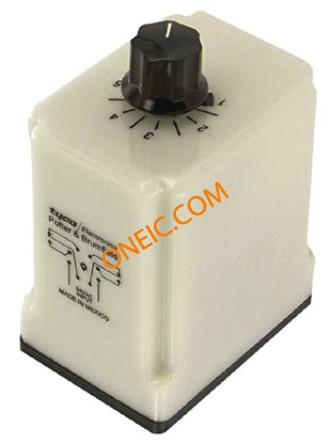

CHD-38-30001
| 制造商 | TE Connectivity Ltd. |
| 描述 | Electromechanical Relay DPDT 10A 24VDC Socket Time Delay & Timing Relays 24VDC 1 - 10SEC 10AMP RELAY TIME DELAY 1-10SEC 24VDC Relay,SSR,Timing,Multi-Function,DPDT Electromechanical Relay DPDT 10A 24VDC Socket Product Highlights:CH SeriesTime Delay RelayInput Voltage = 24 VDCContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VAC TIME DELAY RELAY, DPDT, 10SEC, 24VDC Relay;SSR;Timing;Multi-Function;DPDT;Cur-Rtg10A;Ctrl-V24DC;Vol-Rtg277/30AC/DC CHD-38-30001=TIME DELAY REL |
| 分类 |
商业参数
| 交货时间 | 84 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 1-1393137-9 | 产品类别 | Time Delay & Timing Relays |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | No | 海关税号 | 00000000 |
电气参数
| 电路 | DPDT (2 Form C) | 延迟时间 | 1 Sec ~ 10 Sec |
| 输出类型 | Mechanical Relay | 量程（°/s） | 1 s to 10 s |
| 最大电压 | 277 V ac, 30 V dc | 工作模式 | Delay on Operate |
| 额定电压 | 30 V | 开通延迟时间 | :1s |
| 功率 - 冷却 | :3W | 首抽头延迟 | :1s to 10s |
| 供电电压 | 24 V | 最大额定电流 | 10 A |
| 输入电压（最大） | :24VDC | 最小输入电压 | 277 V |
| 开关功能/额定值 | DPDT | 启动定时方式 | Input Voltage |
| 触点额定值 @ 电压 | 10 A at 30 VDC, 277 VAC | ||
机械参数
| 重量 | 0.118 | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Socket | 端子类型 | Plug |
| 触头材料 | Silver Cadmium Oxide | 端接样式 | 8 Pin Octal Plug |
| 触点数 | 8 | 典型触点布局 | DPDT |
产品信息
| 类型 | Time Delay Relay | 功能 | On-Delay |
| 继电器类型 | Integrated | 行业别名 | 1-1393137-9, CHD-38-30001 |
| 宏单元数量 | Multi Function | 其他规格 | :10s |
| 定时调节方式 | Hand Dial | ||
环境参数
| 工作范围 | 1 → 10 s | 工作温度 | -10 to 55 °C |
