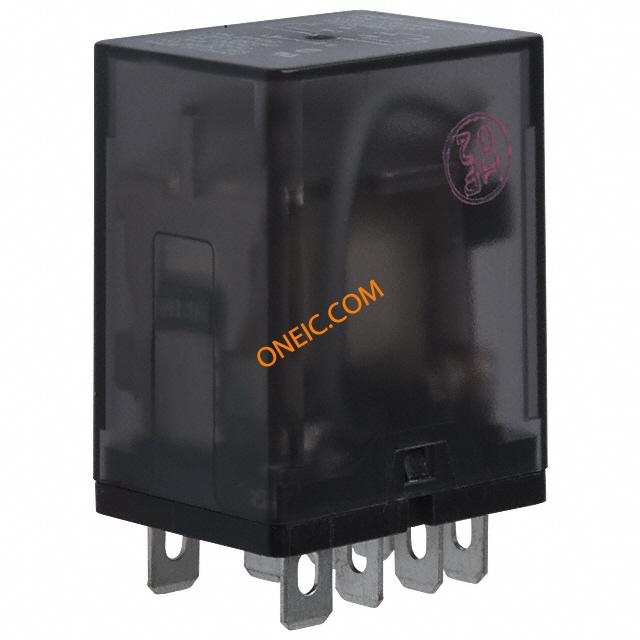

K10P-11D15-120
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays Relay DPDT 15A 120VDC Socket RELAY GEN PURPOSE DPDT 15A 120V Electromechanical Relay DPDT 15A 120VDC 11KOhm Socket Electromechanical Relay DPDT 15A 120VDC 11KOhm Socket Product Highlights:Relay Type = MiniatureRelay Style = GeneralK10 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps. K10P-11D15-120=K10/K20 |
| 分类 |
商业参数
| 其他名称 | 5-1393144-6 | 零件号别名 | 5-1393144-6 |
| 产品类别 | General Purpose Relays | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 800 – 1000 |
| 释放时间 | 10ms | 输入功率 | 900 |
| 核心电压 | 1000 – 1500 | 额定电压 | 120 |
| 线圈电阻 | 11000 Ohms | 浪涌电流 | 10 |
| 供电电压 | 120VDC | 开关电压 | 120VAC - Max |
| Vgs(th)（最大）@ Id | 12 VDC | 连接器阻抗 | 2 Form C (CO) |
| 跳闸电流 | 10 | 最大额定电流 | 10 |
| 输出1频率 | 单稳态、直流 | 额定电流（安培） | 10 – 20, 16 |
| 绝缘电阻 | 1500 | 平均正向功率 | 0.9 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 90 VDC | 触点额定电流 | 15A |
| 输出源/灌电流 | 300mA @ 12V | 初始电阻（最小） | 1000 |
| 放电电流（最大）（8/20µs） | 10 | ||
机械参数
| 宽度 | 21.8 mm | 高度 | 34.9 mm |
| 长度 | 28.2 mm | 重量 | 51 g [ 1.799 oz ] |
| 包装方式 | Bulk | 触点形式 | 2 Form C (DPDT-BM) |
| 高度（最大） | 30 – 40 | 致动器类型 | DC |
| 安装类型 | Socketable | 安装样式 | Socket |
| 触头材料 | Silver Cadmium Oxide | 端接样式 | Plug In, QC - 0.187" (4.7mm) |
| 触点数 | 2 | 初级绕组 | UL 线圈绝缘类 B |
| 介电材料 | 1500 | 宽度/横截面 | 20 – 25 |
| 第一连接器安装类型 | 插座 | ||
产品信息
| 类型 | Ice Cube Style Relay | 系列 | K10 |
| 产品特性 | Insulation - Class B | 继电器类型 | General Purpose |
环境参数
| 动作时间 | 13ms | 防护等级 | RTI |
| 工作温度 | -45°C ~ 70°C | 初始介电强度 | 1000 |
文档与媒体
