点击放大查看

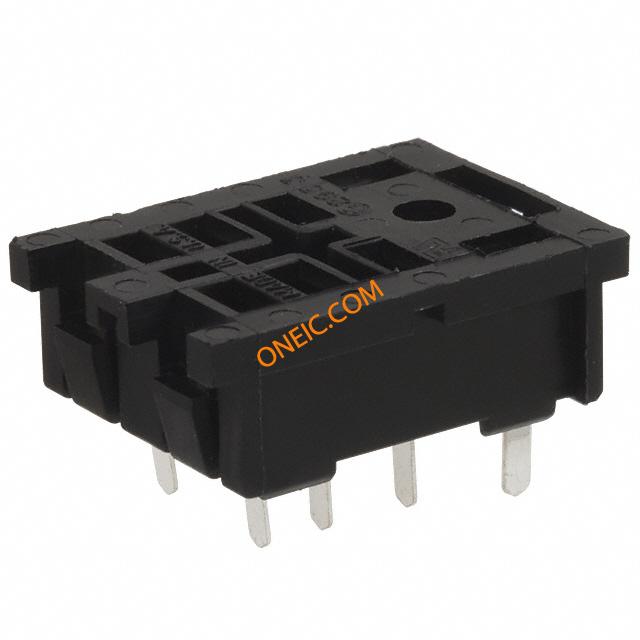

27E489
| 制造商 | TE Connectivity Ltd. |
| 描述 | Relay Sockets & Hardware 2 POLE PCB SOCKET SOCKET RELAY PC MNT FOR K10 SER Conn Relay Socket SKT 8 POS Solder ST Thru-Hole Conn Relay Socket SKT 8 POS Solder ST Thru-Hole Product Highlights:SocketK10 SeriesNumber of Poles = 2Terminal Type = PCWithout Grounding Provision RELAY SOCKET Socket,Relay;PC;2;PotterandBrumfield;RoHSCompliant,ELVCompliant 27E489=SOCKET,K10,8,QC.187,NYL |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Socket |
| 零件号别名 | 2-1419106-1 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85364110 | 零件状态 | 2-1419106-1 |
电气参数
| 额定电压 | :120VAC | 极数 | 2 |
| 最大额定电流 | :15A | ||
机械参数
| 重量 | 0.005 | 端接方式 | PCBPins |
| 安装类型 | Through Hole | 连接器类型 | :Through Hole |
| 引脚数 | :8 | 端接样式 | PCB |
| 触点数 | :8 | 接触件端接 | :Through Hole Vertical |
| 位数 | 8 | 接线端子类型 | PC |
产品信息
| 类型 | Socket | 系列 | K10 |
| 制造商全称 | PotterandBrumfieldBrand | 附件类型 | Socket |
| 行业别名 | 2-1419106-1, 27E489 | 应用细节 | UL Class B coil insulation system |
| 适用产品/相关产品 | K10 Series | ||
文档与媒体
相关型号
K10L-11A15-120
TE Connectivity
General Purpose Relays 15A GENERAL PURPOSE MINIATURE RELAY RELAY GEN PURPOSE DPDT 15A 120V Electromechanical Relay DPDT 15A 120VAC 3.9KOhm Socket K10L-11A15-120=K10/K20
K10P-11D15-24
TE Connectivity / P&B
General Purpose Relays DPDT SOCKET MT 24VDC RELAY GEN PURPOSE DPDT 15A 24V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg15A Electromechanical Relay DPDT 15A 24VDC 650Ohm Socket Electromechanical Relay DPDT 15A 24VDC 650Ohm Socket Product Highlights:K10 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode PLUG-IN RELAY, CONTACTS DPDT Relay;E-Mech;GenPurp;DPDT;Cur-Rtg15A;Ctrl-V24DC;Vol-Rtg120/30AC/DC;6Pin TE Connectivity 双刀双掷 插入式 非闭锁继电器, 24V K10P-11D15-24=K10/K20
K10P-11D15-6
TE Connectivity / P&B
General Purpose Relays DPDT SOCKET MT 6VDC RELAY GEN PURPOSE DPDT 15A 6V Electromechanical Relay DPDT 15A 6VDC 40Ohm Socket Electromechanical Relay DPDT 15A 6VDC 40Ohm Socket Product Highlights:K10 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 6VDC, 15A, PLUG IN RELAY,MONOSTABLEMAGNETICCOILSYSTEM,15A,2FORMC,DPDT,2C/O K10P-11D15-6=K10/K20

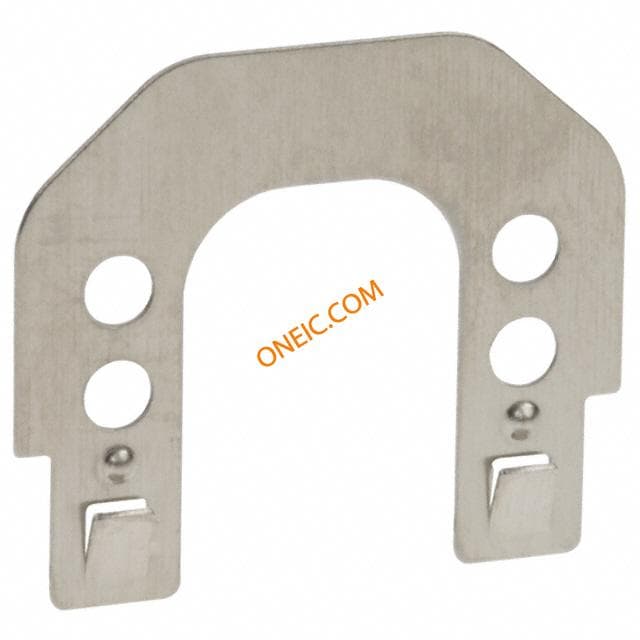

20C317
TE Connectivity
Relay Sockets & Hardware Anchor Clip For Relay Socket ANCHOR CLIP FOR 20C318 Connector Accessories Anchor Clip For Relay Socket
K10P-11A15-120
TE Connectivity / P&B
General Purpose Relays DPDT SCKT MT 120VAC RELAY GEN PURPOSE DPDT 15A 120V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg15A Electromechanical Relay DPDT 15A 120VAC 3.9KOhm Socket Electromechanical Relay DPDT 15A 120VAC 3.9KOhm Socket Product Highlights:K10 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemInput Voltage = 120 VAC POWER RELAY, DPDT, 120VAC, 15A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg15A;Ctrl-V120AC;Vol-Rtg120/30AC/DC;6Pin TE Connectivity 双刀双掷 插入式 非闭锁继电器, 120V K10P-11A15-120=K10/K20
K10P-11A15-12
TE Connectivity / P&B
General Purpose Relays DPDT SOCKET MT 12VAC RELAY GEN PURPOSE DPDT 15A 12V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg15A Electromechanical Relay DPDT 15A 12VAC 43Ohm Socket Electromechanical Relay DPDT 15A 12VAC 43Ohm Socket Product Highlights:K10 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemInput Voltage = 12 VAC POWER RELAY, DPDT, 12VAC, 15A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg15A;Ctrl-V12AC;Vol-Rtg120/30AC/DC;6Pin K10P-11A15-12=K10/K20
K10P-11A15-6
TE Connectivity / P&B
General Purpose Relays DPDT SOCKET MT 6VAC RELAY GEN PURPOSE DPDT 15A 6V POWER RELAY, DPDT, 6VAC, 15A, PLUG IN RELAY,MONOSTABLEMAGNETICCOILSYSTEM,15A,6VAC,2FORMC,DPDT,2C/O K10P-11A15-6=K10/K20
K10P-11A15-240
TE Connectivity / P&B
General Purpose Relays DPDT 15Amp Mini RELAY GEN PURPOSE DPDT 15A 240V Electromechanical Relay DPDT 15A 240VAC 12KOhm Socket Electromechanical Relay DPDT 15A 240VAC 12KOhm Socket Product Highlights:K10 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemInput Voltage = 240 VAC POWER RELAY, DPDT, 240VAC, 15A, PLUG IN Relay;E-Mech;GenPurp;Cur-Rtg10A;Ctrl-V240AC;2Pole TE Connectivity 双刀双掷 插入式 非闭锁继电器, 15 A, 240V ac K10P-11A15-240=K10/K20
K10P-11D15-110
TE Connectivity / P&B
General Purpose Relays DPDT SOCKET MT 110DC RELAY GEN PURPOSE DPDT 15A 110V RELAY, MONOSTABLE MAGNETIC COIL SYSTEM Electromechanical Relay DPDT 15A 110VDC 11KOhm Socket Electromechanical Relay DPDT 15A 110VDC 11KOhm Socket Product Highlights:K10 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 110VDC, 15A, PLUG IN RELAY,MONOSTABLEMAGNETICCOILSYSTEM,15A,2FORMC,DPDT,2C/O K10P-11D15-110=K10/K20
70-402-1
Magnecraft / Schneider Electric
Relay Sockets & Hardware PCB Mount Socket 8-Pin, PCB Term Socket; 10 A (Nom.); 300 V (Nom.); 8; 1500 V (RMS); PCB Mount; Light Gray Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET

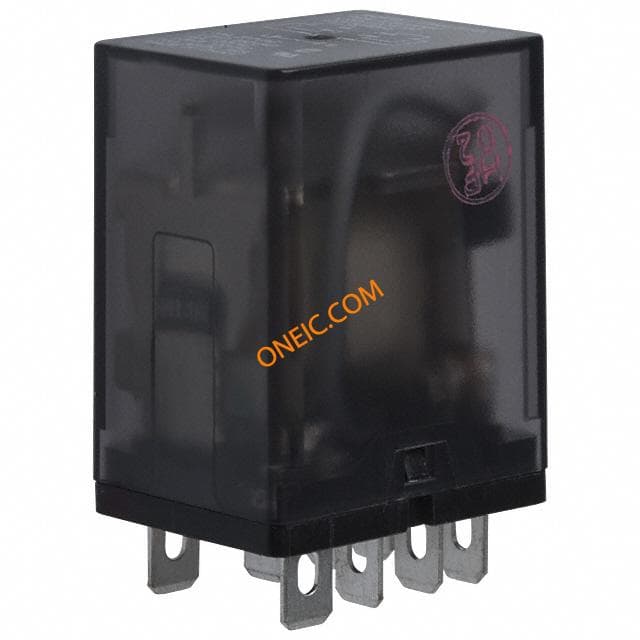

K10P-11D15-120
