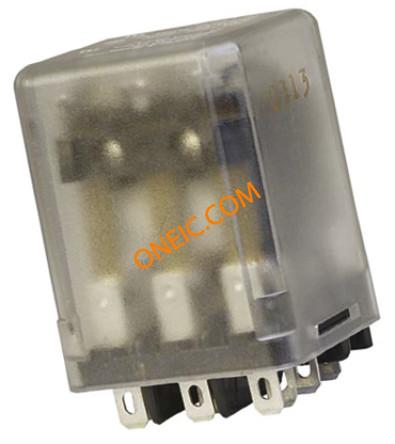

KUP-14A15-120

点击放大查看

KUP-14A15-120

制造商
TE Connectivity Ltd.
描述Electromechanical Relay 3PDT 10A 120VAC 1.7KOhm Socket General Purpose Relays 3PDT PLAIN 120VAC RELAY GEN PURPOSE 3PDT 10A 120V Relay,E-Mech,GenPurp,3PDT,Cur-Rtg10A Electromechanical Relay 3PDT 10A 120VAC 1.7KOhm Socket Product Highlights:KUP SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemInput Voltage = 120 VAC RELAY, PLUG-IN, 3PDT, 120VAC Relay;E-Mech;GenPurp;3PDT;Cur-Rtg10A;Ctrl-V120AC;Vol-Rtg120/28AC/DC;11Pin TE Connectivity 3 刀双掷 DIN Rail 非闭锁继电器, 120V ac KUP-14A15-120=KU-
分类
电容器薄膜电容器金属化聚丙烯薄膜电容器
对参数有疑问？问 AI 助手

商业参数

交货时间94 Days子类别Electromechanical Relay
零件号别名7-1393117-8产品类别General Purpose Relays
标准包装数量Bulk工厂包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
海关税号85364110零件状态7-1393117-8

电气参数

线圈类型Monostable线圈功率2.9 VA
量程（°/s）:TE - KUP Series线圈电流24 mA
释放时间10ms核心电压:240V
额定电压32 V线圈电阻1.7 KOhm
极数:3输出电流:10A
供电电压120 V开关电压240VAC - Max
最大额定电流10 A触点电压（最大）:240V
最大触点电流:10A最小输入电压240 V
平均正向功率2.7 VA集电极-发射极饱和电压（最大）@ Vge, Ic102 VAC
触点额定电流10A供电电压 (Vcc/Vdd):28V
驱动电压（最大Rds On，最小Rds On）120VAC额定交流电压（相对地/中性线）:240V

机械参数

深度1.406in宽度35.7 mm
高度48.4 mm长度38.9 mm
重量0.01包装方式Tray | Box
端接方式QuickConnect触点形式3 Form C (3PDT-BM)
高度（最大）:48.4mm安装类型Socket
端子类型Quick Connect安装样式Panel
引脚数11触头材料Silver Cadmium Oxide
尺寸/外形1.532in.Lx1.406in.Wx1.907in.H端接样式Plug In, QC - 0.187" (4.7mm)
接触件端接Quick Connect典型触点布局3PDT

产品信息

类型Industrial Relay系列KUP
产品特性Insulation - Class B功能GeneralPurpose
继电器类型General Purpose制造商全称KUPSeries
行业别名7-1393117-8, KUP-14A15-120应用细节General Purpose

环境参数

动作时间15ms工作温度-45 to 45 °C
