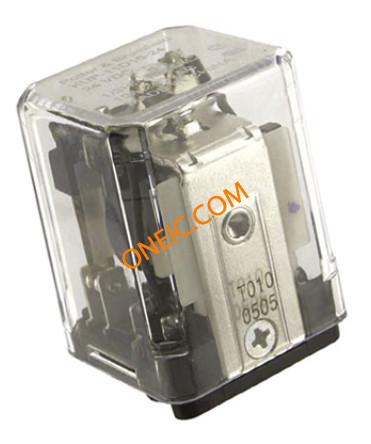

KUP-11D15-24

点击放大查看

KUP-11D15-24

制造商
TE Connectivity Ltd.
描述Electromechanical Relay DPDT 10A 24VDC 472Ohm Socket General Purpose Relays DP PLN QC/SLDR 24VDC RELAY GEN PURPOSE DPDT 10A 24V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg10A Electromechanical Relay DPDT 10A 24VDC 472Ohm Socket Product Highlights:KUP SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 24VDC, 10A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg10A;Ctrl-V24DC;Vol-Rtg240/28AC/DC;9Pin KUP-11D15-24=KU
分类
电容器薄膜电容器金属化聚丙烯薄膜电容器
对参数有疑问？问 AI 助手

商业参数

交货时间94 Days子类别Electromechanical Relay
零件号别名4-1393117-5产品类别General Purpose Relays
标准包装数量Bulk工厂包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
海关税号85364110零件状态4-1393117-5

电气参数

线圈类型Monostable线圈功率1.25 W
量程（°/s）:TE - KUP Series线圈电流51 mA
释放时间10ms额定电压32 V
线圈电阻472 Ohm承载电流:10A
输出电流:10A供电电压24 V
开关电压240VAC - Max最大额定电流10 A
触点电压（最大）:240V最小输入电压240 V
平均正向功率1.2 W集电极-发射极饱和电压（最大）@ Vge, Ic18 VDC
触点额定电流10A数字供电电压:32V
驱动电压（最大Rds On，最小Rds On）24VDC

机械参数

深度1.406in宽度35.7 mm
高度48.4 mm长度38.9 mm
重量0.073包装方式Tray | Box
端接方式QuickConnect触点形式2 Form C (DPDT-BM)
安装类型Socket端子类型Quick Connect
安装样式Panel引脚数9
触头材料Silver Cadmium Oxide尺寸/外形1.532in.Lx1.406in.Wx1.907in.H
端接样式Plug In, QC - 0.187" (4.7mm)接触件端接Quick Connect
典型触点布局DPDT

产品信息

类型Industrial Relay系列KUP
产品特性Insulation - Class B功能GeneralPurpose
继电器类型General Purpose制造商全称KUPSeries
行业别名4-1393117-5, KUP-11D15-24应用细节General Purpose

环境参数

动作时间15ms工作温度-45 to 70 °C
