9-1393117-4
| 制造商 | CELEM |
| 描述 | Electromechanical Relay 3PDT 10A 120VAC 1.7KOhm Socket RELAY GEN PURPOSE 3PDT 10A 120V Electromechanical Relay 3PDT 10A 120VAC 1.7KOhm Socket Product Highlights:KUP SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemInput Voltage = 120 VAC |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 2.9 VA |
| 线圈电流 | 24 mA | 释放时间 | 10ms |
| 释放范围（时间） | 10ms | 额定电压 | 32 V |
| 线圈电阻 | 1.7 KOhm | 供电电压 | 120 V |
| 开关电压 | 240VAC - Max | 最大额定电流 | 10 A |
| 最小输入电压 | 240 V | 集电极-发射极饱和电压（最大）@ Vge, Ic | 102 VAC |
| 触点额定电流 | 10A | 触点额定值 @ 电压 | 10A |
机械参数
| 包装方式 | Bulk | 触点形式 | 3PDT (3 Form C) |
| 触点形状 | 3PDT (3 Form C) | 安装类型 | Socket |
| 操作力 | 15ms | 触头材料 | Silver Cadmium Oxide |
| 端接样式 | Plug In, QC - 0.187" (4.7mm) | 典型触点布局 | 3PDT |
产品信息
| 类型 | Industrial Relay | 系列 | KUP, Potter & Brumfield |
| 产品特性 | Incandescent Indicator, Test Button | 继电器类型 | General Purpose |
环境参数
| 动作时间 | 15ms | 工作温度 | -45 to 45 °C |
相关型号

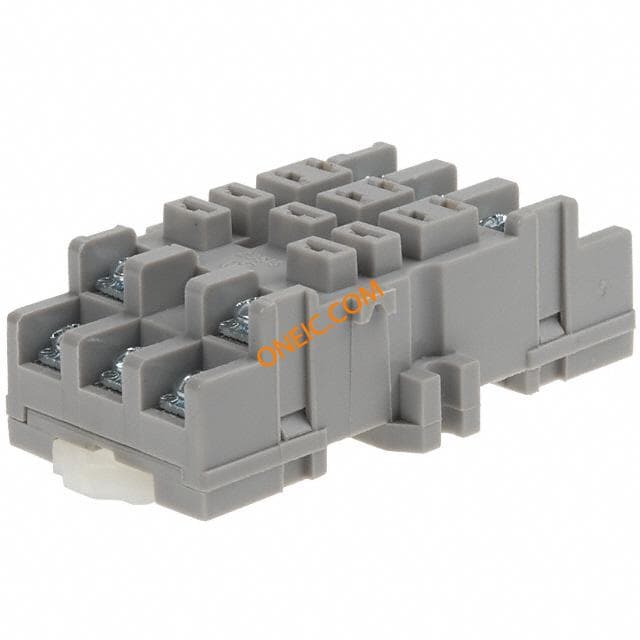

2-1419106-5
te connectivity / p&b
Conn Relay Socket SKT 11 POS Screw ST Panel Mount 27E893 SOCKET RELAY DIN RAIL MNT KU Conn Relay Socket SKT 11 POS Screw ST Panel Mount Product Highlights:SocketKU SeriesNumber of Poles = 1 through 3Terminal Type = ScrewWithout Grounding ProvisionSearch Keywords:relay connectors
1-1437683-7
te connectivity / amp
Interface Module 11 POS Terminal Block Interface Modules 608BS=ASSEMBLY Custom Terminal Blocks CONN INTERFACE MOD 11PS 14-22AWG Square Socket Interface Module SKT 11 POS Square Socket Interface Module SKT 11 POS Product Highlights:Interface Module - Terminal BlockModule Type = Square Socket11 PositionsUsed With 3PDT RelaySNAPTRACK Channel Series TK [2D]Search Keywords:DIN rail, ready-to-wire, field wiring, panel mount,

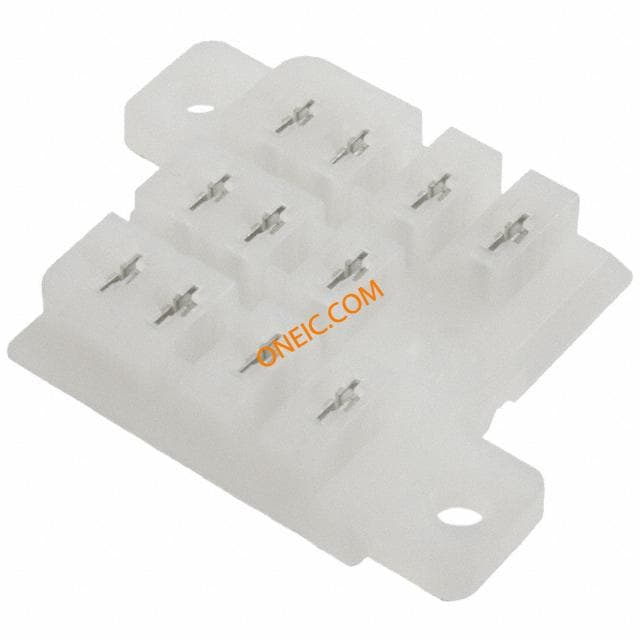

27E305
