点击放大查看

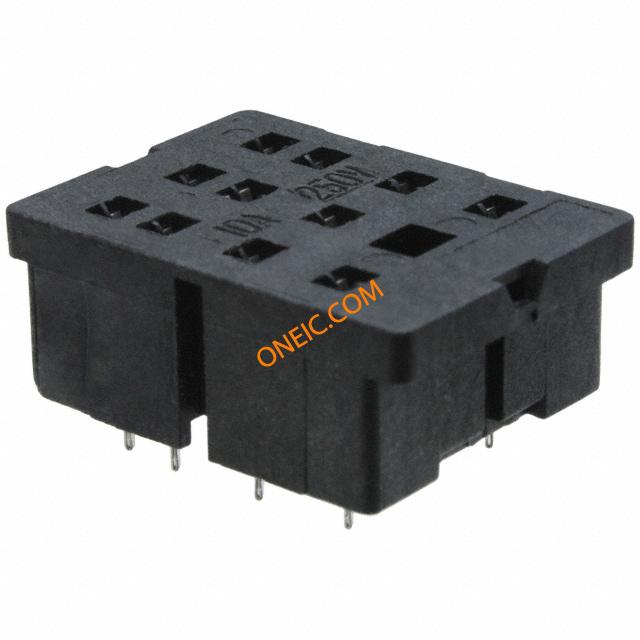

1393162-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | PT78603 Relay Sockets & Hardware PT78603 GPR Panel Plug-In Relays SOCKET 3 POLE PCB PT Conn Relay Socket SKT 3 POS Solder ST Thru-Hole Conn Relay Socket SKT 3 POS Solder ST Thru-Hole Search Keywords:relay connectors |
| 分类 |
商业参数
| 产品类别 | Relay Sockets & Hardware | 标准包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | ||
电气参数
| 极数 | 3 | ||
机械参数
| 安装类型 | Through Hole | 引脚数 | 15.0 |
| 连接器 - 电缆 | PC | 端接样式 | PC Pin |
| 位数 | 11 | 端接长度 | 5.0 |
产品信息
| 类型 | Socket | 系列 | PT |
| 插座类型 | Printed Circuit Board | 制造商全称 | Schrack |
| 产品子类型 | Socket | 适用产品/相关产品 | PT, PTH and KHA Series |
