点击放大查看

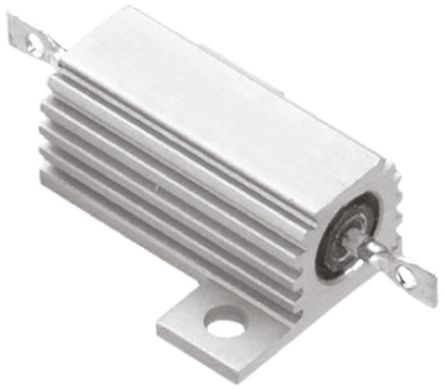

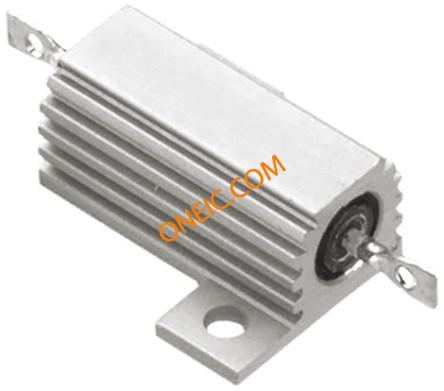

THS25150RJ
| 制造商 | TE Connectivity Ltd. |
| 描述 | Wirewound Resistors - Chassis Mount 150 Ohms 25W 30PPM 150Ω ±5% 25W TE Connectivity Aluminium Housed Solder Lug Wire-wound Panel Mount Resistor Wirewound Resistors 150 Ohms 25W 30PPM RESISTOR, AL CLAD, 25W 150R 5% Wirewoundresistoraluminium25W150R TE Connectivity THS25 系列 150Ω ±5% 25W 绕线 线绕固定电阻器, 焊片接端, 铝壳封装 THS25 150R 5% |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Power Resistors Wirewound Aluminum Housed | 零件号别名 | 4-1879075-0 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85331000 |
电气参数
| 容差 | 5 % | 电阻 | 150 Ohms |
| 量程（°/s） | :TE CONNECTIVITY - THS Series | 额定功率 | 25 W |
| 额定电压 | 550 V | 工作电压 | :550V |
| 介电强度 | :2500V | 电阻公差 | :± 5% |
| 绝缘电阻 | :10000Mohm | ||
机械参数
| 宽度 | 28 mm | 长度 | :15mm |
| 重量 | 0.012 | 底座类型 | :Axial Leaded |
| 端接方式 | SolderLug | 引脚数 | :2 |
| 封装形式 | Aluminium Housed | 总长度 | :29mm |
| 刀片材料 | Wirewound | 尺寸/外形 | 28 mm W x 29 mm L x 15 mm H |
| 端接样式 | Solder Lug | 引线长度 | :10mm |
| 电阻材料 | :Wirewound | 安装孔直径 | :3.3mm |
产品信息
| 类型 | Aluminium Housed Power Resistors | 系列 | THS |
| 技术 | Wire Wound | ||
环境参数
| 工作温度 | - 55 C to + 275 C | 温度系数 | 30 PPM / C |
| 典型温度系数 | -30ppm/°C | ||
文档与媒体
PDF 文档
